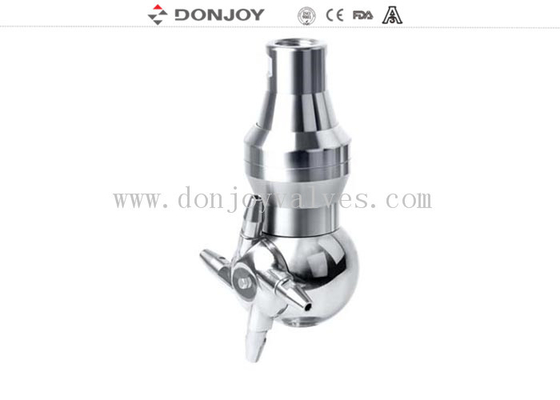

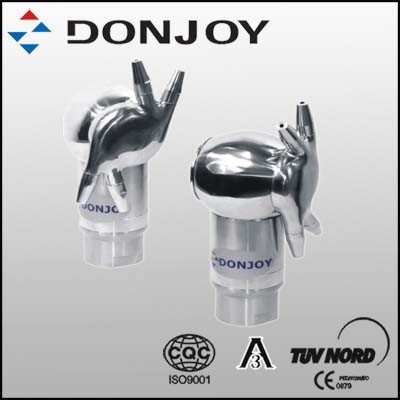

1.5" BSP Thread Connection Tank Cleaning Heads 360° Inject CIP Spray Balls

1.5" BSP Thread Connection Tank Cleaning Heads 360° Inject CIP Spray Balls

1.5" BSP Thread Connection Tank Cleaning Heads 360° Inject CIP Spray Balls

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $8 per piece
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 3000 pcs per month
Contact Now
Detailed Product Description
SIZE: 1",1.5" Brand: DONJOY
Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread
Polished: Mirror, Matt Material: Stainless Steel
High Light:

stainless steel spray ball

,

spray ball for tank cleaning



1.5" BSP Thread Connection Tank Cleaning Heads 360° Inject CIP Spray Balls



Quick Detail

Cleaning Ball

Nozzle Size:4mm,5mm, 6mm,7mm,8mm

Connection: 1",1.5",2" BSP or NPT Thread,Clamp

Materials : 1.4404 ( SS316L)



Specification



Product Name:

rotary jet head 360°,inject, Tank cleaner, 1.5" BSP Thread connection

Material:

SUS304/316L;PTFE

Flow:

4-45m³/h

Inlet Pressure:

4-10 bar

Suggest Pressure:

6 bar

Availably  size:

1.5"-DN40

Connection way:

thread BSP,clamp

Max temperature:

  95°C

Max environment temperature:

140°C

Application Scope:

Widely used  in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage

Typical application:

process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding

Advantages:

Self-cleaning; low liquid consumption; heath design

Typical cleaning methods:

fixed installation CIP system

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.


























































Typical Application



1.Fixedinstallaiton CIP System

2.Process Containers and reator

3.Store tank

4.Transport tank equipment

5.Fermentation

6.Yeast Breeding



Operating Principle



1.      Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

2.      Rotary injector with unique self cleaning funciton, internal is completely cleaning.





Technical Parament



1. Flow: 4-45T/H

2.Inelet Pressure:4-10Bar

3.Suggest Temperature: 95 Degree

4.Connection: BSP,1.5"-DN40

5.Gasket Materials: PTFE

6.Lubrication: Cleaning Medium



Common application:



  • Cleaning tanker trucks
  • Cleaning rail cars
  • Cleaning petrochemical reactors
  • Cleaning residues from chemical tanks
  • Cleaning sewage tanks
  • Cleaning silt from water supply tanks
  • Cleaning pharmaceutical tanks
  • Cleaning food processing tanks
  • Cleaning pulp storage/processing tanks
  • Cleaning blenders
  • Cleaning storage tanks



Perfomance Curve

1.5" BSP Thread Connection Tank Cleaning Heads 360° Inject CIP Spray Balls 0

FAQ



1,How to pay?
We accept the payment via ESCROW, T/T (bank transfer) and Western Union, please inquire us about the details in advance.

2,How long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 7-14 working days.

3, How to Deliver?
By air, by sea or by express(Fedex, DHL, UPS, TNT etc)



If you need anything more detail, please do not hesitate to contact us.
