    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.VQYS30S1-02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN CASE, CARTONS
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 1/2" G
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread
    Polished: Mirror, Matt
    High Light:

    Level Gauge Sampling Valve

    ,

    Donjoy Stainless Steel Sampling Valve

    ,

    Hose Adaptor Sampling Valve

    Donjoy Stainless steel level gauge with samping valve with hose adaptor







    Specification

    Product Name:

    Donjoy Stainless steel level gauge with samping valve with hose adaptor

    Material:

    AISI304, AISI316L

    Size:

    1/2"G

    Finish:

    Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

    Connection:

    Thread

    Standard:

    DIN,3A,SMS,ISO

    Certificate:

    CE, ISO9001/2015, 3A

    Application scope:

    Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc

    Packaging Details:

    Shrink wrapped - carton - pallet . Or as per the request of customers



    Technical information

    Max pressure: 10bar /145psi

    Min Pressure: Vacuum

    Tempreture : -10°c to 120 °C

    Seal Materials: PTFE

    Boy materials: AISI304/ AISI316L



    Application :

    The lever gauge is mainly applied to the tank equipment. The two same guagues or two different gauges are assembled on odserved and the sample can be extracted.

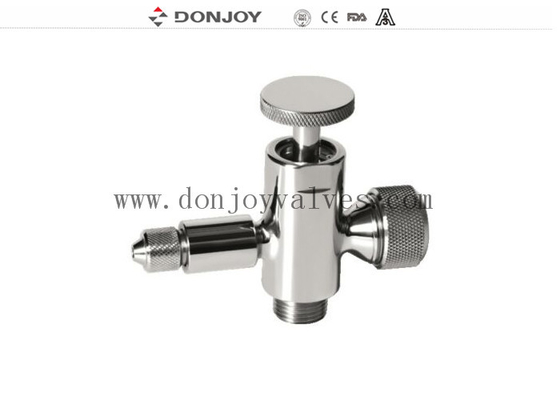

    Donjoy Stainless Steel Level Gauge Sampling Valve With Hose Adaptor 0



    Drawing

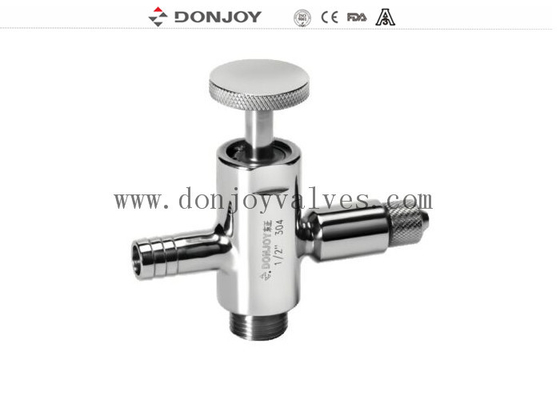

    Donjoy Stainless Steel Level Gauge Sampling Valve With Hose Adaptor 1
