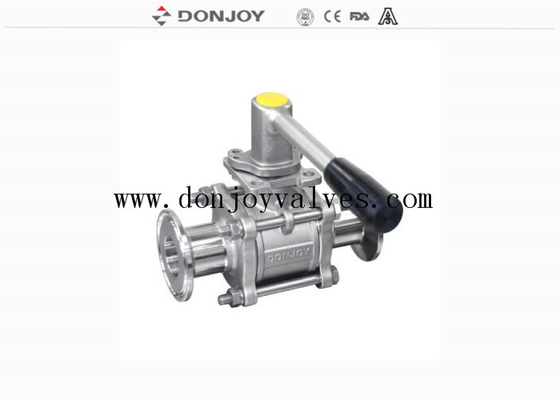

Pharmaceutical DN25 Non Retention Sanitary Ball Valve

Pharmaceutical DN25 Non Retention Sanitary Ball Valve

    • Pharmaceutical DN25 Non Retention Sanitary Ball Valve
    • Pharmaceutical DN25 Non Retention Sanitary Ball Valve
  • Pharmaceutical DN25 Non Retention Sanitary Ball Valve

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQW110S1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Ball Valve Size Of Panel: DN25-DN100
    Operation: Pneumatic, Control Head,Manual Media: 304/316L
    Connection: Welded, Clamped, Thread, Flange Standard Or Nostandard: Standard
    High Light:

    Non Retention Sanitary Ball Valve

    ,

    Pharmaceutical Sanitary Ball Valve

    ,

    DN25 Sanitary Ball Valve

    3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food and beverage

    Description:
    Type of Non-rentention ball valve

    1. Pneumatic three-piece mon-retention ball valve

    2. Pneumatic three-piece mon-retention ball valve with positioner

    3. Pneumatic three-piece mon-retention ball valve with C-TOP

    4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP

    5. Pneumatic three-piece mon-retention ball valve With Electric actuator

    6. Aluminum acuator with positioner
    Specification

    Product Name: 3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10 Bar
    Max. Working Temperature: 150 degree C
    Availably size: DN25-DN100 or 1" - 4"
    Availably connection: Weld,Clamp,Thread, Flange
    Availably standard: DIN,SMS,3A
    Ball Type: Directly
    Operated: Manual,Pneumatic,Electric,control Head
    Certificate: FDA,CE,3A,ISO

     Advantage:
    Small Turque
    FDA certificate for the Gasket
    Easy Cleaning
    Full Port Ball



    Applications:
    The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires


    Technical Feature
    All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,


    Torque Information:

    SIZE 1/2”-3/4” DN25/1” DN32/11/4” DN40/1.5” DN50/2” DN65/2.5” 3” DN100/4”
    Nm 6 10 12 14 20 40 75 110





    Relate Ball valve
     Pharmaceutical DN25 Non Retention Sanitary Ball Valve 0

    Drawing
    Pharmaceutical DN25 Non Retention Sanitary Ball Valve 1

    Curve
    Pharmaceutical DN25 Non Retention Sanitary Ball Valve 2

    Competitive Advantage:

    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
