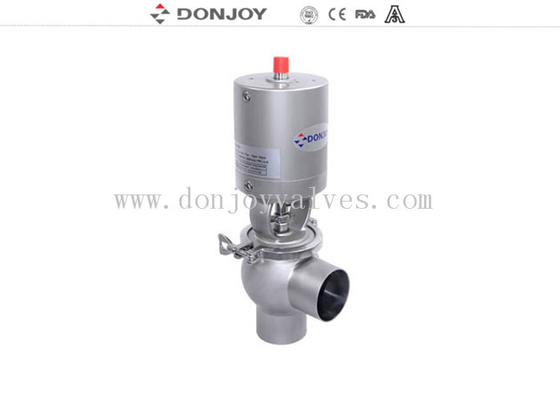

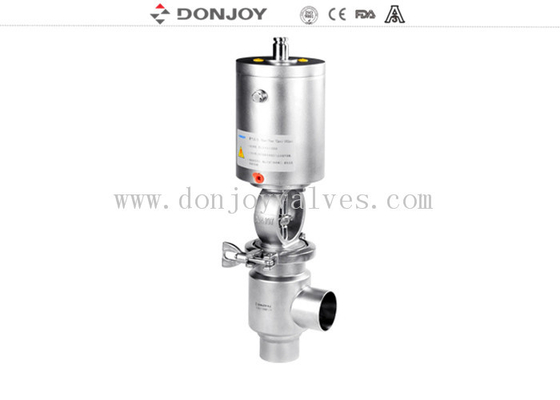

Sanitary Single Seated Control Valve Pneumatic Operated

Sanitary Single Seated Control Valve Pneumatic Operated

    • Sanitary Single Seated Control Valve Pneumatic Operated
    • Sanitary Single Seated Control Valve Pneumatic Operated
  • Sanitary Single Seated Control Valve Pneumatic Operated

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: 20 Type

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Delivery Time: according to order
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 1000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Material: SS304 / 316L Media: Water Etc.
    Operate Mode: Pneumatic Size: DN25 - DN150 Or 1" - 6"
    Pressure: Medium Pressure Valve Seat: Single Seat
    Structure: With Pneumatic Actuator Surface Finish: Sandblast Or Mirror Polishing
    High Light:

    Sanitary Single Seated Control Valve

    ,

    Pneumatic Operated Single Seated Control Valve

    ,

    DN150 Single Seated Control Valve

    Single Seated Control Valve, Sanitary Design, Pneumatic Operated



    ★★SPECIFICATION:



    Item Stainless Steel Pneumatic Divert Seat Reversing Valve
    Size DN25-DN100,1"-4"
    Working temperature -10ºC to 120ºC EPDM, (140ºC for SIP,max 30min)
    Working pressure 10 bar, 145 psi
    Compressed air pressure 5.0-7.0 bar
    Air connection G1/8" (BSP)
    Internal surface finish Ra<0.8um
    External surface finish Sandbalst or mirror polish
    Material AISI316L/AISI304
    Gasket (standard) EPDM in compliance with FDA 177.2600
    Gasket (option) FPM in compliance with FDA 177.2600
    Connections DIN, SMS, RJT, IDF
    Normal pneumatic operation Single acting pneumatic actuator
    Optional pneumatic operation Double acting pneumatic actuator
    Option 2 External position sensor
    Option 3 Steam barrier (if shaft sterilisation is required)
    Option 4 Body jacket insulation
    Option 5 Valve position regulator
    Option 6 Double stop actuator
    Option 7 Diaphragm type valve cavity
    Option 8 C-TOP control unit.



    Application

    ● pneumatic divert seat valve with control unit is a hygienic single seat pneumatically operated valve which has been widely used in the food processing industry, beverage production of pharmaceutical and fine chemical industries.
    ● The seat valve automatically operated by a single or double acting pneumatic actuators with compressed air to push the shaft to locate the valve open or closed position.
    ● single-acting cylinder actuators rotate 180 degrees to achieve a valve normally open and normally closed.

    Technical specifications

    ● Size: DN25 / 1 "to DN100 / 4"
    ● Temperature: 130 ℃
    ● Pressure: 10bar
    ● air supply: 4-7bar
    ● Material: ASTM 304 / 1.4301,316L / 1.4404
    ● Seal: EPDM, FPM, HNBR, FDA177.2600
    ● Processing: Ra <0.8μm
    ● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600
    Control unit:
    ● Power: DC 24V ± 10%
    ● Single acting (standard), double acting (option)
    ● Self-tuning Valve position feedback function
    ● Supports analog signal (4-20mA) & electrical (DC24V) Output
    ● Support for AS-I BUS
    ● Supports manual and automatic operation

    Design Features

    ● Unique design, sterile, no dead angle
    ● Compact and robust design, 360° adjustable body.
    ● Normally closed (NC) as the default, the NC and NO function are interchangeable by rotating 180° of the cylinder.
    ● Easy assembly/disassembly by loosening clamp in middle of the valve body
    ● Hygienic design according to 3A standard
    ● Manual handwheel, pneumatic actuator are interchangeable.
    ● A wide selection of different body combinations.
    ● 100% hydraulic tested / 100% inspected



    Drawing

    Sanitary Single Seated Control Valve Pneumatic Operated 0

    Sanitary Single Seated Control Valve Pneumatic Operated 1

    Function Choose

    Sanitary Single Seated Control Valve Pneumatic Operated 2

    Sanitary Single Seated Control Valve Pneumatic Operated 3



    Conbine of the valve body

    Sanitary Single Seated Control Valve Pneumatic Operated 4

    Sanitary Single Seated Control Valve Pneumatic Operated 5

    Sanitary Single Seated Control Valve Pneumatic Operated 6

    Sanitary Single Seated Control Valve Pneumatic Operated 7



    If you need more information please contact us directly
