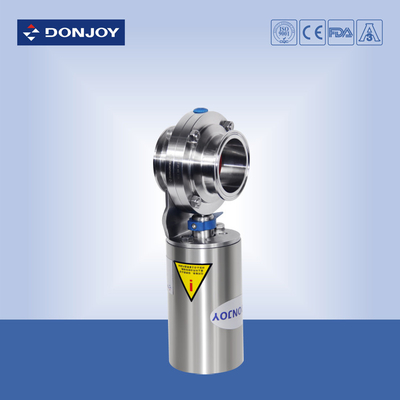

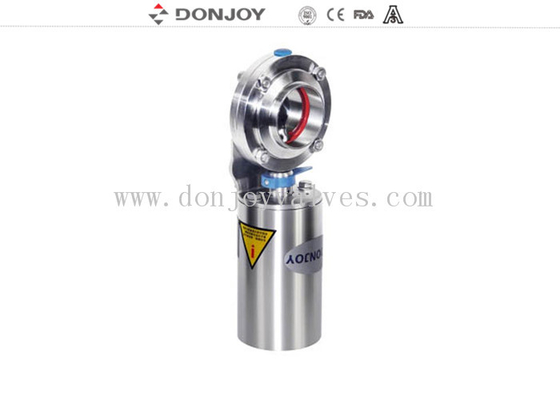

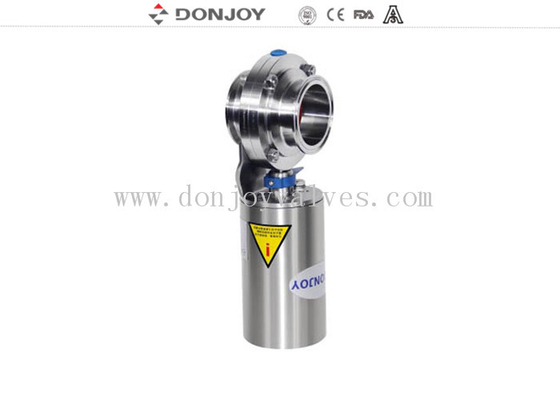

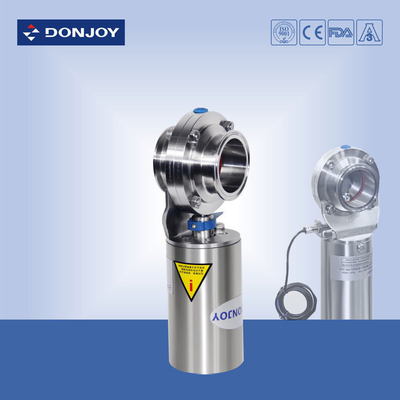

Stainless steel pneumatic sanitary butterfly valve with valve sensor or positioner

Stainless steel pneumatic sanitary butterfly valve with valve sensor or positioner

  • Stainless steel pneumatic sanitary butterfly valve with valve sensor or positioner
  • Stainless steel pneumatic sanitary butterfly valve with valve sensor or positioner
  • Stainless steel pneumatic sanitary butterfly valve with valve sensor or positioner
  • Stainless steel pneumatic sanitary butterfly valve with valve sensor or positioner
Stainless steel pneumatic sanitary butterfly valve with valve sensor or positioner
Product Details:
Place of Origin: China
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Pneumatic Butterfly Valve With Actuator Materials: 304 / 316L
Size: DN10 - DN300, 1/2" - 12" Operation: Pneumatic Actuator
Connection: Clamped O - Ring: Imported From Europe
Inernal Surface Finish: Ra ≤ 0.8μm
High Light:

sanitary butterfly valve

,

pneumatic butterfly valve

Stainless steel pneumatic clamped butterfly valve of basic type of sanitary level with autuator



Specifications

Product Name:

Stainless steel pneumatic clamped butterfly valve of basic type of sanitary level with autuator

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

MaxWorking Pressure:

10Bar

Max.Working Temperature:

120 degree C

Availably  size:

DN10-DN300, 1/2"-12"

Availably connection:

Clamp/welding/thread/special connection

Availably standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual,Pneumatic, Electric

Optional: Positioner / Position Sensor / C - Top
Position of butterfly: On upside

Handle application:

Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc



Material

The material connected with others: AISI 316L / 1.4404

The material in other part: AISI 304

Seal ring: EPDM FDA 177.2600

Inernal surface finish: Ra ≤ 0.8μm

External surface finish: CNC fine machining



Options

Gasket: NBR / MVQ / FPM

Pneumatic actuator of double acting

Inductive position sensor

C - TOP control head

Position sensor

Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.



Handle selection

Two-position handle;

three-position handle;

four-position pull handle;

multi-position plastic handle;

multi-position stainless steel handle;



Packaging Details

Bubble pack for each valve.

Outside packing are carton or plywood cases.

Or as per the request of customers.



Delivery details

Usually within 20 days after receiving T/T down payment.
