Place of Origin:
China
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.
Contact Us

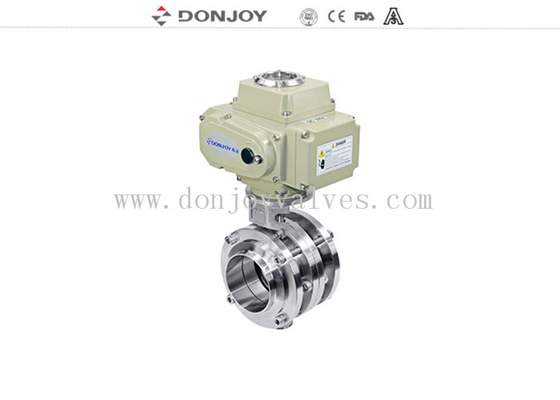

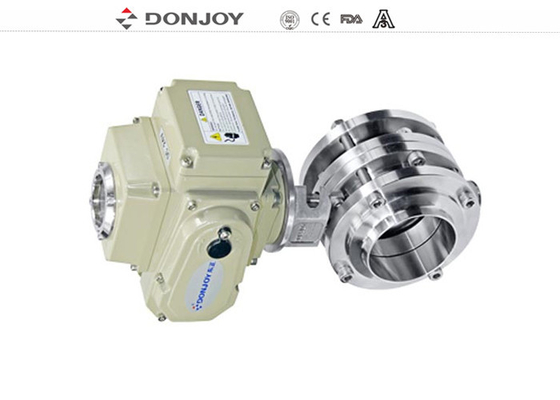

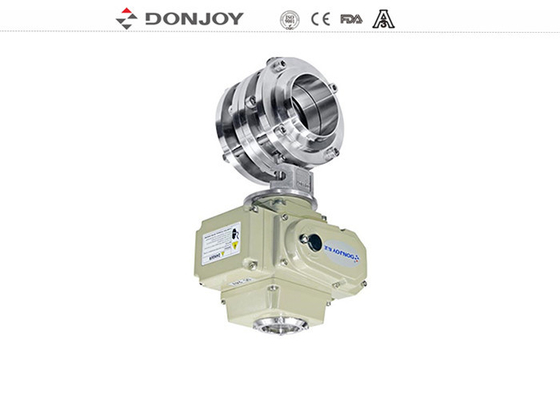

Stainless steel sanitary level butterfly valves of ball type with electic actuator
Specifications
|
Product Name: |
stainless steel sanitary level butterfly type ball valve with |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10Bar |
|
Max.Working Temperature: |
120 degree C |
|
Availably size: |
DN10-DN300, 1/2"-12" |
|
Availably connection: |
Clamp/welding/thread/special connection |
|
Availably standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
|
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
bubble pack for each valve. Outside packing are carton or |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Electric actuator model table
|
Active output on/off electric actuator
|
Size | Torque | Recommend valve size | |
| Butterfly valve | Ball valve | |||
| DJ-5 | 30S-50N.M | ≤4"-DN100 | ≤2.5" | |
| 20S-30N.M | ≤3"-DN80 | ≤2"-DN50 | ||
| 10S-15N.M | ≤2.5"-DN65 | ≤1.5"-DN40 | ||
| DJ-10 | 30S-100N.M |
5"DN125 12"-DN300 |
DN65-3" | |
| 20S-60N.M |
4"-DN100 6"-DN150 |
2.5"-DN65 | ||
| 15S-50N.M |
3"-DN80 5"-DN125 |
2"-2.5" | ||
| DJ-20 | 30S-200N.M | - | DN80-4" | |
| 15S-100N.M |
5"-DN125 12"-DN300 |
DN65-3" | ||
| DJ-40 | 30S-400N.M | - | - | |
| 15S-200N.M | - | DN80-4" | ||
|
Passive output on/off electric actuator
|
Size | Torque | Recommend valve size | |
| Butterfly valve | Ball valve | |||
| DJ-5 | 30S-50N.M | ≤4"-DN100 | ≤2.5" | |
| 20S-30N.M | ≤3"-DN80 | ≤2"-DN50 | ||
| 10S-15N.M | ≤2.5"-DN65 | ≤1.5"-DN40 | ||
| DJ-10 | 30S-100N.M |
5"DN125 12"-DN300 |
DN65-3" | |
| 20S-60N.M |
4"-DN100 6"-DN150 |
2.5"-DN65 | ||
| 15S-50N.M |
3"-DN80 5"-DN125 |
2"-2.5" | ||
| DJ-20 | 30S-200N.M | - | DN80-4" | |
| 15S-100N.M |
5"-DN125 12"-DN300 |
DN65-3" | ||
| DJ-40 | 30S-400N.M | - | - | |
| 15S-200N.M | - | DN80-4" | ||
Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
