Multi Stage High Purity Pumps Homogeneous Softening Pump For soymilk and cheese

Multi Stage High Purity Pumps Homogeneous Softening Pump For soymilk and cheese

lobe rotary pump

high pressure pumps

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

DJ-JZ3

Contact Us

Request A Quote
Product Details
Materials:
SS316L
Type:
JZ - 3
Flow Rate:
10 - 30T/H
Inlet:
2" Thread / Clamp / Ferrule
Outlet:
1.5" Thread / Clamp / Ferrule
Motor Type:
Could Be Optional
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

multi-stage homogeneous softening pump for producing processing



High-efficiency,dispersion, cut, refinement, smash, emulsification, mixing, homogenization, high purity solution


Description
JZ3 Series is online continuity production emulsification homogeneous pump, and is composed by stators and rotors, processed materials will be stepwise dispersed, sheared, refined, curshed, emulsified, mixed and homogenized through three grades twelve-tier stators and rotors. And then be dispersed, cut, refined, smashed, emulsified, mixed etc. step by step.Compared with traditional manufacturing technique, this pump is more easier, convenient and optimized, which hase improved production efficiency and promoted meida quality.



Specifications

Product Name:

multi-stage homogeneous softening pump for producing processing

Pump Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM (Standard, FDA approval) FPM(Viton) and NBR

Max. Flow:

50 m3/h

Max. Speed:

3600 min-1

Max. Head:

50H(m)

Max. Working Pressure:

5bar

Max. Working Temperature:

120 °C

Mechanical seal:

C/SiC/EPDM(Standard), C/SIC, TC/TC



Sealing type:

Flushed double mechanical seal/single mechanical seal(standard)

Motor power:

7.5kw,11kw,15kw,18.5kw,22kw...

Voltage:

440V, 220V, 380V

Motor:

ABB/domestic/SIEMENS

Motor Frequency:

50HZ, 60HZ

Surface treatment:

Inner polished and Sandblast outside

Application structure:

JZ-3

Available connection:

Tri - Clamp, Thread, Flange

Available standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Impeller

Opening impeller

Transfer

Driven by rotary impeller



Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc



Option

1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM

2. Gasket: viton/NBR

3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

4. Motor: 2900,1450,3600Min/1,50HZ,60HZ

5. stators and rotors



Application
1.Food and beverage: jiuce, jam, ice cream, dairy products, food additives, tea drinks,chocolate, soymilk,essence, salad dressing, Chilli sauce, mayonnaise, tomato sauce, mustard, Yogurt, sour cream, flavored milk, pudding and other types of materials

2.Daliy chemical: Liquid detergent, liquid soap, facial cleanser, emulsified silicone oil, fragrance compound, skin care product, cosmetics, cream, shampoo, shower gel,etc

3.Bio-pharmaceutical:Injection, antibiotic, drug emulsion,meulsion, medicine cream paste, health care products, microcapsule emulsification, lotion, cell tissue breakage etc.

4.Additives and thickeners: Aspartame, non-skimmed milk powder, salt, citric acid, sugar, egg powder, whey protein concentrate, calcium carbonate, honey, powder essence and other additives, gels,pectin, synthetic thickeners, starch, gelatin and other thickeners.

5.Petrochemical Industry: Lubricant, heavy oil emulsification, diesel oil emulsification, modified asphalt, catalyzer, wax emulsion etc. which media need to be emulsified and homogenized.

6.fine chemical engineering:pigment, dyestuff, plastic additive, textile assistant, adhesive, resin emulsification, hot melt adhesive , sealant, glue, sizing agent, finishing agent, surfactant, dye leveller, carbon black dispersion,anti-sticking agent,textile finished agent, brightener, leather auxiliaries, pigment paste etc.Which media need to be emulsified and homogenized.

7.Coating and ink : Printing ink, oil paint, emulsion paint, coating, nano-paint, photocureable coating, Coating abhesive, carbon black dispersion, glaze,bentonite, dye compounds etc

8.Pesticide: Insecticide, herbicide, pesticide missible oil,fertilizer, inert ingredient etc which media need to be emulsifed and homogenized

9: Semiconductor: Dispersion&depolymerization of nanometer materials etc



Technical Advantage

Maintenace disassembly and installation can be completed without professional staff and special tools

Initial use of installation debugging, the motor will not be damaged even if afer a short reverse rotarion

The impeller and shaft are connected by the key groove



Selection Table

Multi Stage High Purity Pumps Homogeneous Softening Pump For soymilk and cheese 0

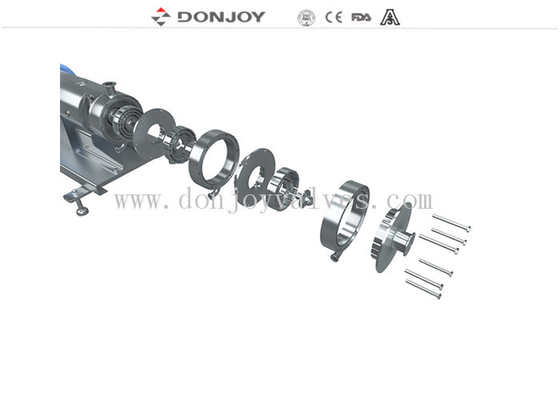

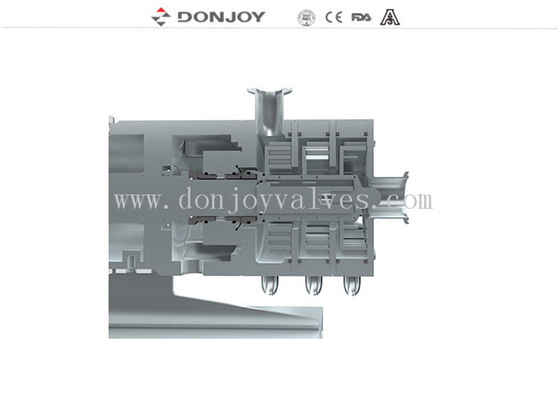

Drawing

Multi Stage High Purity Pumps Homogeneous Softening Pump For soymilk and cheese 1

Multi Stage High Purity Pumps Homogeneous Softening Pump For soymilk and cheese 2

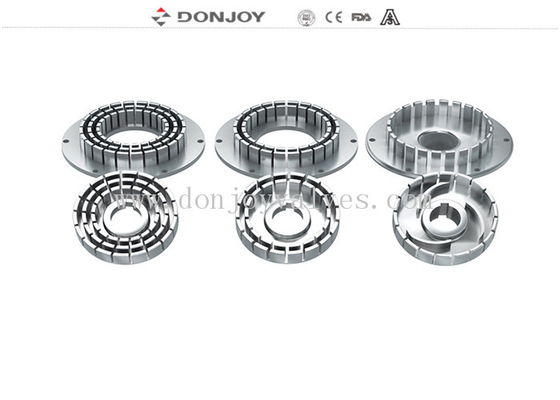

Spare parts component

Multi Stage High Purity Pumps Homogeneous Softening Pump For soymilk and cheese 3

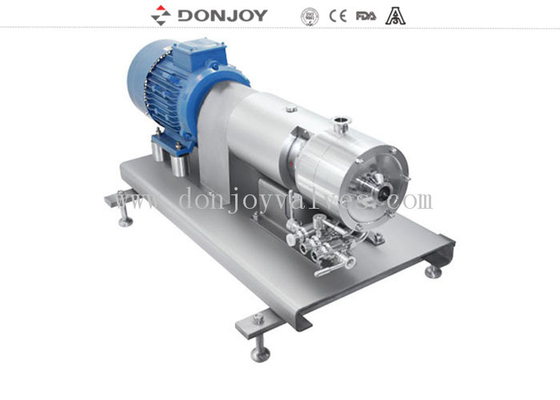

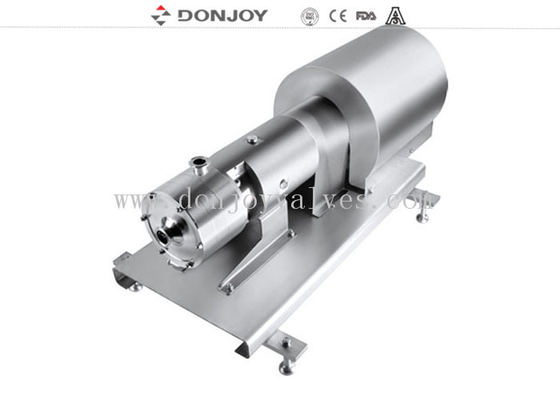

Product display

Multi Stage High Purity Pumps Homogeneous Softening Pump For soymilk and cheese 4



Multi Stage High Purity Pumps Homogeneous Softening Pump For soymilk and cheese 5

Multi Stage High Purity Pumps Homogeneous Softening Pump For soymilk and cheese 6

Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification

organization in Asian sanitary pumps and valves field.”
