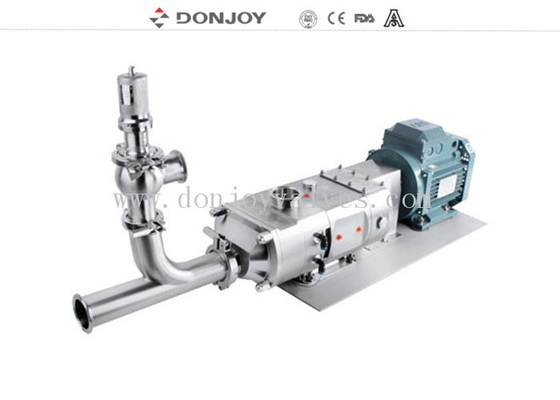

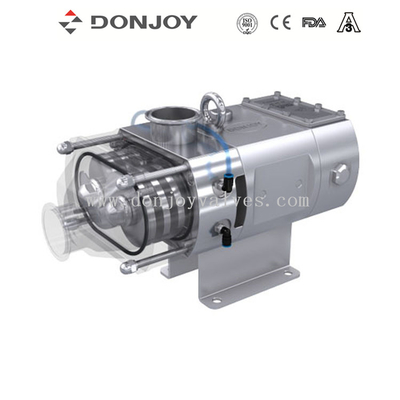

DONJOY food grade gas liquid solid mixing double screw pumps sanitary multipurpose twin screw pump
Description
Double screw pump is used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc
It is not only used for material extraction and transportation,also apply for CIP and SIP systems,can reduce pipeline,valve control and CIP exclusive pumps,which not only improve efficiency,but also save cost.
It has extra characteristics,but other volume pumps do not have, such as no pulse phenomenon, no particle damage, high pressure, speed range, larage flow range and so on.
Specifications
Product Name: |
SS Twin Screw Pump Double screw pump for material transportation and extraction |
Material: |
SS316L / 1.4404 |
Seal Material: |
SIC / SIC / EPDM (Standard, FDA approval) |
Max. Flow: |
120 m3/h |
Max.pressure: |
20 bar |
Max. working temperature: |
150 C |
Max. rev: |
3500 rmp |
Max particles: |
23mm |
Motor power: |
2.2kw, 3kw….22kw |
Feature |
Movable |
Voltage: |
110V, 220V, 380V |
Motor: |
ABB,SEW, 50hz / 60hz |
Surface treatment: |
Ra≤0.6μm, EP=Ra0.4μm |
Available connection: |
Clamp, Thread Butt weld, Flange |
Available standard: |
DIN, SMS, 3A, RJT, ISO / IDF |
Certification |
3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00 |
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
Delivery details: |
Normally within 20 days after receiving T/T down payment. |
Applications
This pump is deal for the transfer of viscous as well as low-viscous media in the food processing, cosmetics and pharmaceutical Industries.
And used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc.
Selection table
Connection way
