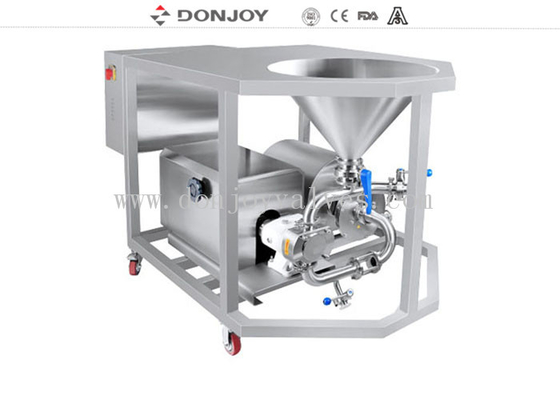

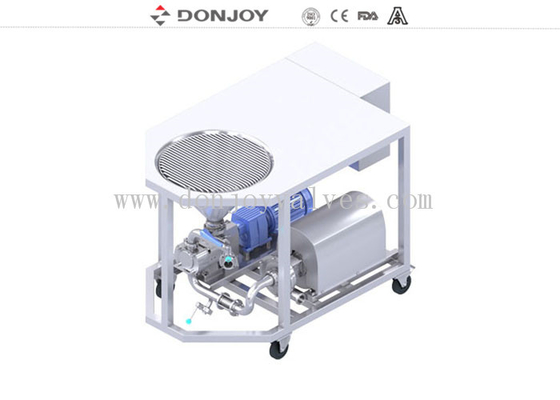

Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ

Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ

    • Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ
    • Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ
    • Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ
  • Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: MPTU

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Name: High Purity Pumps Function: Mixing , Shearing , Emulsifying 380V/50HZ
    Mechanical: Single Seal/Double Mechanical Seal Liquid Inlet: 2"/3"/4"
    Hopper: 45L/65L Motor: 380V/50HZ,440V/60HZ
    Item Name: PMTU Series Mixing Pump

    PMTU Mixing pump High Purity Pumps for fluid andp powder mixing and transfer



    The PM series is a multifunctional material-liquid mixing pump with functions of mixing, shearing, emulsifying, homogenizing, differentiating, refining, crushing and material improvement. Compared with the traditioinal production process, the pump is more simple, convenient and economical, which improves the production efficiency and the quality of the materials to be treated



    Technnical Specifications



    Max powder processing capacity 9000kg/h
    Max thickeners processing Capacity 3000kg/h(Base on materials' viscosity and density
    Max Temperature 130°C
    Materials 304/316L,1.431/1.4404,ASME BPE316L
    surface treatment ≤Ra0.8μm,≤Ra0.6μm,≤Ra0.4μm,
    mechiancal seal Single and double mechanical seal
    Mechanical seal combination See configuration table
    Inlet&outlet connection Thread, clamp,Flange, aseptic flange
    Certificate 3A,CE,FDA.







    Application
     1.Food and beverage: jiuce, jam, ice cream, dairy products, food additives, tea drinks,chocolate, soymilk,essence, salad dressing, Chilli sauce, mayonnaise, tomato sauce, mustard, Yogurt, sour cream, flavored milk, pudding and other types of materials

    2.Daliy chemical: Liquid detergent, liquid soap, facial cleanser, emulsified silicone oil, fragrance compound, skin care product, cosmetics, cream, shampoo, shower gel,etc

    3.Bio-pharmaceutical:Injection, antibiotic, drug emulsion,meulsion, medicine cream paste, health care products, microcapsule emulsification, lotion, cell tissue breakage etc.

    4.Additives and thickeners: Aspartame, non-skimmed milk powder, salt, citric acid, sugar, egg powder, whey protein concentrate, calcium carbonate, honey, powder essence and other additives, gels,pectin, synthetic thickeners, starch, gelatin and other thickeners.

    5.Petrochemical Industry: Lubricant, heavy oil emulsification, diesel oil emulsification, modified asphalt, catalyzer, wax emulsion etc. which media need to be emulsified and homogenized.

    6.fine chemical engineering:pigment, dyestuff, plastic additive, textile assistant, adhesive, resin emulsification, hot melt adhesive , sealant, glue, sizing agent, finishing agent, surfactant, dye leveller, carbon black dispersion,anti-sticking agent,textile finished agent, brightener, leather auxiliaries, pigment paste etc.Which media need to be emulsified and homogenized.

    7.Coating and ink : Printing ink, oil paint, emulsion paint, coating, nano-paint, photocureable coating, Coating abhesive, carbon black dispersion, glaze,bentonite, dye compounds etc

    8.Pesticide: Insecticide, herbicide, pesticide missible oil,fertilizer, inert ingredient etc which media need to be emulsifed and homogenized

    9: Semiconductor: Dispersion&depolymerization of nanometer materials etc



    Conbine

    Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ

    Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ

    Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ

    Selection Table and Drawing

    Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ

    Multifunctional High Purity Pumps Mixing , Shearing , Emulsifying 380V/50HZ



    Competitive Advantage
    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
