| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE/FDA/ISO/3A |
| Minimum Order Quantity: | 50PCS |
|---|---|
| Packaging Details: | Carton, Wooden Case |
| Delivery Time: | 10-30 working days |
| Payment Terms: | T/T,L/C, Credit Card |
| Supply Ability: | 5000pcs per month |
| Brand: | DONJOY | SIZE: | 1*-4" |
|---|---|---|---|
| Roughness: | Ra 0.8um | Certification: | 3A-63-03 |
| Materials: | Stainless Steel, SS304 Or SS316L | Place Of Origin: | Zhejiang, China |
| High Light: | 3A Union Connection Whole Set,316 Union Connection Whole Set,3A sanitary pipe fittings |
||

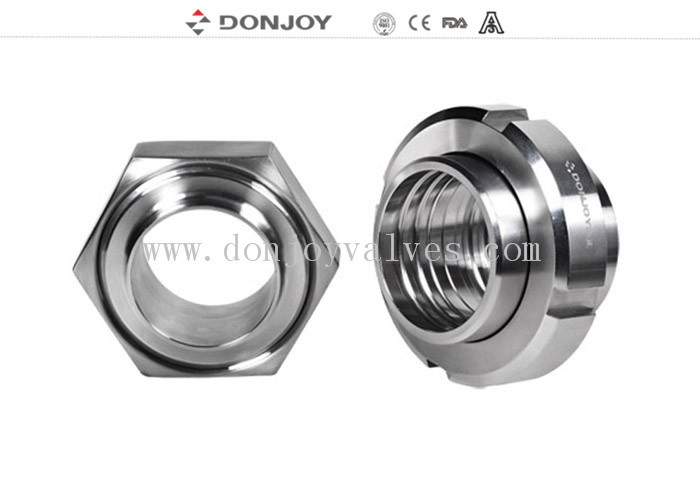

Donjoy Stainless steel 304 316 3A Union connection whole set 1"-4" Ra0.8 um roughness
Quick Detail
3A union Set( Round Nut+Liner+ Male), Union Connector
Materials: 1.4301/1.4404
Polished: CNC, Mirror Polished
Recommend model : Round nut F040301,Male F040311,Liner F040331
Size:1"-4"
Standard: 3A,RJT,DIN, 3A,SMS, ISO,ISO1127
Max Tempressure: 120Degree, If more higher,Please contact us.
Max Pressure: 10Bar
MOQ:5PC
Tecnical: Forged
Type : Union.
OEM is welcome
Specification
|
Product Name: |
Donjoy Stainless steel 304 316 3A Union connection whole set 1"-4" Ra0.8 um roughness |
|
Material: |
AISI304, AISI316L |
|
Size: |
1"-4" |
|
Finish: |
CNC |
|
Connection: |
Nut |
|
Standard: |
DIN, SMS,3A,ISO,ISO1127 |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Product Drawing

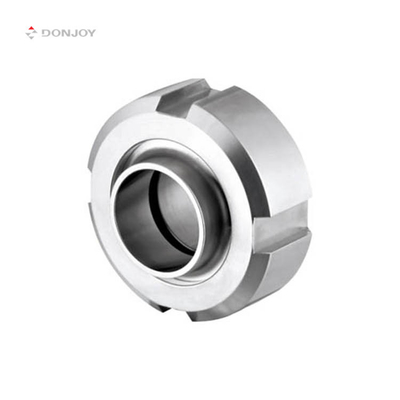

Round Nut
Model :F040301
| Size | Size | ||
| G (ACME) | H | D | |
| 1" | 38.02 x 1/8 | 23 | 46 |
| 1.5" | 51.54 x 1/8 | 24.6 | 62 |
| 2" | 65.05 x 1/8 | 27 | 75 |
| 2.5" | 78.56 x 1/8 | 29.6 | 90 |
| 3" | 92.08 x 1/8 | 32.5 | 103 |
| 4" | 120.14 x 1/6 | 38.1 | 132 |
Short Male
Model:F040311
| Size | Size | ||
| G(ACME) | H | D | |
| 1" | 37.13 x 1/8 | 18.3 | 25.4 |
| 1.5" | 50.65 x1/8 | 18.3 | 38.1 |
| 2" | 64.1 x1/8 | 19.1 | 50.8 |
| 2.5" | 77.6 x1/8 | 22.3 | 63.5 |
| 3" | 91.1 x1/8 | 23.1 | 76.2 |
| 3.5" | 105.5 x1/6 | 23.1 | 88.9 |
| 4" | 119.25 x1/6 | 26.2 | 101.6 |
Short Liner
Model F040331
| Size | Size | ||
| H | D | D1 | |
| 1" | 18.3 | 25.4 | 33.3 |
| 1.5" | 18.3 | 38.1 | 46.8 |
| 2" | 19.1 | 50.8 | 60.3 |
| 2.5" | 22.3 | 63.5 | 73.8 |
| 3" | 23.1 | 76.2 | 87.3 |
| 4" | 26.2 | 101.6 | 114.3 |
Delivery time
|
ITEMS MATERIAL SIZE DELIVERY
|
|||
|
LINER
|
316L,304
|
1" |
10000PCS/10-15 DAYS
|
|
316L,304
|
1.5" |
10000PCS/10-15 DAYS
|
|
|
316L,304
|
2" |
10000PCS/10-15 DAYS
|
|
|
LINER
|
316L,304
|
2.5" |
10000PCS/10-15 DAYS
|
|
316L,304
|
3" |
10000PCS/10-15 DAYS
|
|
|
316L,304
|
4: |
10000PCS/10-15 DAYS
|
|
|
MALE
|
316L,304
|
1"
|
10000PCS/10-15 DAYS
|
|
316L,304
|
1.5"
|
10000PCS/10-15 DAYS
|
|
|
316L,304
|
2"
|
10000PCS/10-15 DAYS
|
|
|
MALE
|
316L,304
|
2.5"
|
10000PCS/10-15 DAYS
|
|
316L,304
|
3"
|
10000PCS/10-15 DAYS
|
|
|
316L,304
|
4"
|
10000PCS/10-15 DAYS
|
|
|
NUT(Hex)
|
304
|
1"
|
10000PCS/15 DAYS
|
|
304
|
1.5"
|
10000PCS/15 DAYS
|
|
|
304
|
2"
|
10000PCS/15 DAYS
|
|
|
NUT(Hex)
|
304
|
2.5"
|
10000PCS/15 DAYS
|
|
304
|
3"
|
10000PCS/15 DAYS
|
|
|
304
|
4"
|
10000PCS/15 DAYS
|
|
Application
Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry,etc.
Payments Term
Total amount <=1000USD, 100% in advance. Total amount>=1000USD, 50% T/T in advance,balance before shippment.
Delivery time
For the samples within 7 days. For the large order always with 15 days.
Term of conditions
EXW PRICE, FOB, CIF....
Contact Person: Jasmine Zhuang
Tel: 86-18967799769
Address: No.25 Gangfu Road, Konggang New District, Longwan, Wenzhou, China
Factory Address:No.25 Gangfu Road, Konggang New District, Longwan, Wenzhou, China
