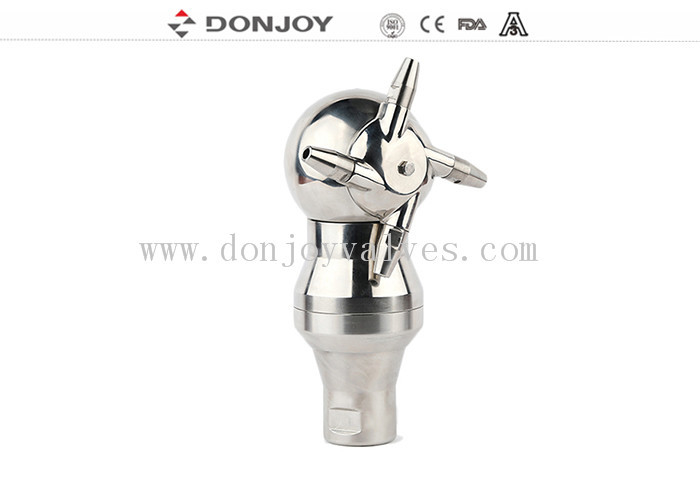

Sanitary Stainless Steel 45m3/H Tank Spray Balls

Sanitary Stainless Steel 45m3/H Tank Spray Balls

Sanitary Stainless Steel 45m3/H Tank Spray Balls
Sanitary Stainless Steel 45m3/H Tank Spray Balls
Sanitary Stainless Steel 45m3/H Tank Spray Balls
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 820$/pc -1200$/pc
Packaging Details: Carton, Wooden Case
Delivery Time: 5-30 working days
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 3000 pcs per month
Contact Now
Detailed Product Description
SIZE: 1",1.5",2" Brand: DONJOY
Stanadard: DIN,3A,SMS,ISO,BSP Connection: Female Thread, Clamp Ends
Polished: Mirror, Matt Material: Stainless Steel
High Light:

45m3/H Tank Spray Balls

,

sms Tank Spray Balls

,

4mm Tank Spray Balls



DONJOY sanitary stainless steel sus316 1" tank cleaner rotary 360 degree cleaning ball 45m3/h



Quick Detail

Cleaning Ball

Nozzle Size:4mm,5mm, 6mm,7mm,8mm

Connection: 1",1.5",2" BSP or NPT Thread,Clamp

Materials : 1.4404 ( SS316L)



Specification



Product Name:

rotary jet head 360°,tank cleaner

Material:

SUS316L;PTFE

Flow:

4-45m³/h

Inlet Pressure:

4-10 bar

Suggest Pressure:

6 bar

Available  size:

1.5"-DN40

Connection way:

thread BSP, clamp

Max temperature:

  95°C

Max environment temperature:

140°C

Application Scope:

Widely used  in food and dairy products, Pharmaceutical, Chemical treatment, Transport equipment, Beverage

Typical application:

process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding

Advantages:

Self-cleaning; low liquid consumption; heath design

Typical cleaning methods:

fixed installation CIP system

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.




























































Drawing

Sanitary Stainless Steel 45m3/H Tank Spray Balls 0

Sanitary Stainless Steel 45m3/H Tank Spray Balls 1

Sanitary Stainless Steel 45m3/H Tank Spray Balls 2

Sanitary Stainless Steel 45m3/H Tank Spray Balls 3

Performance Curve

Sanitary Stainless Steel 45m3/H Tank Spray Balls 4

Sanitary Stainless Steel 45m3/H Tank Spray Balls 5

Sanitary Stainless Steel 45m3/H Tank Spray Balls 6



Typical Application

1.Fixed installation CIP System

2.Process Containers and reator

3.Store tank

4.Transport tank equipment

5.Fermentation

6.Yeast Breeding



Operating Principle



1.      Rotary injector is Hygenic tank cleaner, with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

2.      Rotary injector with unique self-cleaning function, internal is completely cleaning.





Technical Parament



1. Flow: 4-45T/H

2.Inlet Pressure:4-10Bar

3.Suggest Temperature: 95 Degree

4.Connection: BSP,1.5"-DN40

5.Gasket Materials: PTFE

6.Lubrication: Cleaning Medium



Common application:



  • Cleaning tanker trucks
  • Cleaning rail cars
  • Cleaning petrochemical reactors
  • Cleaning residues from chemical tanks
  • Cleaning sewage tanks
  • Cleaning silt from water supply tanks
  • Cleaning pharmaceutical tanks
  • Cleaning food processing tanks
  • Cleaning pulp storage/processing tanks
  • Cleaning blenders
  • Cleaning storage tanks
