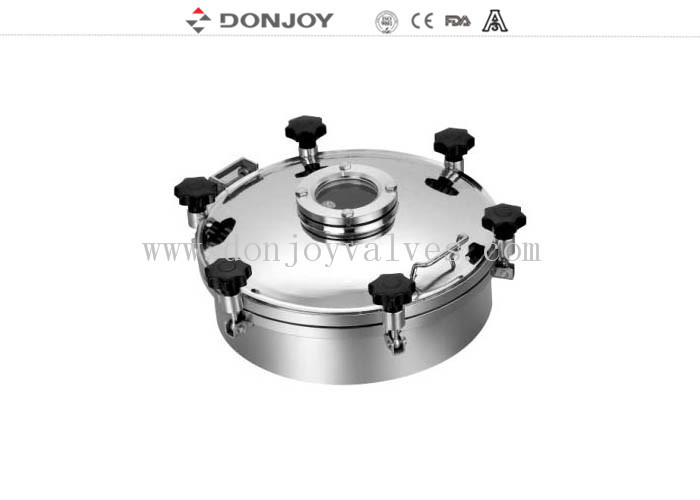

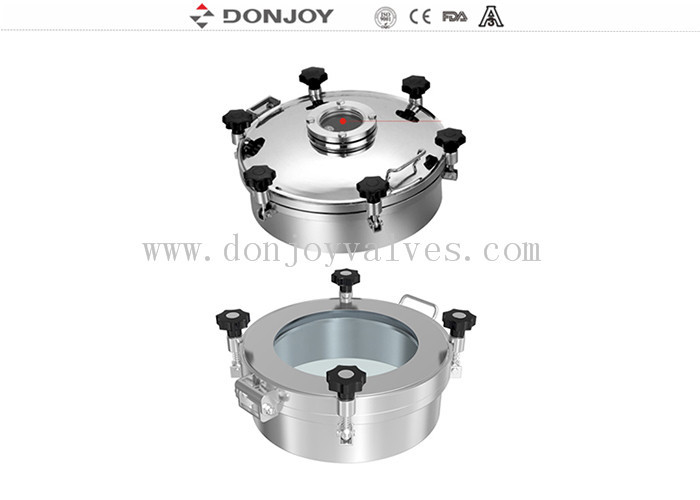

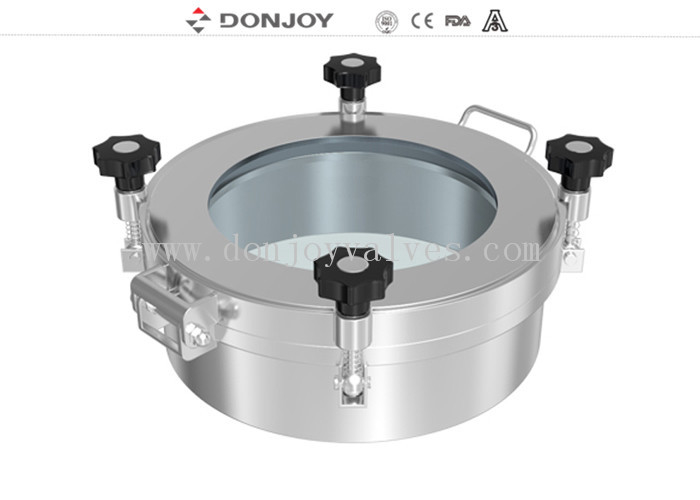

Φ600mm Sanitary Grade Tank Manway With Sight Glass

Φ600mm Sanitary Grade Tank Manway With Sight Glass

  • Φ600mm Sanitary Grade Tank Manway With Sight Glass
  • Φ600mm Sanitary Grade Tank Manway With Sight Glass
  • Φ600mm Sanitary Grade Tank Manway With Sight Glass
Φ600mm Sanitary Grade Tank Manway With Sight Glass
Product Details:
Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.ERK111
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Carton, Wooden Case
Delivery Time: 5-30 working days
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 100pcs/Day
Contact Now
Detailed Product Description
Brand: DONJOY Dimension: 102MM-800MM
Stanadard: DIN,3A,SMS,ISO Connection: Weled
Polished: Mirror, Matt Height: 100mm,120mm,140mm,160mm,180mm,200mm
High Light:

Sanitary grade tank manway

,

Φ600mm tank manway

,

stainless steel manways for tanks

Φ600mm Sanitary grade tank manway stainless steel circle manhole cover with sight glass


Quick Detail
Manhole Cover,Round Manway
Demission:DN200*100mm,220*100mm,300*100mm,450*150mm,500*120mm,600*140mm,800*140mm, Or customized
Height:100mm,120mm,140mm,160mm,180mm,200mm
Type: Round pressure
Handle: Plastic wheels, Stainless Steel wheel



Specifications

Product Name:

Tank circle pressure manway

Material:

AISI304, AISI316L

Size:

102-800

Finish:

Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit

Connection:

Welded

Standard:

DIN,3A,SMS,ISO

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste

water etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers



Drawing

Φ600mm Sanitary Grade Tank Manway With Sight Glass 0

Size H D1 D2
200 100 194 200
220 100 214 220
300 100 294

300

350 100 344 350
400 100 394 400
430 100 424 430
450 100 444 450
500 100 494 500
600 100 594 600

Unit: mm



Φ600mm Sanitary Grade Tank Manway With Sight Glass 1

Size H T D2
400 100 4 400
430 100 4 430
450 100 4 450
500 100 4 500
600 100 5 600
800 100 6 800
900 100 6 900



Technical Information:
Gasket: EPDM,NBR,SILICONE,FPM in accordance with FDA177.1600
Working Pressure:2-5Bar
Fineness: inner and outer fineness of mirror Ra≤0.8μm, inner and outer mechanical polish and electrical polish Ra 0.2μm, the external surface can be gross polished or sub-gross polished.
Application:dairy , food , chemical ,beverage ,pharmaceuticals ,water treatment ,beer etc .It is used as cap on the top of the vessel,tank etc

Outward opening manhole cover



Manhole cover optional

1.Glass pressure manhole cover

2.Non pressure round manhole cover

3.Pressure man hole cover

4.High pressure manhole cover

5.Elliptical man hole cover

6.Square manhole cover

7.Rectangular manway

8.Mini type manhole cover


Question:
1. What about the delivery time of the manhole cover
Answer: Normally Takes about 7-10 days
2.How about the Surface
Answer: Our standard with mirror inside and outside satin polish side.If you have requirements in Ra,please let me know it.
3. The height of the square Manhole:
Answer: Our standard with 65mm Height, 8mm thickness. Or if you have requirements, we also can be according it to custom.
4.Can you do as a specific size and print our logo on it?
Answer: Yes, We support specifications customize and personalized customization If you need more information or catalogs,please contact us freely.


Tag: pressure manhole cover. 5Bar pressure manway, 3Bar pressure tank cover
