Solid State Particle 2" Hygienic Aeration Butterfly Valve

Solid State Particle 2" Hygienic Aeration Butterfly Valve

Hygienic Aeration Butterfly Valve

2" Butterfly Valve

DN300 Butterfly Valves

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Contact Us

Request A Quote
Product Details
Product Name:
Powder Butterfly Valve
Materials:
316L
Size:
2.5" - 12" / DN65-DN300
Operation:
Pneumatic
Connection:
Welded/clamp
Feature:
With Pneumatic Actuator
Structure:
Butterfly
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box or wooden box
Delivery Time
10-30 working days
Payment Terms
T/T, LC, Credit Card
Supply Ability
500pcs per month
Product Description

DONJOY top quality hygienic Aeration butterfly valve 2" for solid-state particle material


Specifications

 Product Name:

The ultra small torque aeration butterfly valve

Valve Body Material:

SS316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 degree C

Available  size:

DN65-DN300, 2.5"-12"

Available connection:

Clamp/welding

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual, Pneumatic

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Bubble pack for each valve. Outside packing is carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.



Drawing

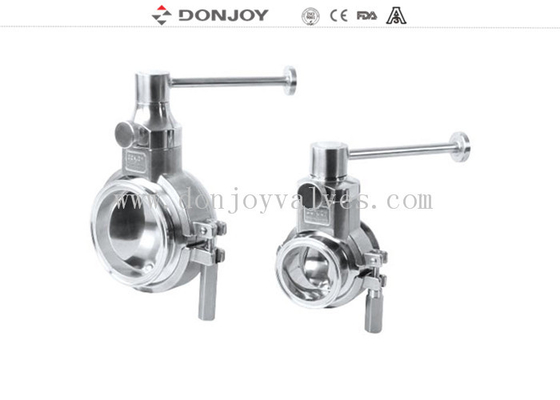

Solid State Particle 2" Hygienic Aeration Butterfly Valve 0

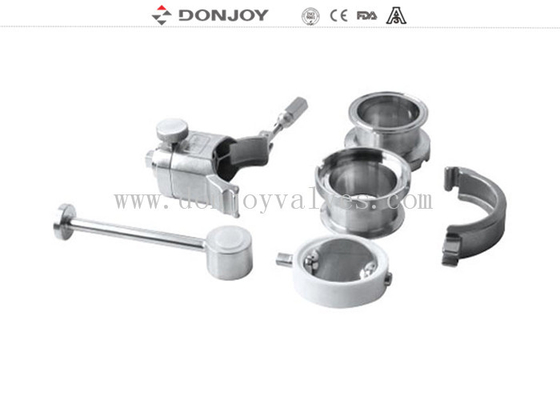

Solid State Particle 2" Hygienic Aeration Butterfly Valve 1

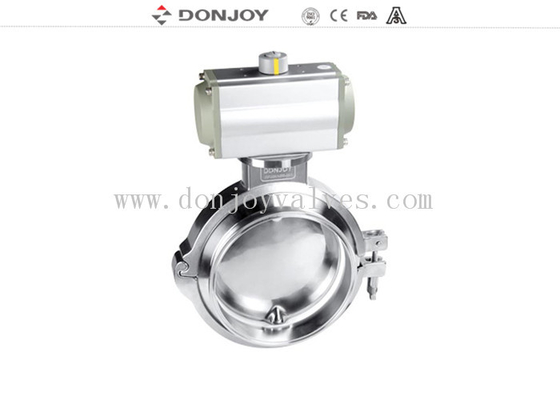

   Solid State Particle 2" Hygienic Aeration Butterfly Valve 2



Advantage

1.The butterfly valve dedicated to solid state particle material

2.Apply to vacuum environment

3.Small torque

4.Long lifetime

5.Easy to disassemble

6. 0.5-1mm gap between disc and seal


Material
The material connected with others: AISI 316L
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Options
Gasket: NBR / MVQ / FPM
The pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.


Delivery details
Usually within 20 days after receiving T/T down payment.

Solid State Particle 2" Hygienic Aeration Butterfly Valve 3

Solid State Particle 2" Hygienic Aeration Butterfly Valve 4
