| Place of Origin: | CHINA |
| Brand Name: | DONJOY |
| Certification: | CE,3A,FDA |
| Model Number: | NO.VZB40 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton box |
| Payment Terms: | T/T, LC, Credit Card |
| Product Name: | Directly Ball Valve | Size Of Panel: | DN25-DN100 |
|---|---|---|---|
| Operation: | Pneumatic, Control Head,Manual | Materials: | 304/316L |
| Connection: | Welded, Clamped, Thread, Flange | Medium: | Beverage,water... |
| High Light: | 4 Inch BPE Ball Valve,Aluminum Actuator BPE Ball Valve,Beverage BPE Ball Valve |
||

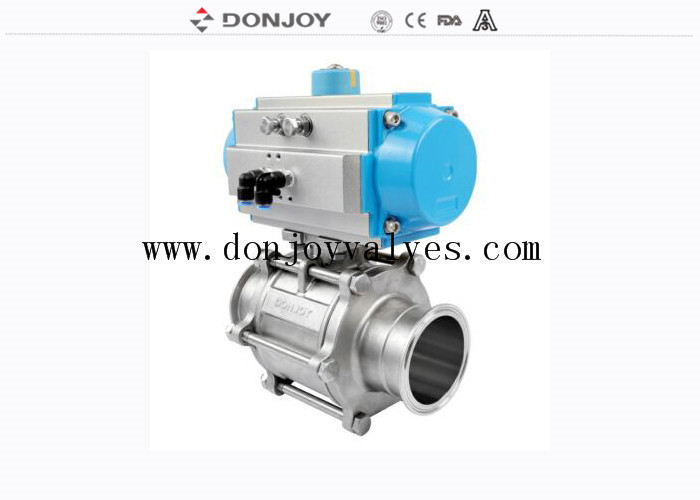

SS304/316L Clamp 3-pcs Non-retention ball valve, 2 Way ball valve for Diary
Description:
Type of Non-rentention ball valve
1. Pneumatic three-piece mon-retention ball valve
2. Pneumatic three-piece mon-retention ball valve with positioner
3. Pneumatic three-piece mon-retention ball valve with C-TOP
4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP
5. Pneumatic three-piece mon-retention ball valve With Electric actuator
6. Aluminum acuator with positioner
Specification
| Product Name: | 3-pcs Non-retention ball valve,Directly ball valve SS304/316L BPE Standard for food |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 150 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
Advantage:
Small Turque
FDA certificate for the Gasket
Easy Cleaning
Full Port Ball
Applications:
The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires
Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,
Advantage
1.Small Torque,
2.Long Service life
3.Full degreasing,
4.sealing elastic compensation
5. Small size, trace retention inside, appearance close to no dead ends, very flexible function combination, maintenance without professional tools, economical, simple and reliable
Torque Information:
| SIZE | 1/2”-3/4” | DN25/1” | DN32/11/4” | DN40/1.5” | DN50/2” | DN65/2.5” | 3” | DN100/4” |
| Nm | 6 | 10 | 12 | 14 | 20 | 40 | 75 | 110 |
Relate Ball valve
Drawing
Curve
Surface Treatment
Competitive Advantage:
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
