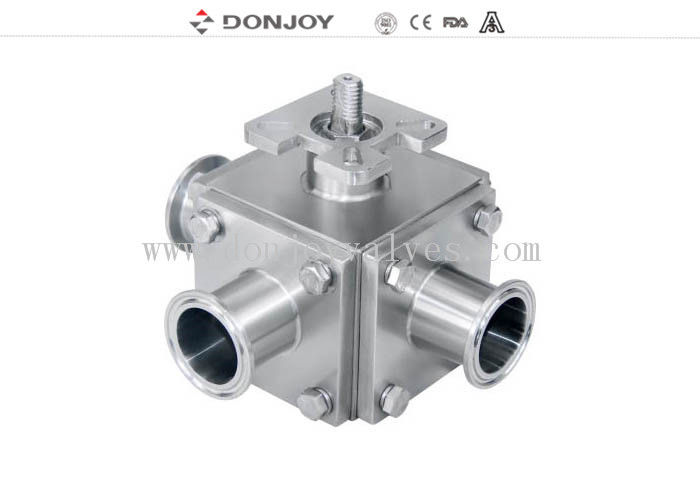

Three Way 10Bar PTFE Gasket DN40 Pneumatic Ball Valve

Three Way 10Bar PTFE Gasket DN40 Pneumatic Ball Valve

Three Way 10Bar PTFE Gasket DN40 Pneumatic Ball Valve

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: NO.VQW110Q2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Product Name: Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
Operation: Pneumatic, Control Head,Manual Media: 304/316L
Connection: Welded, Clamped, Thread, Flange Gasket: PTFE,TFM(FDA 177.1550)
Port Type: T-port/L-port
High Light:

DN40 Pneumatic Ball Valve

,

10Bar Pneumatic Ball Valve

,

FDA Sanitary Ball Valve

DN40 Ball Valve Aluminum pneumatic actuator three-way non-retention with DC24V switch box



Description:

Size: 1/2"-4", DN10-DN100

Input 0/4-20mA, 0-5/10V

Output: 0/4-20mA, 0-5/10V(position sensor)

Bus:DEVICE NET BUS

Air/spring, Air/Air



Specification

Product Name: DN40 Ball Valve Aluminum pneumatic actuator three-way non-retention with DC24V switch box
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 150 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO
Packaging details Standard export package or ar per the request of cutomers



Applications:

This ball valve is widely used in the field of biopharmaceutical, brewing industries, and food beverage, food processing industries. The two kinds of port can be interchangeable on site and guarantee no dead angle, no retention.



Technical Feature

All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, automatic compensating sealing design, the advantages of samll torque.



Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system,  assessed for the Provincial Famous Trademark, Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”



Three Way 10Bar PTFE Gasket DN40 Pneumatic Ball Valve 0

Three Way 10Bar PTFE Gasket DN40 Pneumatic Ball Valve 1Three Way 10Bar PTFE Gasket DN40 Pneumatic Ball Valve 2

Working Diagram

Three Way 10Bar PTFE Gasket DN40 Pneumatic Ball Valve 3

Tags: Non retention ball valve , sanitary valves,
