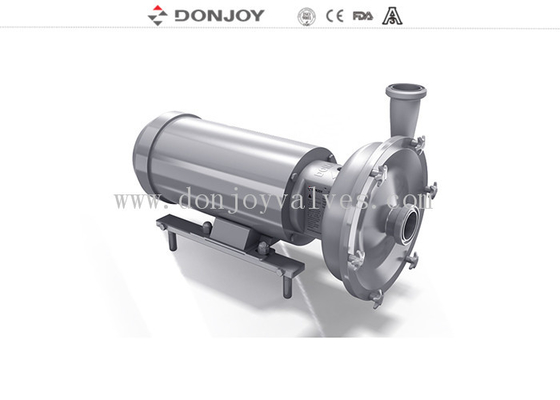

30T/H Stainless Steel SCKL Type DONJOY sanitary Centrifugal Pump

30T/H Stainless Steel SCKL Type DONJOY sanitary Centrifugal Pump

SCKL Type Centrifugal Pump

Stainless Steel High Purity Pump

30T/H Centrifugal Pump

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

SCLX

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
Type:
SCLX
Flow Rate:
10 - 30T/H
Inlet:
2" Thread / Clamp / Ferrule
Outlet:
1.5" Thread / Clamp / Ferrule
Motor:
IP69 Stainless Steel
Mech Seal::
Lushed Double Mechanical Seal/single Mechancal Seal
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Donjoy Whole stainless steel SCKL type centrifugal pump/High purity pump



Solution for high effciency, low noise, stainless steel motor, ip69 proof, diving, clamp pump head, easy to clean, whole machine washable, simple and economical maintenance, high purity



Donjoy DJ-SCLX Series centrifugal pump is upgraded from SKS in ss whole, including motor, not only optimize the internal structure, such as impeller design, dead angle treatment, mechanical seal is designed as pressure balance and completely in flushing area, but also optimize external sanitation of the pump, which makes internal absolute sanitarion and reduce external dead angel.

Since there is no dead angle area, it is easy to be cleaned by CIP and sterilized by SIP.In addition, DJ-SCLX series pump, has kept the maximum flexibility of combined applications, for example, the pump outlet angle can be arbitrarily adjusted from 0° to 360° , Pump cover is connected by a clamp, which keeps high efficiency in the maintenanceof the pump and replacement of mechanical seal without special tool, and reduces the highly professional requirements to maintenance personnel. Therefore, the DJ-SCLX series centrifugal pump have achieved the goal of high efficiency, hygiene, high reliability and low cost, makeing it a high performance pump.



Specifications



Product Name:

 Food grade Beverage/beer /liquid transfer pump centrifugal pump with IP69 Motor

Valve Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM (Standard, FDA approval) FPM(Viton) and NBR

Max. Flow:

120 m3/h

Max. Speed:

3600 min-1

Max. Head:

70H(m)

Max. Working Pressure:

7 bar/99 PSI

Max. Working

Temperature:

120 °C

Mechanical seal:

SIC/SiC/EPDM(Standard), C/SIC, TC/TC

Sealing type:

Flushed double mechanical seal/single mechanical seal(standard)

Motor power:

1.1kw, 1.5kw, 2.2kw....

Voltage:

110V, 220V, 380V,440V

Motor:

ABB/domestic/SIEMENS

Motor Frequency:

50HZ, 60HZ

Surface treatment:

Inner polished and Sandblast outside

Application structure:

SCLX

Available connection:

Tri - Clamp, Thread, Flange

Available standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Impeller Opening impeller
Transfer Driven by rotary impeller

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Plywood case or customerized. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.





Description

Options

1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM

2. Gasket: viton/NBR

3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

4. Motor: 2900,1450,3600Min/1,50HZ,60HZ

5. Open Impeller, Close Impeller





Applications

1. This pump is a whole including the motor and pump are made of stainless steel, not only high clean exterior and interior design, also online high-pressure water rinse. IP67 up to IP69 rating



2.This pump have a high discharge,low noise, igh flow, no dead-ends. high-performance and other technical characteristics. Mother and manufacture high purity materials. Compliance with ASME BPE and EHEDG high Standards. Certified 3A-02-10,CE-MD/06/42/EC.



Technical Advantages

Maintenance disasembly and instllat can be completed without professional staff and special tools

Initial use of installation debugging, even if a short reverse rotaion will not be damaged.

Impleller and shaft are connected by kewya, impeller and mechanical seal rotating ring are connected by pin

Mechnical seal static ring and pump body are connected by special-shaped flange.

Compatible with single seal and double mechanical seal, only need to change mechanie seal.



Selection Table

30T/H Stainless Steel SCKL Type DONJOY sanitary  Centrifugal Pump 0

Drawing

30T/H Stainless Steel SCKL Type DONJOY sanitary  Centrifugal Pump 130T/H Stainless Steel SCKL Type DONJOY sanitary  Centrifugal Pump 2

30T/H Stainless Steel SCKL Type DONJOY sanitary  Centrifugal Pump 3



30T/H Stainless Steel SCKL Type DONJOY sanitary  Centrifugal Pump 4
