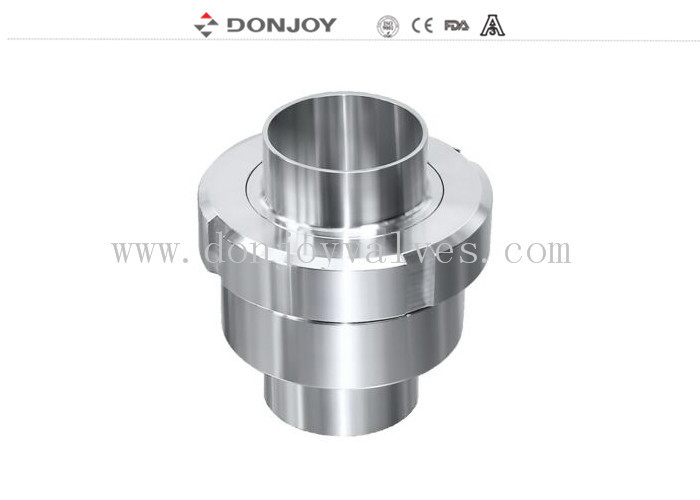

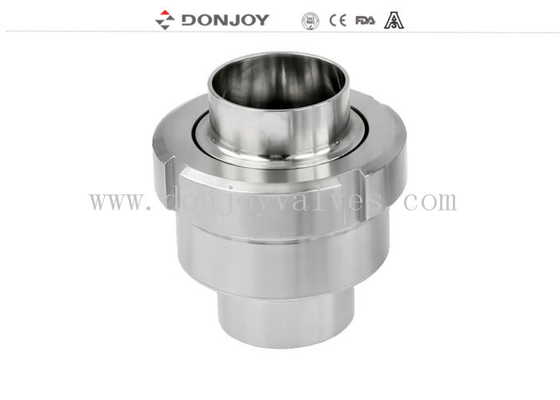

DN50 Weld Stainless Steel sanitary Check Valves/304 Spring return valve
Quick Detail:
Hydraulic Check Valves
Easy disassemble
Small-size construction
DIN11851 connection (standard)
Specification
| Product Name: | DN50 Weld Stainless Steel sanitary Check Valves/304 Spring return valve |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | EPDM |
| Max. Working Pressure: | 10Bar |
| Opening pressure: | 0.1-0.3bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN25/1" to DN100/4" |
| Availably connection: | Thread,Weld,Clamp |
| Availably standard: | DIN,SMS,3A |
| Certificate: | FDA,CE |
Option of Check Valve
1. Connection: Clamp, Weld, Thread
2. SEAL: NBR, FPM,PTEF all according to FDA177.2600
3. Standard: DIN,SMS, RJT, IDF, ISO, 3A
Drawing
Operating Principle
The valve opens when the pressure of the fluid exceeds the pressure to spring, When the two pressures are equalised, the valve closes, A stronger counter – pressure also makes the valve close
Sanitary valves come in two forms: horizontal and vertical.
Horizontal valves are suited to horizontal lines that need self-draining valves
Vertical valves can be used in either vertical or horizontal installations; in horizontal applications, vertical valves help when self-draining valves can’t maintain pump prime and temperature continuity
In the case of horizontal spring-check valves, product flow pushes a disc in the valve away from the seat. When forward flow pressure is removed, the electropolished spring will return the disc to its original position and hold it against the seat to keep it closed. Backflow pressure will also force the disc into the closed position.
Check valves help in scenarios that require the evacuation of process pipelines. This can occur for a host of reasons, especially those involving product recovery or drainage. Some applications may also require air agitation on the products in the pipelines or in the tanks they lead to. Check valves can accomplish this.
Things to Keep in Mind When Installing a Sanitary Check Valve
– Ball Check Valve –
In a vertical setting, the product has to flow from bottom to top so that gravity can push the ball in and out of the seat.In a horizontal setting, the curved portion of the valve needs to be upright and at 90 degrees to the pipe. This makes sure that the valve is free-draining and the ball sits properly.
– Disk Check Valve –
Disk Check Valves are not free-draining in a vertical setting. Therefore, for them to be free-draining, they need to be in a horizontal position
