Place of Origin:
China
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
NO.T-H
Contact Us

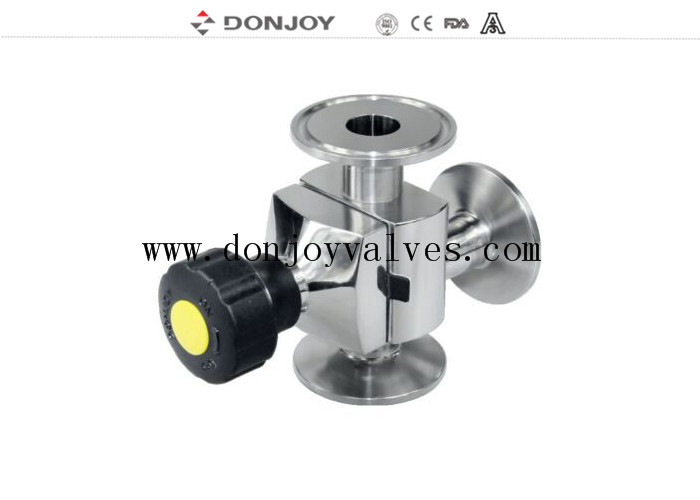

DONJOY 3 Way L type EPDM Manal diaphragm valve with no dead leg
Specifications
Product Name: | Pneumatic Radial Diaphragm Valve for phamacy hygienic process |
Valve Body Material: | SS316L |
Seal Material: | Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM |
MaxWorking Pressure: | 6 Bar |
Max.Working Temperature: | 120 degree C |
Availably size: | 3/4''-2.5'', DN20-DN65 |
Availably connection: | Clamp/weld/thread/special connection |
Availably standard: | 3A/BPE/DIN/ISO/IDF |
Operated: | Manual,Pneumatic |
Availably structure: | Straight, tee, U-type, tank bottom |
Control: | Smart valve positioner / C-TOP control / position sensor |
Certificate: | 3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, etc |
Logo of product: | With "DONJOY" or customized |
Combination of valve and actuator: | Flexible combination on valve body |
Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
Certificate
3A / 54-02 (1580), PED / 97 / 23 / EC, FDA. 177. 2600
Diaphragm valve Gasket
1. EPDM/ Silicone
2.EPDM+PTFE Ahersive
3.EPDM/EPDM Seperate
Product drawing
Valve Body
Surface Ra
Body :
Casting/ Forging
Packaging
Bubble pack for each valve. Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery
Usually within 20 days after receiving T/T down payment.
