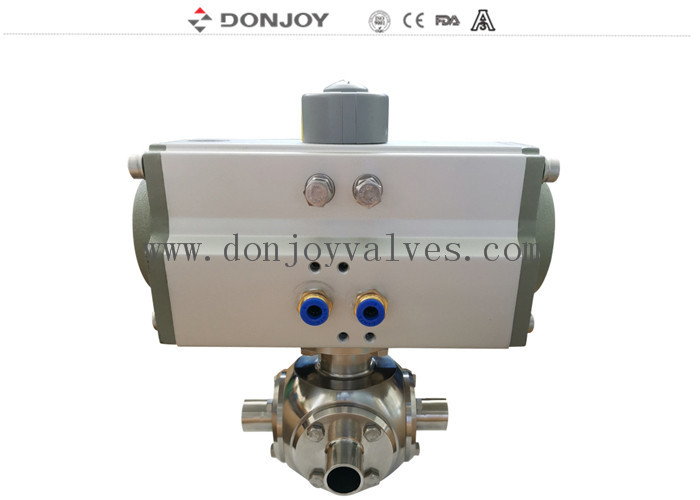

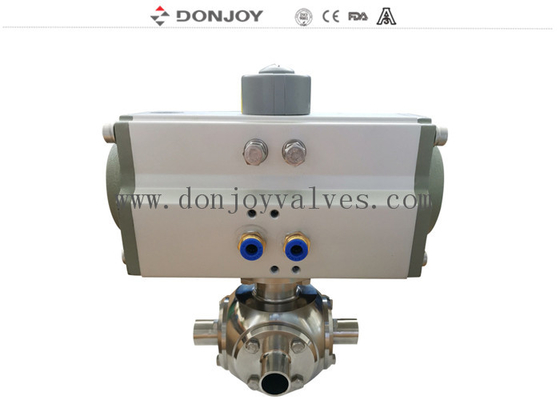

0.5 Inch T Type 3 Way Ball Valve With Tri Clamp And Horizontal Aluminum Actuator

0.5 Inch T Type 3 Way Ball Valve With Tri Clamp And Horizontal Aluminum Actuator

    • 0.5 Inch T Type 3 Way Ball Valve With Tri Clamp And Horizontal Aluminum Actuator
    • 0.5 Inch T Type 3 Way Ball Valve With Tri Clamp And Horizontal Aluminum Actuator
  • 0.5 Inch T Type 3 Way Ball Valve With Tri Clamp And Horizontal Aluminum Actuator

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQD100Q2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Ball Valve Size Of Panel: DN10-DN20 ,1/2"-3/4"
    Operation: Pneumatic, Manual,electric Modes Material: Ss 304/316L
    Connection: Welded, Clamped, Thread Etc Ball: T Port, L Port
    Country Of Original: China
    High Light:

    0.5 Inch Sanitary Ball Valve

    ,

    Tri Clamp Sanitary Ball Valve

    ,

    Horizontal Actuator Sanitary Ball Valve

    0.5 inch T type 3 way ball valve with tri clamp and Horizontal Aluminum actuator



    Detail:

    Manual Ball Valve, Pneumatica  ball valve, C-top Pneumatica ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve, T type/ L type

    Connection: Clamped, Thread, Welding etc

    Certificate: PED, 97/23EC, 3A



    Specification

    Product Name: 0.5 inch T type 3 way ball valve with tri clamp and Horizontal Aluminum actuator
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10Bar
    Max. Working Temperature: 120 degree C
    Availably size: DN10-DN20 or 1/2" - 3/4"
    Availably connection: Weld,Clamp,Thread
    Ball
    Tport , L port
    Operated: Manual,Pneumatic,Electric,control Head
    Certificate: PED, 97/23EC



    Applications:

    The hygienic design of the valve is widely used in the field of food processing, beverage, fruit juices, wine, biopharmaceutical and very flexible body combinations for example, L-Port or T-Port can be interchangeable on-site inlet, outlet to be any combination of change can guarantee dead angle, no retention.

    0.5 Inch T Type 3 Way Ball Valve With Tri Clamp And Horizontal Aluminum Actuator 0

    Design and Features

    Free of maintenances

    Compact and portable

    Small operating torque

    Gasket complies with PTFE FDA 177.2600

    Hand lever can be installed on the side of valve body, no matter of the flow direction.

    Connection ends: thread, clamp, weld, flange, DIN, SMS,RJT,FIL

    It can be installed with pneumatic and electric actuators.

    The part contacted with media is AISI 304/316L

    Other parts AISI 304

    Certifications: PED, 97/23EC



    Drawing



    0.5 Inch T Type 3 Way Ball Valve With Tri Clamp And Horizontal Aluminum Actuator 1

    0.5 Inch T Type 3 Way Ball Valve With Tri Clamp And Horizontal Aluminum Actuator 2

    0.5 Inch T Type 3 Way Ball Valve With Tri Clamp And Horizontal Aluminum Actuator 3

    Relative products

    0.5 Inch T Type 3 Way Ball Valve With Tri Clamp And Horizontal Aluminum Actuator 4



    Competitive Advantage:

    Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
