DJ-LX-25 20000L/H Centrifugal Pump For Water And Beverage

DJ-LX-25 20000L/H Centrifugal Pump For Water And Beverage

DJ-LX-25 20000L/H Centrifugal Pump For Water And Beverage

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE,3A,FDA
Model Number: LX

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: carton box
Payment Terms: T/T, LC, Credit Card
Contact Now
Detailed Product Description
Materials: SS304 / SS316L Operation: ABB Motor
Mechanical: Single / Double Seal Connection Way: Thread, Clamp, Flange, Welding, Union
Power: 380V/ 50HZ, 440V/60HZ Medium: Beer / Drug / Beverage Etc.
High Light:

20000L/H Centrifugal Pump

,

Water Beverage Centrifugal Pump

,

SS304 Double Seal Centrifugal Pump

DJ-LX-25, 20000L/H Centrifuagal pump for water and beverage



Soluction for high efficiecy, low noise, clamp pump head, easy to clean, simple and economical maintenance, high purity




Description

1. It is applied to various working conditions during low flow demand, such as biopharmaceutical, fine chemical industry, beer beverage, laboratory, etc.

2. Certification: 3-A-02-11 NO.1759, FDA 177.2600

                             CE-MD/06-42 NO.705201616101-00



Specifications

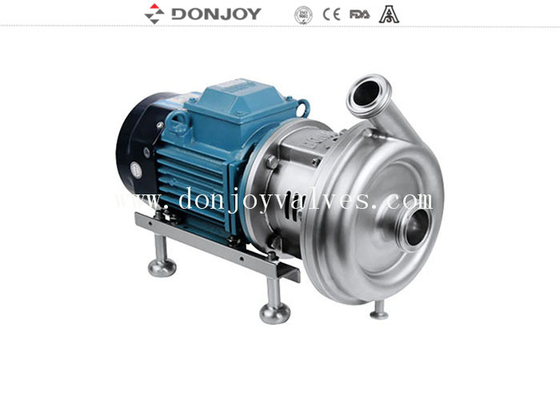

Product Name: Stainless steel High Purity Pumps centrifugal pump for fluid with ABB motor
Pump Body Material: SS304 / SS316L / 1.4301 / 1.4404
Seal Material: EPDM (Standard, FDA approval) FPM (Viton) and NBR
Max. Flow: 140 m³/h
Max. Speed: 3600 min-1
Max. Head: 70 M
Max. power 30KW

Min. power

0.55kw

Temperature Range: -30°C-130 °C
Motor: ABB / domestic / SIEMENS
Motor Frequency: 50HZ, 60HZ
Surface treatment: Inner polished and Sandblast outside
Application structure: LX
Availably connection: Tri-Clamp, Thread, Flange
Availably standard: DIN, SMS, 3A, RJT, ISO/IDF
Surface treatment:

Ra≤0.6μm , EP=Ra 0.4μm

Low discharge option : Low discharge / diaphragm valve / ball valve / butterfly valve
Application scope: Dairy,food, beverage, pharmacy, cosmetic, etc
Level: Sanitary grade


 Feature
Motor: ABB / domestic / SIEMENS Motor ( optional )
 Availabe connection: tri-clamped, threaded and Flanged.
 Available standard: DIN, SMS, 3A, RJT, ISO / IDF
 Sealing type: machanical seal
 Function: flow control



Mechanical selection (Single mechanical / Double mechanical )

Materials :

1.SIC/C/EPDM

2.SIC/C/FKM

3.C/SIC/HNBR

4.SIC/SIC/EPMD

5.SIC/SIC/FKM

6.SIC/SIC/HNBR

7.TC/TC/EPDM

8.TC/TC/FKM

9.TC/TC/HNBR

DJ-LX-25 20000L/H Centrifugal Pump For Water And Beverage 0

Applications

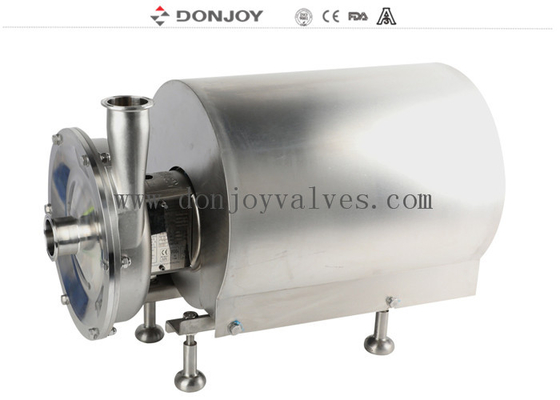

 1.  This pump is manufactured in stianless steel and with a shrouded motor.
2.  Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.



Advantange

1.Maintenance disassembly and installation can be completed without professional staff and speical tools

2.Intial use of installation debugging, even if a short reverse rotaion will not be damaged

3. Impeller and shaft are connected by kewway, impeller and mechanical seal rotating ring are connected by pin. Mechanical seal static ring and pump body are connected by special-shafped flange

4.Compatible with siingle and double mechanine seal, only need to change machine seal.



Pump inlet&outlet connection various configuration

DJ-LX-25 20000L/H Centrifugal Pump For Water And Beverage 1



Selection Table

DJ-LX-25 20000L/H Centrifugal Pump For Water And Beverage 2

DJ-LX-25 20000L/H Centrifugal Pump For Water And Beverage 3



Drawing

DJ-LX-25 20000L/H Centrifugal Pump For Water And Beverage 4

DJ-LX-25 20000L/H Centrifugal Pump For Water And Beverage 5



Curve

DJ-LX-25 20000L/H Centrifugal Pump For Water And Beverage 6



Packaging Details

Plywood case or customerized. Or as per the request of customers.


Delivery details

Usually within 20 days after receiving T/T down payment.
