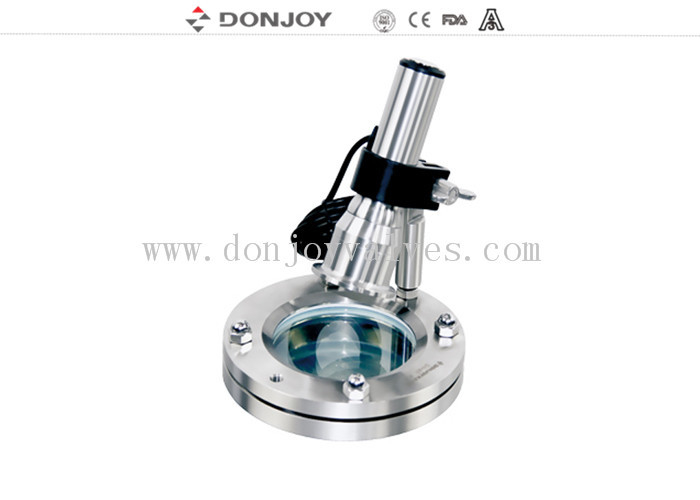

Flange Sight Glasses With DC 24V Multi Angle Light

Flange Sight Glasses With DC 24V Multi Angle Light

DN40 Stainless Steel Sight Glass

Multi Angle Light SS Sight Glass

DC 24V Stainless Steel Sight Glass

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

DN40-DN300

Contact Us

Request A Quote
Product Details
Material:
AISI 304 (1.4301) AISI 316L (1.4404)
SIZE:
1.5"-12" To DN40-DN300
Stanadard:
DIN, 3A, SMS, ISO
Connection:
Thread, Clamp, Welding, DIN, SMS, IDF
Polishing:
Mirror Polishing, Matt Polishing
Surface Treatment:
Operated By CNC Lathe
Feature:
With Stainless Steel Protective Cover
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton, Wooden Case
Delivery Time
10-30 working days
Payment Terms
T/T,L/C, Credit Card
Product Description

Flange sight glasses with DC 24V Multi-angle light​

Quick Detail
Sight glass, Flange sight glass


Size: 1.5"-12" to DN40-DN300

Gasket: EPDM NBR in accordance withFDA177.2600

Max Temperature: -10°C-130°C
Assemble flange with thread, clamp, welding, DIN, SMS, IDF
Glass: The glass with bracket can rotate at any angle or increase or decrease the height to meet various lighting need
Protective sleeve: AISI304
Surface Treatment: CNS Lathe

Specification

Product Name:

Flange sight glasses with DC 24V Multi-angle light

Material:

AISI 304 (1.4301) AISI 316L (1.4404)

Seal Material:

EPDM NBR meets FDA177.2600

Sight glass:

tempered glass

Max.temperature:

-10°C-130°C

Gasket

EPDM NBR in accordance withFDA177.2600

Available connection:

thread, clamp, welding, DIN, SMS, IDF

Available standard:

DIN, SMS, 3A, ISO

Certification:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Feature:

All stainless steel mirror lamp DC24V power supply

Advantage:

No retention, zero dead angle, high light, white cold light source,waterproof, explosion-proof

Packaging Details:

Plywood case or customerized. Or as per the request of customers

Delivery details:

10-20 days


Application
Flanged sight glass is comprised of stainless steel frame and tempered glass. Through it, operator can observe the flowing of the liquid substance clearly and precisely in the fields of food, cosmetics,pharmaceutical and fine chemicals industries.
Features
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position


Drawing of sight glass

Flange Sight Glasses With DC 24V Multi Angle Light 0
Flange Sight Glasses With DC 24V Multi Angle Light 1
Packaging
Plywood case or customerized.
Or as per the request of customer

Delivery
Normally, 10-20 days
