SS316L DONJOY TUL-80 rotary lobe pump with Mechanical motor and trolley

SS316L DONJOY TUL-80 rotary lobe pump with Mechanical motor and trolley

self priming pump

high pressure pumps

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

TUL-80

Contact Us

Request A Quote
Product Details
Materials:
SS316L / 1.4404
Type:
TUL - 80
Operation:
Mechanical ABB Motor
Mechanical:
Flush Mechanical Seal / Double Seal
Connection:
3" Clamped
Power:
380v / 50HZ
Feature:
Mechanical Stepless Speed
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden box
Delivery Time
10-30 working days
Payment Terms
T/T, LC, Credit Card
Supply Ability
20 sets 30 working days
Product Description

SS316L DONJOY TUL-80 rotary lobe pump with Mechanical motor and trolley

Description
Options
1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM
2. Single seal, Double Mechanical Seal
3. Rotors: 2 leave rotor, 3 leave rotors, Butterfly rotors, Single Butterfly rotors
4. Voltage(v)220-240, 360-400, 420-460, 630-690
5. Relief valve at front cover r external by –pass
6. Built-in safety valve
7. End-face heat jacket
8. Complete heat jacket
9. Vertical TUR Series or Horizontal TUL Series
10. Different Drives and Fixes
11. Assembly on a stainless steel baseplate
12. Motor Type B5 motor frequency 50HZ, 60HZ


Specifications

Product Name:

SS316L TUL-80 mechanical stepless speed lobe pump with Mechanical motor for regulating fluid

Material:

SS304/SS316L/1.4301/1.4404

Max. Flow:

62m3/h / 395 GPM

Max.pressure:

12bar/ 174PSI

Max. working temperature:

150 C / 302 F

Max. rev:

1450 rmp

Rotor Type:

2-leaves, 3-leaves, butterfly, signal butterfly

Mechanical seal:

SIC/SiC/EPDM(Standard)

Motor power:

1.5kw, 2.2kw, 3kw….11kw

Sealing option:

Sanitary single mechanical seal/
Double mechanical seal with cooling system

Voltage:

110V, 220V, 380V

Motor:

ABB,SEW, 50hz/ 60hz

Surface treatment:

Inner polished and Sandblast outside

Availably connection:

Clamp, Thread Butt weld, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Certificate:

3A/54-02 (1580), PED/97/23/EC,
FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc


Design and Features
1. Horizontal TUL, Vetrical TUR
2. Bare-Shaft Consturction
3. Hygienic Design of the attachement of the rotors
4. Sanitary Mechanical Seal, Easy cleaning and maintenace
5. Applied to CIP Cleaning and sic Sterlization
6. according to USA 3A Standard


Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.


Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton


Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”


Delivery details
Usually within 20 days after receiving T/T payment

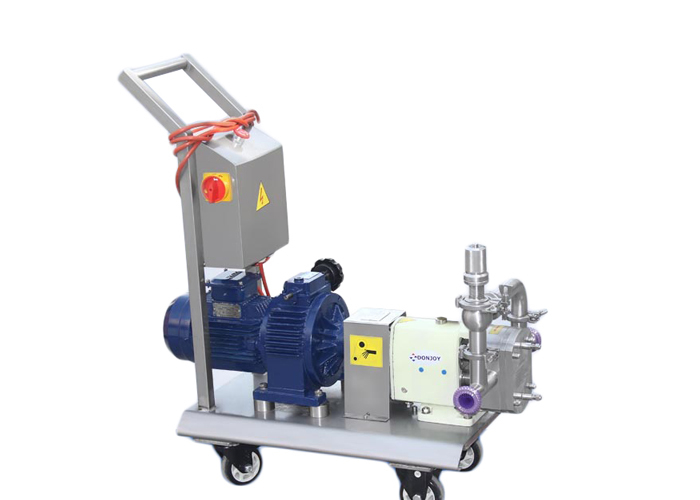

SS316L DONJOY TUL-80 rotary  lobe pump with Mechanical motor and trolley 0
