Place of Origin:
CHINA
Brand Name:
DONJOY
Certification:
CE,3A,FDA
Model Number:
BS - 12
Contact Us

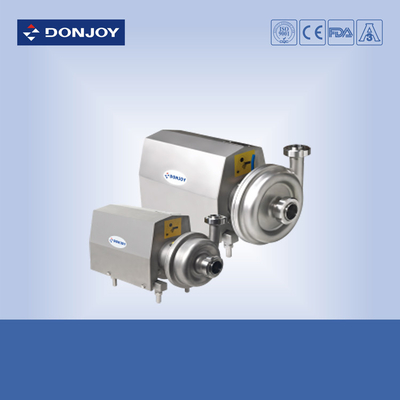

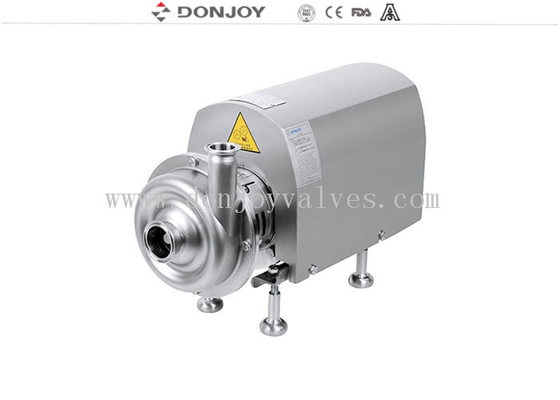

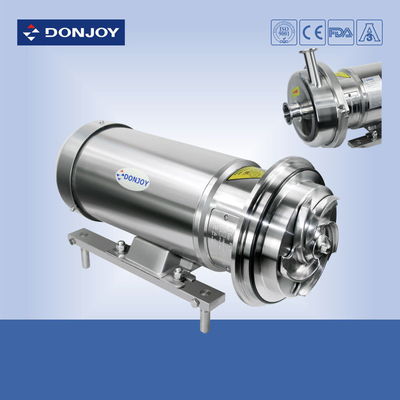

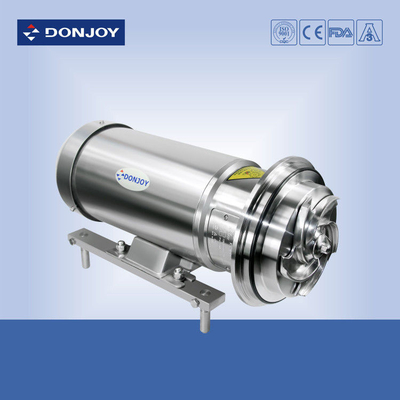

BS Close impeller stainless steel 316L Sanitary ocentrifugal pump for alcohol trasfer
Quick Detail: Mechnical Seal Pump, Food pump, Milk Pump, Beer Pump, Beverage Pump, Water Pump
Description
Options
1. Mechanical seal: SIC / SICE/ EPDM, TC / TC/EPDM
2. Gasket: viton / NBR/EPDM
3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF), Welding
4. Motor: 2900, 1450, 3600 Min / 1,50HZ, 60HZ
Specifications
|
Product Name: |
KS-35-1,SS316L Sanitary centrifugal pump open impeller for alcohol trasfer |
|
Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM(Viton) and NBR |
|
Max. Flow: |
150 m3/h |
|
Max. Speed: |
3600 min-1 |
|
Max. Head: |
70H(m) |
|
Max. Working Pressure: |
7 bar/99 PSI |
|
Max. Working Temperature: |
120 °C |
|
Mechanical seal: |
SIC/SiC/EPDM(Standard), C/SIC, TC/TC |
|
Sealing type: |
Flushed double mechanical seal/single mechanical seal(standard) |
|
Motor power: |
1.1kw, 1.5kw, 2.2kw |
|
Voltage: |
110V, 220V, 380V |
|
Motor: |
ABB/domestic/SIEMENS |
|
Motor Frequency: |
50HZ, 60HZ |
|
Surface treatment: |
Inner polished and Sandblast outside |
|
Classicification: |
Model KS and Model BS |
|
Availably connection: |
Tri-Clamp, Thread, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
Low discharge option : |
Low discharge/diaphragm valve/ball valve/butterfly valve |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
| Rotors | Double rotors |
|
Packaging Details: |
Plywood case or customerized. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment.
|
What is Hygienic Centrifuge Pumps?
Donjoy hygienic centrifuge pumps are used in food, pharmaceutical and cosmetics industries. Clamp type connection is used. 316 L stainless steel is used for body material.

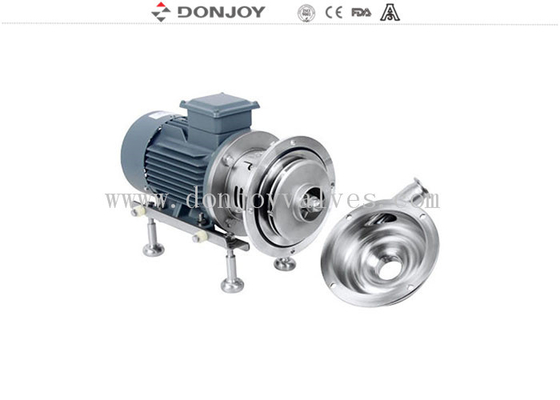

Special design of its fan and cover it reduces friction and eliminates non hygienic blind spots. Also with the special design velocity of the fluid reaches maximum levels and with easy montage and de-montage it gives user easy maintenance and cleaning option.
Technical features:
• Max flow rate: 150m3/h
• Max Head: 70m
• Max Temperature :120oC(30 minutes at CIP/SIP applications)
• Max rpm :3600 rpm
Materials:
• Body and Fan: AISI 316L
• Gasket: EPDM (suitable for food)
• Mechanical shaft seal
Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
2.Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Model table
Drawing
DONJOY general-Catalog(1-20).pdf
DONJOY general-Catalogs(21-40 page).pdf
Please check the form below to choose which model is suitable for you.
