CIP - 20 self priming pump for pipeline cleaning and return,High Purtiy CIP Pumps

CIP - 20 self priming pump for pipeline cleaning and return,High Purtiy CIP Pumps

lobe rotary pump

high pressure pumps

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

CIP-20

Contact Us

Request A Quote
Product Details
Item:
Self - Priming Pump
Model:
CIP - 20
Selection:
18T / 24M
Mechanical:
Single Seal
Inlet:
3" Thread/Clamp/Ferrule
Outlet:
2.5" Thread/Clamp/Ferrule
Function:
Flow Control
Gasket:
FPM (Viton) NBR
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
Wooden box
Delivery Time
10-30 working days
Payment Terms
T/T, LC, Credit Card
Supply Ability
20 sets 30 working days
Product Description

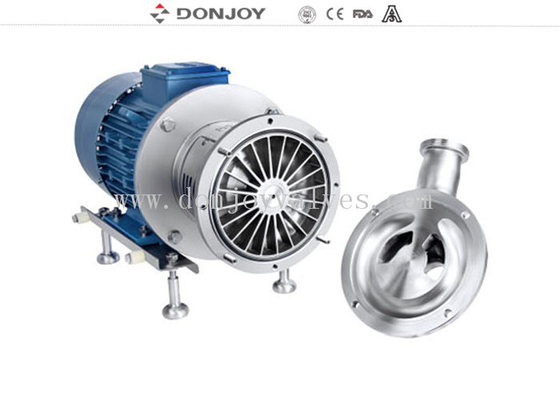

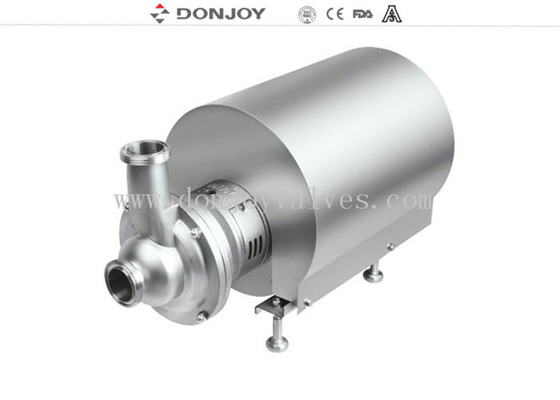

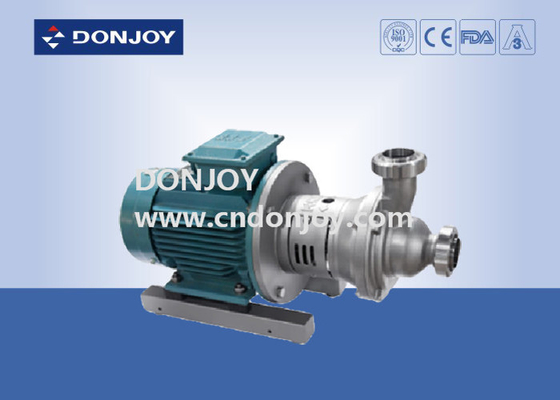

CIP - 20 self priming pump for pipeline cleaning and return

Description
Options
1. Mechanical seal: C/SIC/EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange (DIN, SMS, RJT, IDF)

Specifications

Product Name:

CIP-20 316L  self priming  pump without cover  for pipeline Cleaning and return

Max. Flow:

35 m³/h

Max. Speed:

3600 min-1

Max. Head:

42H(m)

Max. Working Pressure:

4.2Bar

Max. Working
Temperature:

120 °C

Material connecting with other part:AISI - 316 / 304
Energy efficiency of motorIEC EN IE2

Sealing type:

Flushed double mechanical seal/single mechanical seal(standard)

Motor power:

2.2kw,3.0KW,5.5KW,7.5KW,11KW,15KW

Voltage:

110V, 220V, 380V

Motor:

ABB/domestic

Motor Frequency:

50HZ, 60HZ

Surface treatment:

Inner polished and Sandblast outside

Availably connection:

Tri-Clamp, Thread, Flange

Availably standard:

DIN, SMS, 3A, RJT, ISO/IDF

Operated:

Electic

Low discharge option :

Low discharge/diaphragm valve/ball valve/butterfly valve

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Plywood case or customerized. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.


Material
The material connected with other parts: AISI - 316 / 304
The material in other parts: AISI - 304
Gasket (standard): EPDM / (FDA)
Mechanical seal ring (standard): SIC / SIC / EPDM

Applications
1.This pump is a sanitary lateral design self priming pump, it's suitable for food processing, phamacy and chemical industry.
2.It is specially designed for pumping mterials containing air or gas, and it can also be used for negative sution with prior priming as well as with filtration equipments
3. it can be sued for wine, oil, syrups, volatile products such as alcohol, acetone and other solvents or with products at temperatures close to boiling point. However, the main use of this pump is for cip recover.
