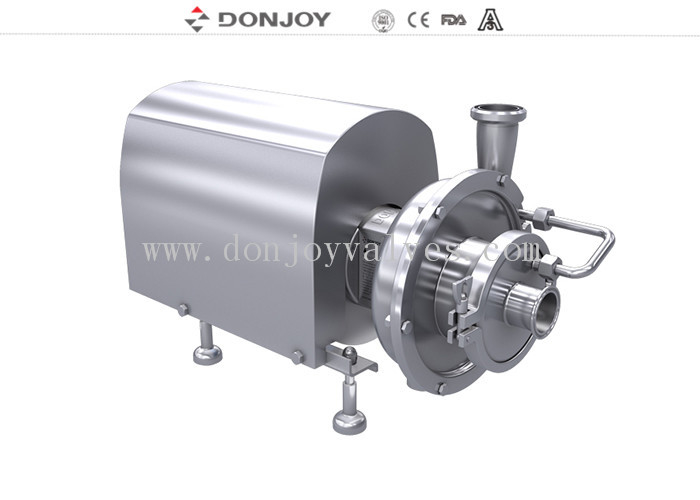

ZLX-30 304 self priming centrifugal pumps for oil and wine processing

ZLX-30 304 self priming centrifugal pumps for oil and wine processing

    • ZLX-30 304 self priming centrifugal pumps for  oil and wine processing
    • ZLX-30 304 self priming centrifugal pumps for  oil and wine processing
    • ZLX-30 304 self priming centrifugal pumps for  oil and wine processing
    • ZLX-30 304 self priming centrifugal pumps for  oil and wine processing
  • ZLX-30 304 self priming centrifugal pumps for  oil and wine processing

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: ZLX-30

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Wooden box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 20 sets 30 working days
    Contact Now
    Detailed Product Description
    Materials: Sanitary Self - Priming Pump Flow: 10T/60M/5.5KW
    Mechanical: Single Sealing Parts Inlet: 2" Thread/Clamp/Ferrule
    Outlet: 1" Thread/Clamp/Ferrule Medium: Flow Tranfering And Controlling

    ZLX-30 304 self priming centrifugal pumps for oil and wine processing


    Description
    Options
    1. Mechanical seal: C/SIC/EPDM
    2. Gasket: viton/NBR
    3. Connection: Thread, Clamp, Flange(DIN, SMS, RJT, IDF)



    Specifications

    Product Name:

    CIP+ - 40, 304 stainless steel self priming CIP pump for regulating syrup, oil and wine processing

    Valve Body Material:

    Stainless steel 304 / 316L

    Seal Material:

    EPDM (Standard, FDA approval) FPM(Viton) and NBR

    Max. Flow:

    35 m³/h

    Max. Speed:

    3600 min-1

    Max. Head:

    42H(m)

    CIP selection: As per real situation
    Driving mode: By impeller installed on the inlet.

    Mechanical seal:

    C/SIC/EPDM

    Sealing type:

    Flushed double mechanical seal/single mechanical seal (standard)

    Motor:

    ABB / domestic is optional

    Motor Frequency:

    50HZ, 60HZ

    Surface treatment:

    Inner polished and Sandblast outside

    Application structure:

    KS/BS

    Available connection:

    Tri-Clamp, Thread, Flange

    Available standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Electic

    Low discharge option:

    Low discharge/diaphragm valve/ball valve/butterfly valve

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Packaging Details:

    Plywood case or customerized. Or as per the request of customers.

    Delivery details:

    Usually within 20 days after receiving T/T down payment.



    Applications
    1.This pump is a sanitary lateral design self priming pump,it's suitable for food processing, phamacy and chemical industry.
    2.The pump is designed a side way pipe between inlet and outlet
    3.It is specially designed for pumpling mterials containning air or gas, and it can also be used for negative sution with prior priming as well as with filtration equipment
    4. It can be sued for wine, oil,syrups, volatile products such as alcohol, acetone and other solvents or with products at temperatures close to boiling point.However, the main use of this pump is for cip recover.


    Competitive Advantage
    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”



    Model Selection Table

    ZLX-30 304 self priming centrifugal pumps for  oil and wine processing
