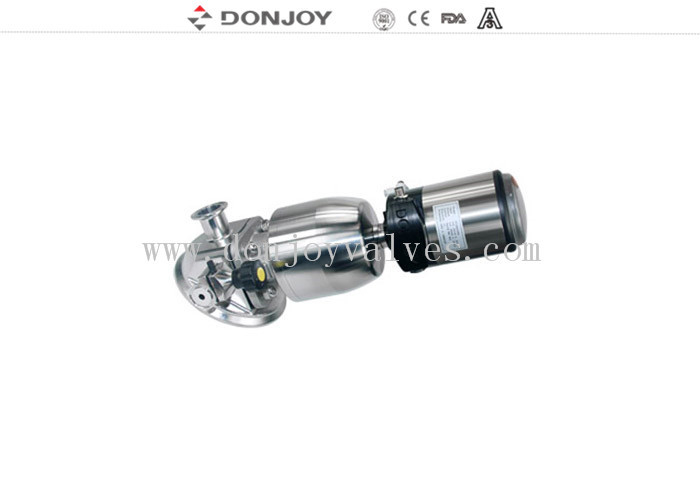

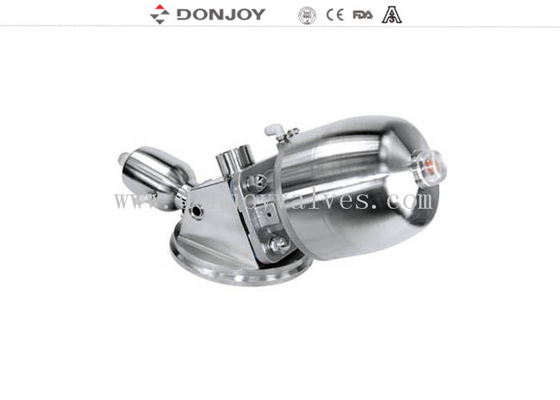

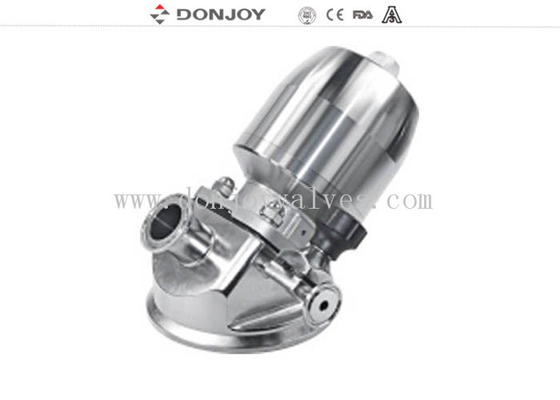

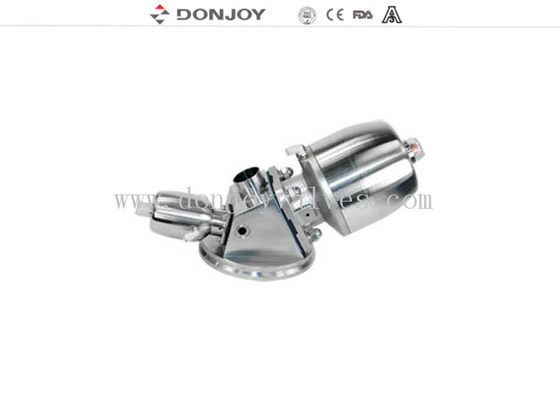

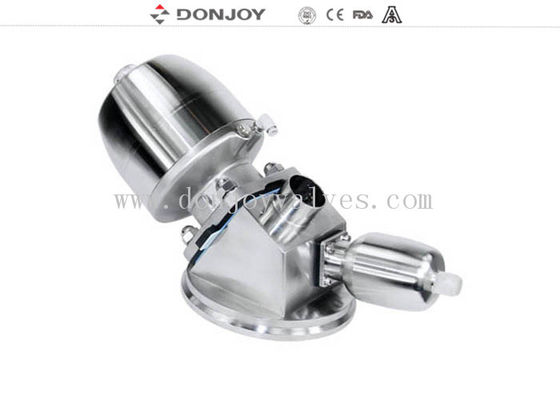

316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''

316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''

    • 316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''
    • 316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''
    • 316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''
    • 316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''
    • 316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''
    • 316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''
  • 316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''

    Product Details:

    Place of Origin: China
    Brand Name: DONJOY
    Certification: 3A,ISO,FDA,CE
    Model Number: NO. G-K

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: SS Pneumatic Tank Bottom Diaphramg Valve Materials: SS316L / 1.4404
    Size: 1'' - 4'', DN25 - DN100 Operation: Pneumatic
    Connection: Clamp Gasket: EPDM + PTFE
    Structure: Three Ports With One Or Two Control Valve Application: Be Installed On Tank

    316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm



    Valve 1'' - 4''















    Description:



    Diaphragm valves, manually or pneumatically operated, are specifically designed for use on



    hygiene andaseptic processes in the pharmaceutical industries.





    The valve is excellent for flow control as well as open/close control





    The diaphragm valves are better in feature of flow in comparison with other valves.

    It is eaiser to clean up and better to process the substance with particles.

    The phenomenon of air pocket is rare during application of flow control.












    Specifications




    Product Name:


    Pneumatic Tank Bottom Valve with Plastic Actuator















    Diaphragm


    Single diaphragm:sillcone/EPDM/FPM gasket


    One piece adhesive diaphragm: PTFE+EPDM


    Two pieces: PTFE+EPDM


    Mini-type: single (EPDM/ SILICONE/ FPM)


    Double(PTFE+EPDM)


    Max.Working Temperature:


    -30degree c to 130 degree c (depending on diaphragm)


    Max.Working Pressure:


    6 bar to 8 bar(depending on diaphragm)


    Valve body


    casting body or forging body 1.4404/316L


    Available size:


    DN25-DN100, 1 inch- 4 inch


    Available connection:


    Clamp / welding / special connection


    Available standard:


    3A /BPE / DIN / ISO / IDF


    Operation:


    Manual, Pneumatic


    Available structure:


    tank bottom valve, tank bottom valve with sampling valve


    Control:


    Smart valve positioner / C-TOP control / position sensor


    Certificate:


    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600


    Application scope:


    Dairy,food, beverage, pharmacy, cosmetic, etc






    Structure


    Three ports with two control valves


    Three ports with one control valves


    Body type


    MG-32A,MG-31A,M-32B













    Various configuration of Diaphragm valve




    Pneumatic Operation


    1.Stainless steel actuator



    2. Plastic actuator



    3. IL-TOP positioner



    4. C-TOP controller



    5. Positioner sensor














    Manual Operation


    6. Plastic Handle


    7. Stainless steel handle








    Valve Body Material


    8. Body: Casting / Forging








    Valve positioner Technical specifications:



    Size:1"-4",DN20-DN100



    Power supply:DC 24V



    Signal input:0/4-20mA, 0-5/10V(standard)



    Output feedback:4-20mA, 0-10V(option)



    Bus: DEVICE NET BUS



    Actuator:plastic and stainless steel



    grade: IP67














    Product drawing


    316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''



    316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''






    Product display


    316L Pneumatic or Manual Tank Bottom Sanitary Diaphragm Valve 1'' - 4''
