Stainless steel 304 weld sanitary level butterfly valves of ball type with electric actuator

Stainless steel 304 weld sanitary level butterfly valves of ball type with electric actuator

sanitary butterfly valve

pneumatic butterfly valve

Place of Origin:

China

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Contact Us

Request A Quote
Product Details
Product Name:
Electric Butterfly Valve
Materials:
304 / 316L
Size:
DN10 - DN300, 1/2" - 12"
Operation:
Electric
Connection:
Welded
Feature:
Butterfly
Structure:
With Electric Actuator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

Stainless steel sanitary level butterfly valves of ball type with electric actuator​

Specifications

Product Name:

Stainless steel sanitary level butterfly-type ball valve with electric actuator for fluid regulation

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 degree C

Available  size:

DN10-DN300, 1/2"-12"

Available connection:

Clamp/welding/thread/special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual, Pneumatic, Electric

Handle application:

Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.


Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining

Options
Gasket: NBR / MVQ / FPM
The pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Display

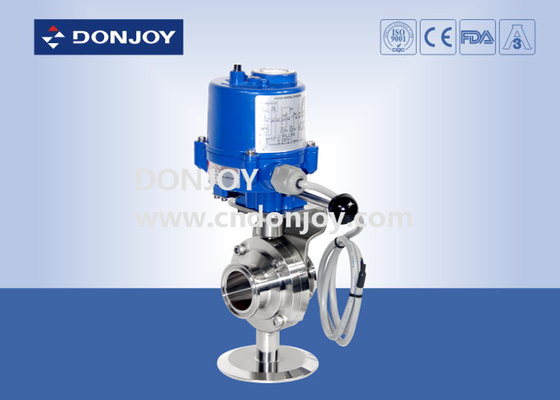

Stainless steel 304 weld sanitary level butterfly valves of ball type with electric actuator 0

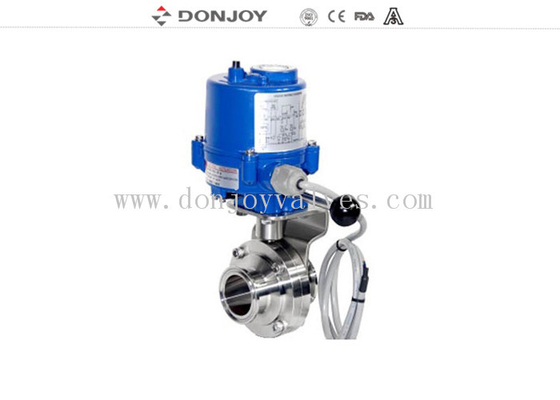

Electric actuator

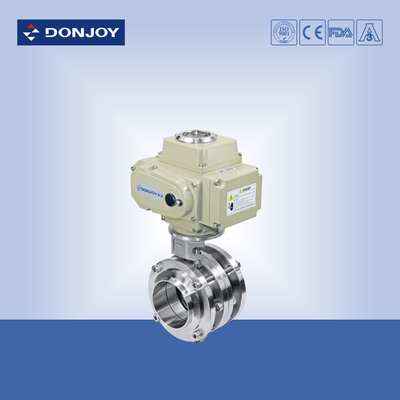

Stainless steel 304 weld sanitary level butterfly valves of ball type with electric actuator 1
