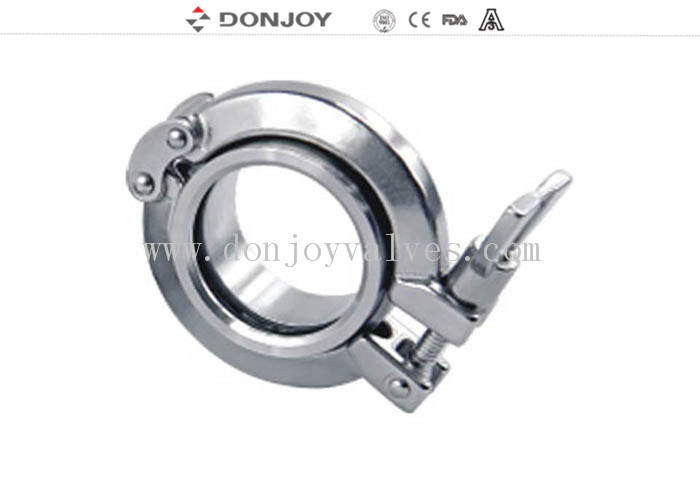

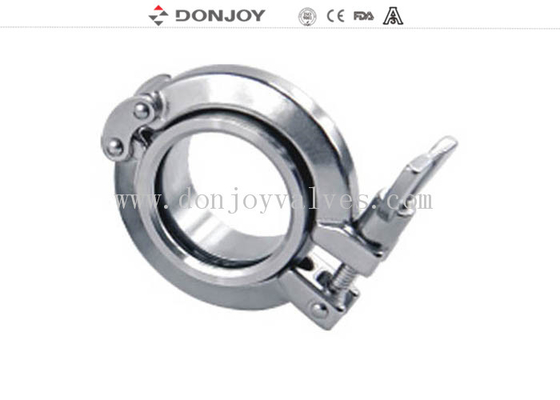

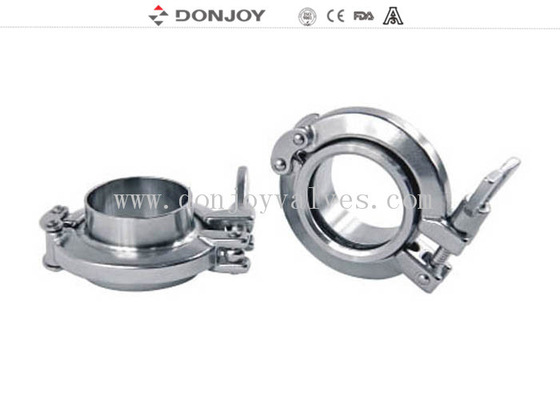

316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass

316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass

    • 316L Stainless Steel Clamp Union Sight Glass  1.5 inch with tempered glass
    • 316L Stainless Steel Clamp Union Sight Glass  1.5 inch with tempered glass
  • 316L Stainless Steel Clamp Union Sight Glass  1.5 inch with tempered glass

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.VSJ500N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Delivery Time: 10-30 working days
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Item Name: DONJOY Clamp Union Sight Glass SIZE: DN25-DN300/1"-12"
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread
    Surface Finishing: External Or Internal Polishing Using: Could Be Used Vertically Or Horizontally

    316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass



    Brief Description

    Clamp union Sight Glass

    Size:1 inch - 12 inch

    Operation mode:  Manual

    Gasket: EPDM, PTFE



    Specification

    Product Name:

    316L Stainless Steel Clamp Union Sight Glass 1.5 inch with tempered glass

    Valve Body Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    EPDM,PTFE,SILICON,etc

    Sight glass:

    tempered glass

    Max.temperature:

    120 degree

    Availably connection:

    Clamp, Thread, weld, Flange

    Availably standard:

    DIN, SMS, 3A, ISO

    Certificate:

    3A, PED, FDA, ISO

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Model of tubular sight glass:

    DIN-VSJ130N1, IDF-VSJ130N1, VSJ130N1, SMS-VSJ130N1

    Standard of gasket:

    FDA177.2600



    Application
    Clamp union sight-glass is comprised of stainless steel frame and glass.Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industuries.


    Design
    360° full angle for observation
    Can be used in vertical or horizontal position
    Could be installed with light and wipper.
    Parts contact with liquid : ASME 316L/304


    Detailed Instruction

    316L Stainless Steel Clamp Union Sight Glass  1.5 inch with tempered glass
