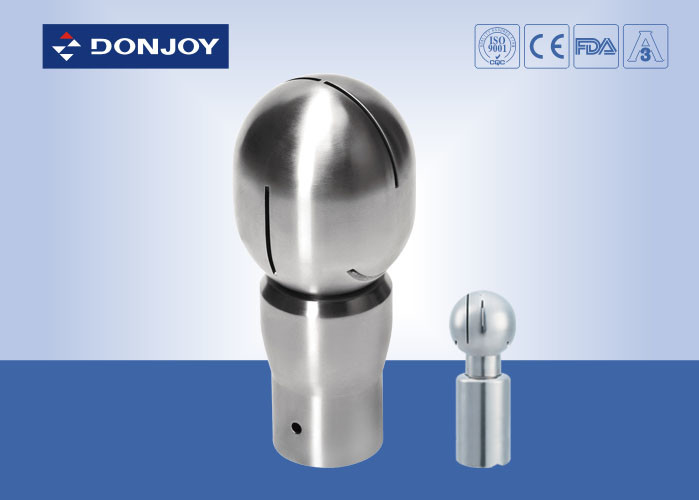

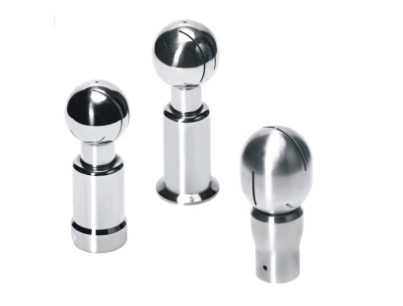

SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball

SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball

    • SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball
    • SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball
  • SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY Material: SS304, SS316L
    Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,pin Connection
    Polished: Mirror, Matt Suggest Pressure: 6 Bar



    SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball



    Quick Detail



    Cleaning Ball



    Type: 360 Degree, 180 Degree, 270 Degree



    Nozzle Size:5mm, 6mm



    Specification





    Product Name:

    Rotary Tank cleanerl. Spary claing ball, Elliptial / Round Ball,Thread Connection

    Material:

    SUS304/316L;PTFE

    Flow:

    4-45m³/h

    Inlet Pressure:

    4-10 bar

    Suggest Pressure:

    6 bar

    Availably  size:

    1"-2.5"

    Connection way:

    thread BSP,clamp Pin, Welded

    Max temperature:

      95°C

    Max environment temperature:

    140°C

    Application Scope:

    Widely used  in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage

    Typical application:

    process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding

    Advantages:

    Self-cleaning; low liquid consumption; heath design

    Typical cleaning methods:

    fixed installation CIP system

    Packaging Details:

    Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

    Delivery details:

    Usually within 20 days after receiving T/T down payment.


















































    Typical Application



    1.Fixedinstallaiton CIP System

    2.Process Containers and reator

    3.Store tank

    4.Transport tank equipment

    5.Fermentation

    6.Yeast Breeding



    Operating Principle

    1.      Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

    2.      Rotary injector with unique self cleaning funciton, internal is completely cleaning.



    SUS304 Rotary Tank Spray Balls Thread Connection Elliptial / Round Ball



    FAQ

    1,How about the surface finishing ?

    KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be

    confirmed by customer’s requirement.



    2,If free sample available before place order ?

    Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.



    3,Is there any MOQ provide ?

    Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.



    4,Our business payment terms ?

    We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.



    5,Our standard export packing ?

    For small order: plastic package each pc to carton and then into weaving bag.

    Large order: plactic package into cartons,then cartons into plywood case.



    6,Shipment way choose ?

    Small orders will be choose by express,by airline.

    Large orders will be choose by sea.

    It will according to customer’s request.
