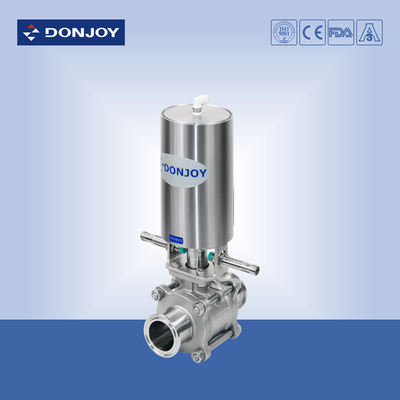

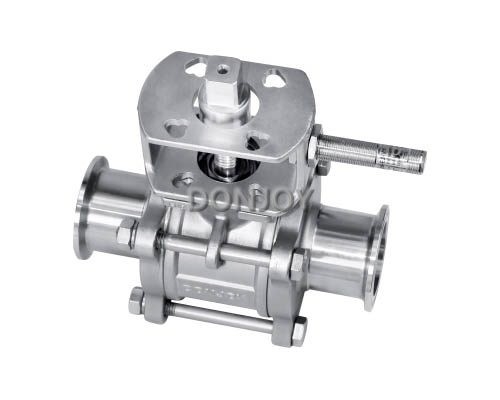

SS 3pcs Sanitary Ball Valve with optional position feedback
Description:
Type of Non-rentention ball valve
1. Pneumatic three-piece mon-retention ball valve
2. Pneumatic three-piece mon-retention ball valve with positioner
3. Pneumatic three-piece mon-retention ball valve with C-TOP
4. Pneumatic three-piece mon-retention ball valve With Mini C-TOP
5. Pneumatic three-piece mon-retention ball valve With Electric actuator
6. Aluminum acuator with positioner
Specification
| Product Name: | SS Pnuematic 3pcs Non-retention full port ball with optional position feedback |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 150 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
| Packaging details | standard export package or customerized |
| Delivery details | Usually within 20 days after receiving T/T down payment |
Applications:
The ball valve according to 3A and ASME BPE standard design, mainly used in biopharmaceutical, food and beverage, brewing, chemical and other industires.
Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,
It can be installed with stainless steel, horizontal vertical pneumatic actuator.
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
