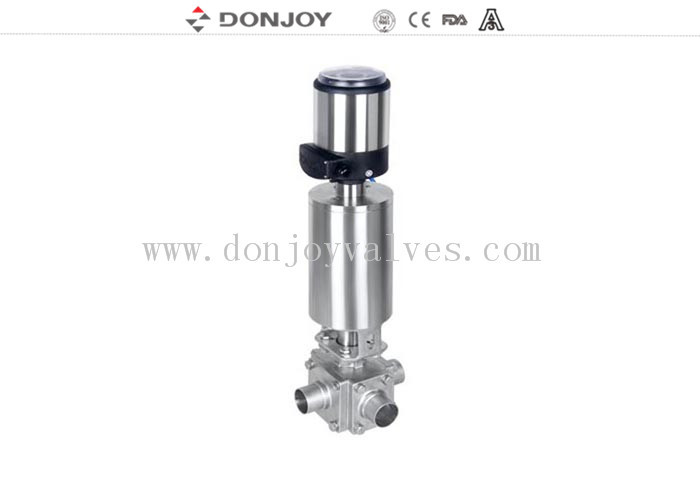

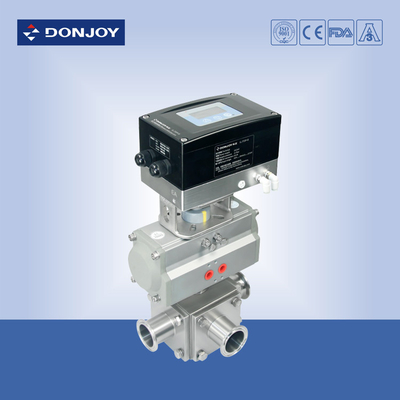

Pneumatic three-way Ball Valve with intelligent positioner IL-TOP

Pneumatic three-way Ball Valve with intelligent positioner IL-TOP

    • Pneumatic  three-way Ball Valve with intelligent positioner IL-TOP
    • Pneumatic  three-way Ball Valve with intelligent positioner IL-TOP
    • Pneumatic  three-way Ball Valve with intelligent positioner IL-TOP
    • Pneumatic  three-way Ball Valve with intelligent positioner IL-TOP
  • Pneumatic  three-way Ball Valve with intelligent positioner IL-TOP

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: 650-2000
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Structure: 3way Non-rentention Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
    Operation: Pneumatic,electric(option) Material: Ss304/316L
    Connection: Welded, Clamped, Thread, Flange Gasket: PTFE TFM

    Pneumatic three-way Sanitary Ball Valve with intelligent positioner IL-TOP





    Description:



    Size: 1/2"-4", DN15-DN100



    Temperature:-20 C to 150 C (standard) -30 C to 200 C (option)



    Pressure:10-30 bar (depending on seal material and temperature)



    Operating modes: manual, electric, pneumatic



    Device Net Bus



    Air/Spring, Air/Air



    Specification

    Product Name: Pneumatic three-way non-retention ball valve with  intelligent positioner IL-Top
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10Bar
    Max. Working Temperature: 150 degree C
    Availably size: DN25-DN100 or 1" - 4"
    Availably connection: Weld,Clamp,Thread, Flange
    Availably standard: DIN,SMS,3A
    Ball Type: T-port or L-port
    Operated: Manual,Pneumatic,Electric,control Head
    Certificate: FDA,CE,3A,ISO



    Applications:

    The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires.

    The three way non rentention ball valve has very flexible xombination. You can change the L-port and T-port at site. And the any conbibatiob of changes of inlet  and outlet can guarantee no dead angle, no retention.



    Technical Feature

    All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, the highest pressure 30Bar,automatic compensating sealing design, the advantages of samll torque, long service life,



    Competitive Advantage:

    Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

    “DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

    Pneumatic  three-way Ball Valve with intelligent positioner IL-TOPPneumatic  three-way Ball Valve with intelligent positioner IL-TOPPneumatic  three-way Ball Valve with intelligent positioner IL-TOP
