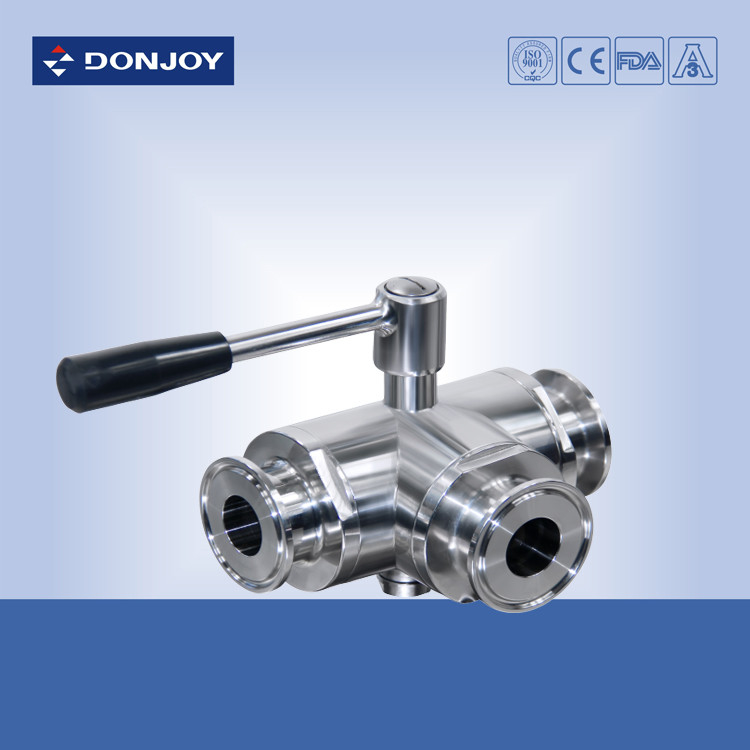

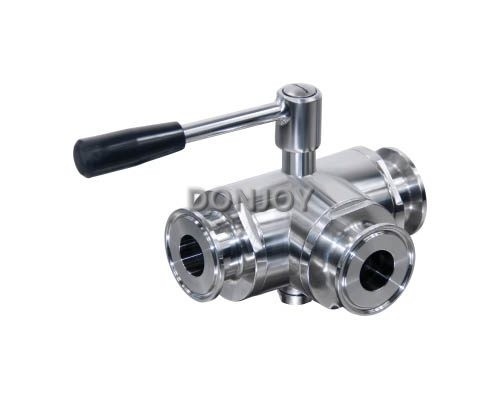

DN10-DN100 Manual Three Way Sanitary Ball Valve with clamped Connection

DN10-DN100 Manual Three Way Sanitary Ball Valve with clamped Connection

pneumatic ball valve

stainless steel ball valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VQD100Q2

Contact Us

Request A Quote
Product Details
Product Name:
Ball Valve
Size Of Panel:
DN10-DN100,1/2"-4"
Operation:
Pneumatic, Control Head,Manual
Media:
304/316L
Connection:
Welded, Clamped, Thread, Flange
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

DN10-DN100 Sanitary Manual Three Way ball valve with clamped Connection



Quickly Detail:

Manual Three way T type Ball valve

Termpreture: -20Degree to 121 Degree

Max Pressure: 10Bar

Ball Structure: 3 Way( L type or Type)

Materials: AISI304, SUS316L

Connection: Clamped, Thread, Welding,Flange

Standard: DIN,3A,SMS,ISO,IDF, RJT..

Seal Materials : PTFE

Machine Processing: The most advanced CNC machine from Japan for processing

With Cleaning and drainage port



Specification

Product Name: Vertical Pneumatic 3 way ball valve, 1/2"-4", SS304/316L Materials,Clamped
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO



Applications:

It is use for Dairy, Beverage, Food, Beer, Pharmacy, Biotechnology, Cosmetic etc



Advantage:

A. Free of Maintenances

B. compact and portable

C. small operating torque

D. gasket complies with PTFE FDA 177.2600

E. Hand lever can be installed on the side of the valve body, no matter of the flow direction

F. It can be installed with pneumatic and electrick acuators.



FAQ:



Q: May i have sample for trial order ?

A:Yes, Welcome



Q: Could I use my own logo or design on goods?

A:Yes.Customized logo and design on production are available.



Q: May I vist your factory?

A:Sure.Welcome anytime.we can also pick you up at airport and station.



Q: Can we trust you and build a long term cooperation

A: Of course. You can tust us and we have more 20 years expenrience on it and we also want to do a long term cooperation with each other.



Q: How about the Packing

A: Cartons, Wooden Case...

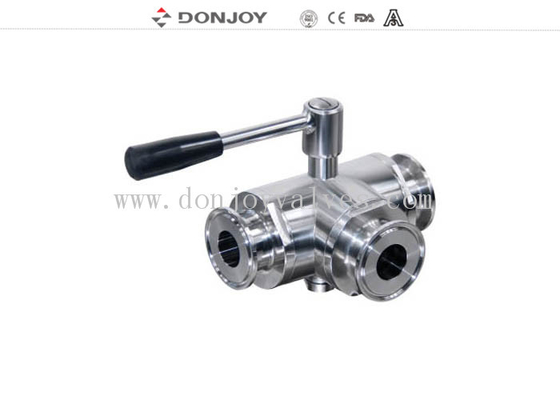

DN10-DN100 Manual Three Way  Sanitary Ball Valve with clamped Connection 0





If you need more information,Please do not hesitate to contact us.
