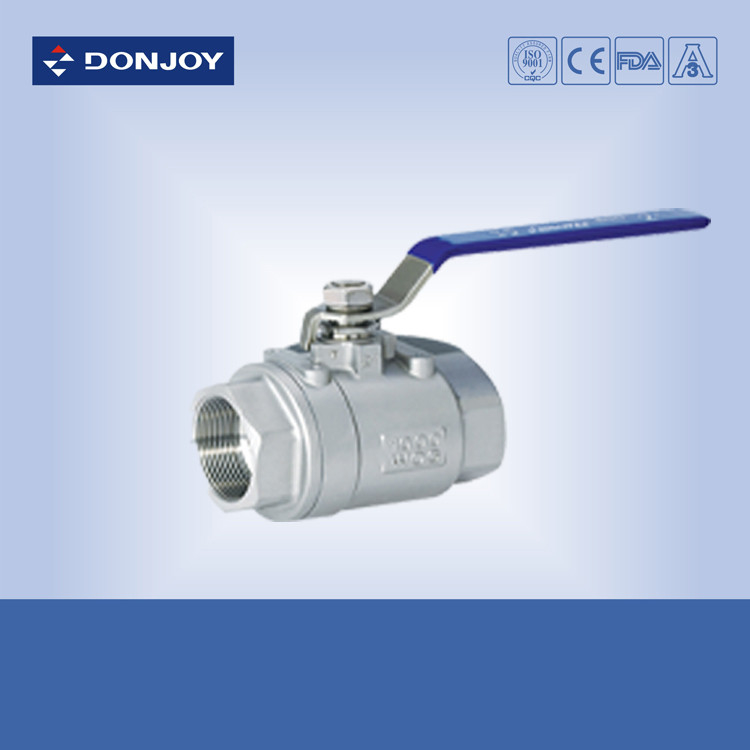

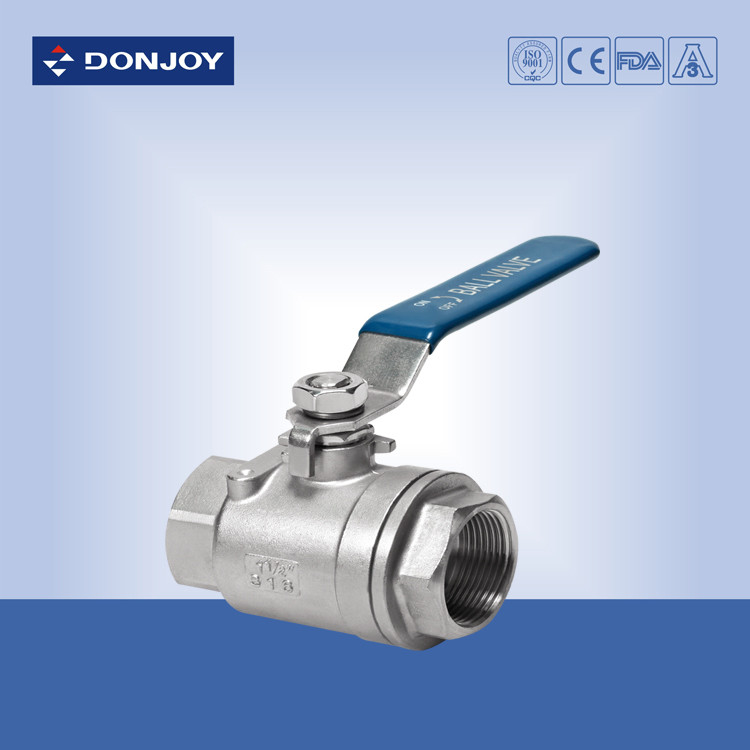

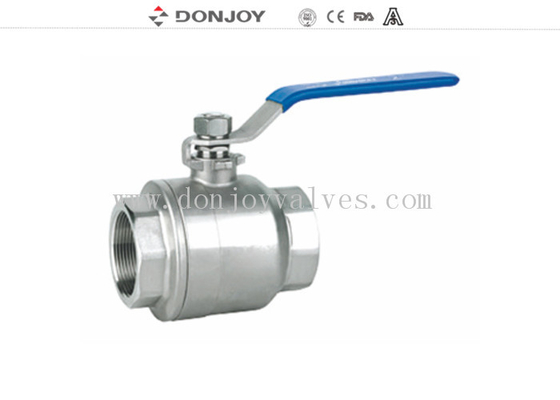

2 Peice Sanitary Ball Valve With ISO mound and handle , BSP Thread

2 Peice Sanitary Ball Valve With ISO mound and handle , BSP Thread

electric ball valve

pneumatic ball valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VQD100Q2

Contact Us

Request A Quote
Product Details
Product Name:
Industrial Ball Valve
Size Of Panel:
DN10-DN100,1/2"-4"
Operation:
Pneumatic,,Manual
Media:
304/316L
Connection:
Welded, Clamped, Thread,
Pressure:
Low Pressure
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

2 Peice Sanitary Ball Valve With ISO mound and handle , BSP Thread



Detail:

2pcs ball valve

Connection: Clamped, Thread, Welding

Standard: DIN,3A,SMS,ISO,IDF, RJT..



Specification

Product Name: 2 Peice industrial Ball valve With ISO mound and handle, BSP Thread
Valve Body Material: SS304/316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread,
Availably standard: DIN,SMS,3A
Ball Type: female ball valve
Operated: Manual,Pneumatic,Electric
Certificate: FDA,CE,3A,ISO
Packgaing details standard exporting package or as per the request of customers



Applications:

The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires



Specification

Pressure: PN1.6-6.4Mpa, Class 1.5/300, 10K/20K
Strength testing pressure: PT1.5PN
Low pressure: 0.6Mpa
Seat Testing Pressure(high pressure): 1.1PN
Applicable temperature: -40-180 degree

Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

2 Peice Sanitary Ball Valve With ISO mound and handle , BSP Thread 02 Peice Sanitary Ball Valve With ISO mound and handle , BSP Thread 1
