JIS-Flanged Sanitary Ball Valve , 3 PCS Ball valve With flange Connection

JIS-Flanged Sanitary Ball Valve , 3 PCS Ball valve With flange Connection

pneumatic ball valve

stainless steel ball valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

NO.VQD100Q2

Contact Us

Request A Quote
Product Details
Product Name:
3PCS Flange Ball Valve
Size Of Panel:
DN10-DN100,1/2"-4"
Operation:
Pneumatic,,Manual
Media:
304/316L
Connection:
Welded, Clamped, Thread, Flange
Channel:
Straight Through
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton box
Payment Terms
T/T, LC, Credit Card
Product Description

JIS-Flanged Sanitary Ball Valve , 3 PCS Ball valve With flange Connection



Detail:

 3pcs flange ball valve

Connection: Clamped, Thread, Welding

Standard: DIN,3A,SMS,ISO,IDF, RJT..

Structure: can be manual and pneumatic



Specification

Product Name: JIS-Flanged 3 PCS industrial full port Ball valve With flange Connection
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: -40 - 180 degree C
Availably size: DN15-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: straight through
Operated: Manual,Pneumatic,
Certificate: FDA,CE,3A,
Packaging details standard export package



Applications:

The 3pcs flange ball valve according to 3A and ASME BPE standard design, mainly used in oil, gasoline,water  chemical and other industires



Technical Feature

Size: 1"-4", DN15-DN100
Material: 1.4301/304, 316L/1.4404
Gasket: PTFE/TFM(FDA 177.1550)
Temperature: -40º C to 180º C(Standard)
Pressure: 10 bar
Certificate: CE, 3A, FDA
Operation: manual or penumatic actuator



Competitive Advantage:

Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.

“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

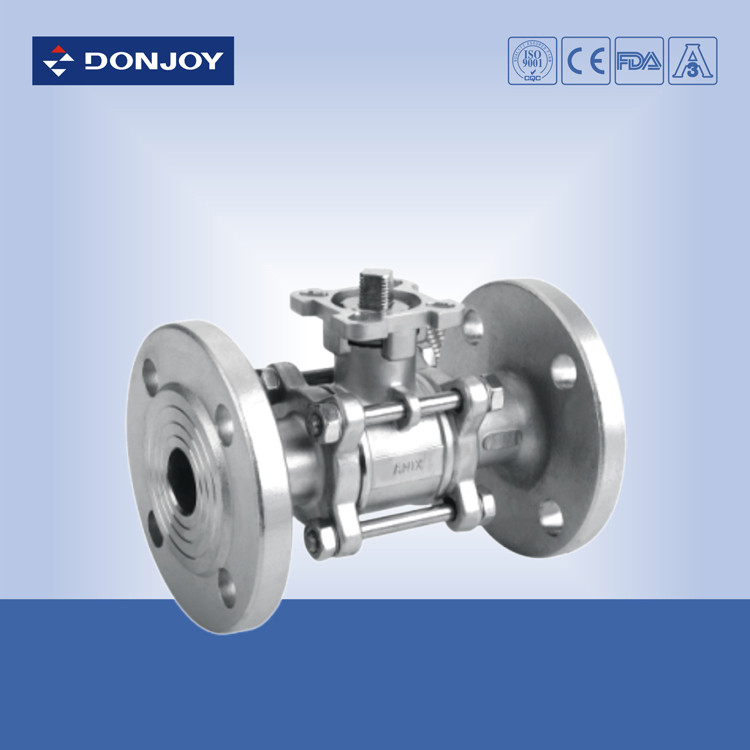

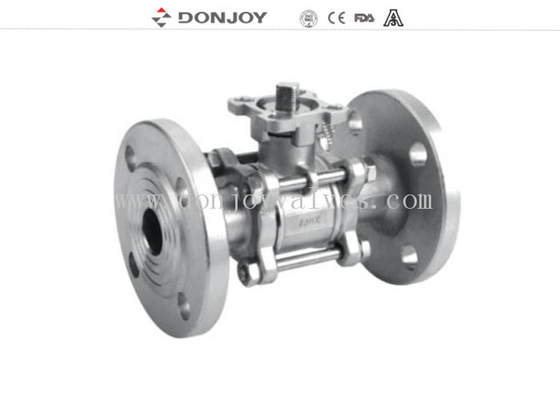

JIS-Flanged Sanitary Ball Valve ,  3 PCS Ball valve With flange Connection 0JIS-Flanged Sanitary Ball Valve ,  3 PCS Ball valve With flange Connection 1
