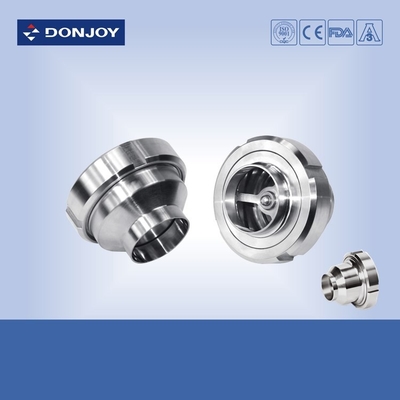

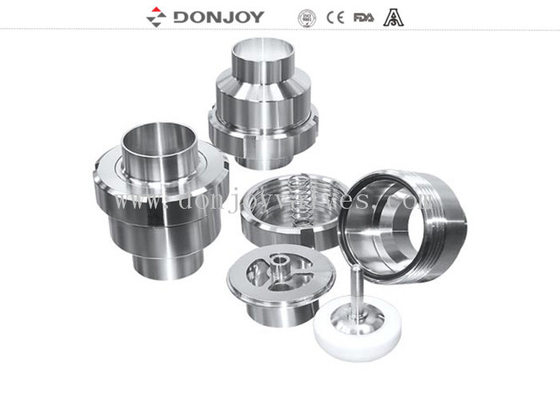

DN50 1.4301 Hydraulic Check Valves , Sanitary Check Valve For Hydraulic System

DN50 1.4301 Hydraulic Check Valves , Sanitary Check Valve For Hydraulic System

    • DN50 1.4301 Hydraulic Check Valves , Sanitary Check Valve For Hydraulic System
    • DN50 1.4301 Hydraulic Check Valves , Sanitary Check Valve For Hydraulic System
    • DN50 1.4301 Hydraulic Check Valves , Sanitary Check Valve For Hydraulic System
  • DN50 1.4301 Hydraulic Check Valves , Sanitary Check Valve For Hydraulic System

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VZH110A1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Brand: DONJOY SIZE: 1/2"-4", DN10-DN100
    Stanadard: DIN,3A,SMS,ISO,IDF,RJT Connection: Welded
    Polished: Mirror, Matt Gasket: EPDM
    Name: DN50 ,1.4301, Sanitary Check Valve, Valve Type: Valve Body Nut Connection

    DN50 1.4301 Hydraulic Check Valves , Sanitary Check Valve For Hydraulic System



    Specification

    Product Name: DN50 ,1.4301, Sanitary check valve, Valve body nut connection type check valve
    Valve Body Material: SS304 or SS316L
    Seal Material: EPDM
    Max. Working Pressure: 10Bar
    Opening pressure: 0.1-0.3bar
    Max. Working Temperature: 120 degree C
    Availably size: 1/2"-4", DN10-DN100
    Availably connection: Thread,Weld,
    Availably standard: DIN,SMS,3A,RTJ
    Certificate: FDA,CE



    Description:



    Option of Hydraulic check valves

    1 Connection: Clamp, Weld, Thread

    2. SEAL: NBR, FPM,PTEF all according to FDA177.2600

    3. Standard: DIN,SMS, RJT, IDF, ISO, 3A



    Applications:

    1. Check valve is a valve that prevents the fluid from flowing back and ensures to flow in only one direction.

    2. It can be used to prevent the flow less from returning avoid pipe-hammering.

    3. It is used in the food processing,beverages, wine, oil,cosmetics, pharmaceutical and chemical industries.



    Operating Principle

    The valve opens when the pressure of the fluid exceeds the pressure to spring, When the two pressures are equalised, the valve closes, A stronger counter – pressure also makes the valve close.



    Drawing

    DN50 1.4301 Hydraulic Check Valves , Sanitary Check Valve For Hydraulic System









    DN50 1.4301 Hydraulic Check Valves , Sanitary Check Valve For Hydraulic System
