1" - 4" 304 316 pneumatic reversing seat valve with three seats and positioner IL-TOP

1" - 4" 304 316 pneumatic reversing seat valve with three seats and positioner IL-TOP

diaphragm actuator valve

pressure release valve

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Contact Us

Request A Quote
Product Details
Material:
SS316
Operation:
Pneumatic + Control Head
Power Of Control Head:
DC24V
Brand:
Donjoy
Working Pressure:
7 Bar
Max Tem:
120 Degree
Payment & Shipping Terms
Minimum Order Quantity
1
Price
US $200 - 1,200 / Piece
Packaging Details
carton box
Delivery Time
according to order
Payment Terms
T/T, LC, Credit Card
Supply Ability
1000 Piece/Pieces per Month
Product Description

1" - 4" 304 316 pneumatic reversing seat valve with three seats and positioner IL-TOP


Quick detail
Pneumatic reversing seat valve,
divert seat valve,
regulating reversing valve


Specification

Product

1" - 4" 304 316 pneumatic diaphragm type reversing seat valve

with double seats

Valve Body Material:

SS304 316L

Seal Material:

EPDM (standard) / VITION / HNBR , compy with FDA177.2600

Working Pressure:

10bar, 20bar(optional)

Max.Working Temperature:

130 °C

Available size:

DN25 - DN100 or 1" - 4"

Available connection:

Clamp / welding / thread  /nut / flange

Available standard:

3A / DIN / SMS / RJT / ISO / IDF /BS4825

Operated:

Pneumatic

Structure

Pneumatic diaphragm type

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy, food, beverage, pharmacy, cosmetic etc

Feature:

Can resist water hammer

Position of positioner:

Be installed on sideway.


Feature
The material connected with media: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Options
Gasket: HNBR / VITION
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc


Product advantage
Positioner can be installed on sideway
Can resist water hammer
Can bear higher presure



Valve body:

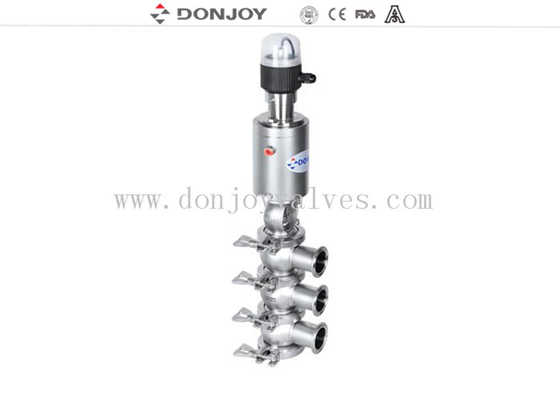

1" - 4" 304 316 pneumatic reversing seat valve with three seats and positioner IL-TOP 0

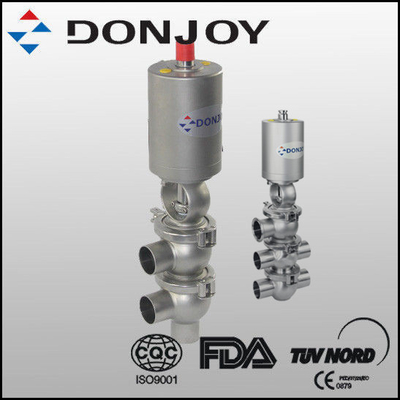

1" - 4" 304 316 pneumatic reversing seat valve with three seats and positioner IL-TOP 1
