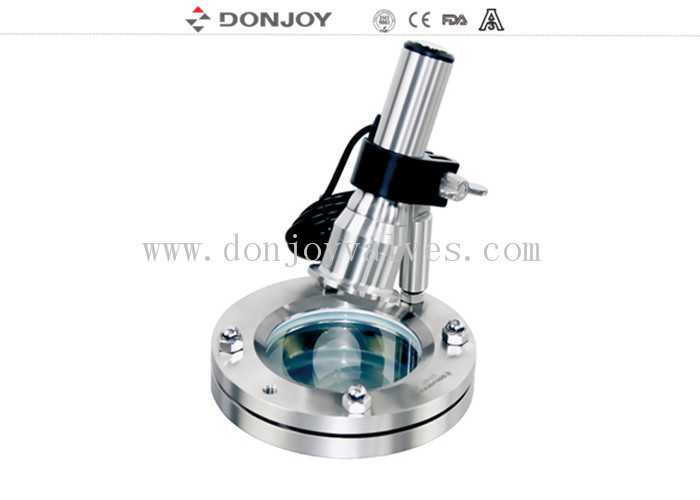

DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying

DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying

sanitary sight glass

SS Sight Glass

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE/FDA/ISO/3A

Model Number:

NO.VSJ200N1

Contact Us

Request A Quote
Product Details
Brand:
DONJOY
SIZE:
DN25-DN150,1"-6"
Stanadard:
DIN, 3A, SMS, ISO
Connection:
Welded, Clamped,Thread
Model:
Basic Type
Lighting:
Could Be Selected
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton, Wooden Case
Payment Terms
T/T,L/C, Credit Card
Product Description

DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying



Specification

Product Name:

DN25 - DN150 basic union type sight glass with tempered glass for medium conveying and observing

Valve Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM,PTFE,SILICON,etc

Sight glass:

tempered glass

Max.temperature:

120 degree

Battery:

use high light flashlight,rechargeable lithium battery(220V Battery for 18650); can use AC220V/110V power supply lighting.

Availably connection:

Clamp, Thread, weld, Flange

Availably standard:

DIN, SMS, 3A, ISO

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Type:

Basic model

Function:

For medium conveying and observing



Quick Details
Sight Glass
Size:DN25-DN150,1"-6"
Type: DC24V,NO.5 Battery
Gasket: EPDM,PTFE
Working Pressure:10Bar


Application
A tubular sight-glass is comprised of stainless steel frame and glass.
Through it, operator canobserve the flowing of the liquid substance clearly and precisely in the fields of flood,cosmetic, pharmaceutical and fine chemicals industries


Function
For medium conveying and observing


Structure
Basic structure (lighter is optional)


Feature
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position
Call with
light and wipper

Drawing

DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying 0


Display

DN25 - DN150 Stainless Steel Sight Glass with tempered glass for medium conveying 1
