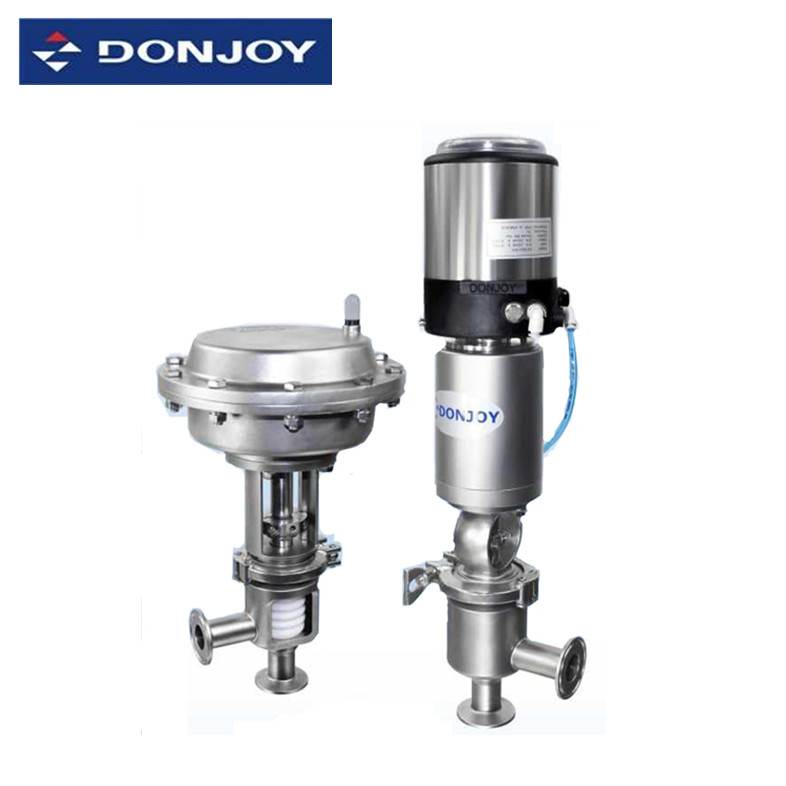

Stainless Steel Pneumatic Actuator Valve For Aseptic Regulating With Controller / Positioner

1/2" Pneumatic regulating valve for aseptic regulating with controller/positioner

Specifications


Technical Parameter
Size: DN25 - DN100
Signal input: 0 / 4 -20mA, 0 - 5 / 10V
Output feedback: 0 / 4 -20mA, 0 - 5 / 10V (optional)
US protocal: DEVICE NET RS485
Power: DC 24V
Protection grade: IP67
Operation interface: LCD display (Chinese / English menu)

Operation Principles
The position of valve tapered plug is adjusted by position.
So as to control flow rate through the valve(PD).
Besides, the intelligent process controller can control position and flow rate(PID)

Features
Material in connecting part: AISI 316L / 1.4404
Material in other parts: AISI304 / 1.4301
Material of seal ring: EPDM / FDA 177.2600
Internal surface finish: Ra≤0.6μm
Jacketed heat valve body ( optional )
Shaft sterilization / cleaning ( optional )
Actuator with higher pressure ( optional )
Gasket: NBR / FPM ( optional )

Competitive Advantage
“DONJOY is the only company that passes nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Double function positioning
PD: position controller
PID: process controller
Assembly/disassembly just to loosen the clamp
Standard connection: welding, clamping, threading

Display
