Stainless Steel High pressure 20bar Diaphragm Pneumatic actuator With intelligent valve Positioner Operation

Stainless Steel High pressure 20bar Diaphragm Pneumatic actuator With intelligent valve Positioner Operation

pneumatic valve positioner

double acting positioner

Place of Origin:

CHINA

Brand Name:

DONJOY

Certification:

CE,3A,FDA

Model Number:

VJZ223Q2

Contact Us

Request A Quote
Product Details
Item:
Pneumatic Globe Valve / Regulating Valve
Structure:
With Pneumatic Actuator & Positioner
Feature:
With Intelligent Valve Positioner
Function:
Positioning
Valve Type:
Globe Valve
Selection:
Pneumatic / Manual
Flow Way:
Direct
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton box
Delivery Time
according to your order
Payment Terms
T/T, LC, Credit Card
Product Description

Stainless Steel High pressure Diaphragm Pneumatic actuator With intelligent valve Positioner Operation



Description

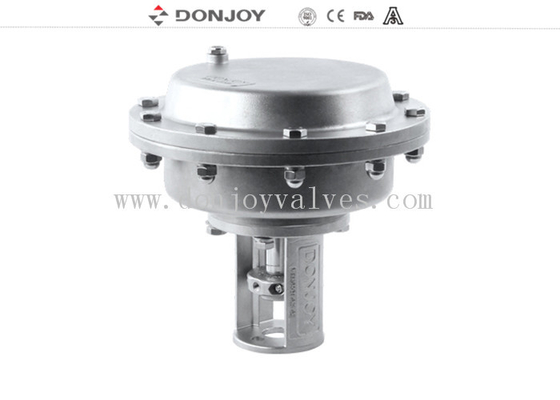

Membrane pneumatic actuator is a vertical linear actuator.The actuator has the technical characteristics of flexible configuration and combination,fast opening and closing speed,all stainless steel material,etc.The actuator can be applied to globe valve,seat valves etc,various linear stroke valves.Various automatic control functions can also be configured,such as valve position feedback,valve control unit,process controller,valve intelligent positioner,etc.



Technical specification

Cyliner specifications:Φ160,Φ250

Air source pressure:4-7 bar

Working temperature:-10℃ to 80℃

Execution mode:single acting (gas/spring),normal close,normal open

Double acting(gas/gas)

Execution action:Liner stroke (straight stroke)



Specification

Product Name:

Stainless Steel High pressure Diaphragm Pneumatic actuator With intelligent valve Positioner Operation

Valve Body Material:

SS304 or SS316L

Working Pressure:

20Bar

Working temperature:

120 degree

Available size:

DN25-DN200 or 1" - 8"

Connection:

Weld, Clamp, Thread,  Flange etc.

Operated:

Control head

Configuration:

IL-TOP / C-TOP / FKQ-TOP etc.

Signal indicator box:

Optional

Structure:

With IL - TOP

Model number:

VJZ223Q2

IL - TOP:

Intelligent valve positioner



Feature

With intelligent valve position / IL - TOP

With pneumatic actuator



Optional

C -TOP / IL - TOP / electric controller



Model Choose

Size     Action Recommend range Max pressure
Working for straight stroke valve
150 Single acting DN25-DN50,1"-2" 20 bar
DN65,2.5" 10 bar
DN80,3" 8 bar
DN100,4" 5 bar
150 Double acting DN25-DN50,1"-2" 20 bar
DN65,2.5" 20 bar
DN80,3" 16 bar
DN100,4" 10 bar
250 Single-acting DN65,2.5" 20 bar
DN80,3" 20 bar
DN100,4" 20 bar
DN125,5" 8 bar
DN150,6" 6 bar
250 Double acting  DN100,4" 20 bar
DN125,5" 15 bar
DN150,6" 10 bar
DN200,8" 8 bar



Function configuration

1) Basic type:pneumatic actuator

2) Pneumatic actuator + manual device

3) Pneumatic actuator + feedback device F-TOP-1671

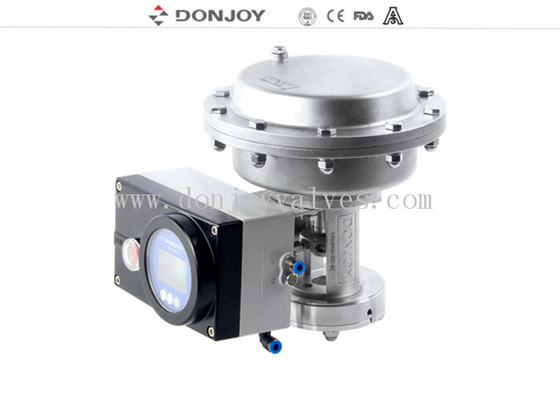

4) Pneumatic actuator + valve positioner IL-TOP-1441

5) Pneumatic actuator + valve positioner IL-TOP-1891

6) Pneumatic actuator + manual device + valve positioner-1441

7) Pneumatic actuator + split valve positioner IL-TOP-1441
