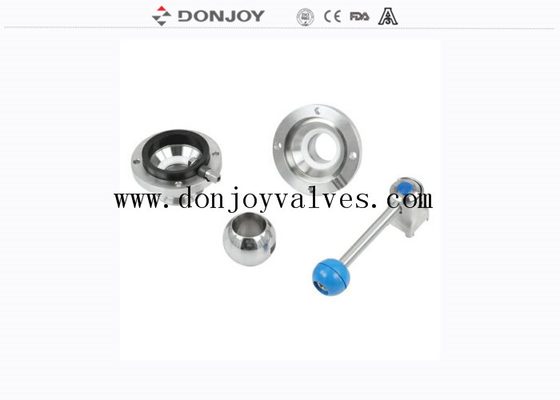

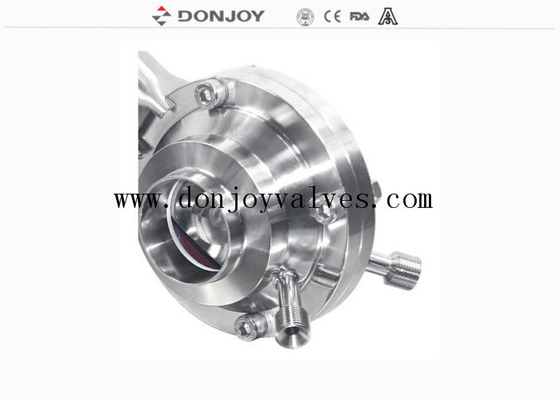

CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve

CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve

    • CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve
    • CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve
    • CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve
  • CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: NO.VQD100S1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Product Name: Ball Valve Size Of Panel: DN10-DN100,1/2"-4"
    Operation: Pneumatic, Control Head,Manual Media: 304/316L
    Connection: Welded, Clamped, Thread, Flange
    High Light:

    Manual Butterfly Sanitary Ball Valve

    ,

    DN50 Sanitary Ball Valve

    ,

    CIP Port Sanitary Ball Valve

    3 INCH 1.4404 Sanitary Ball Valve manual butterfly type with pull

    Manual Ball Valve,CIP Cleaning Ball, Pneumatica Butterly type ball valve, C-top Pneumatica Butterly type ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve

    Materials:AISI304/316L

    Gasket: EPDM,

    Seal:PTFE

    Connection: Clamped, Thread, Welding

    Standard: DIN,3A,SMS,ISO,IDF, RJT..

    Polished: Ra0.8um

    Outside Polished: CNC Machining

    Specification

    Product Name: DN50 1.4301 Sanitary Ball Valve manual butterfly type with CIP port
    Valve Body Material: SS304 or SS316L
    Seal Material: PTFE
    Max. Working Pressure: 10Bar
    Max. Working Temperature: 120 degree C
    Availably size: DN25-DN100 or 1" - 4"
    Availably connection: Weld,Clamp,Thread, Flange
    Availably standard: DIN,SMS,3A
    Ball Type: Directly
    Operated: Manual,Pneumatic,Electric,control Head
    Certificate: FDA,CE,3A,ISO



    Applications:

    Application :The butterfly-Type ball valve is installed in any to pipeline and enquipments for to controling. It is specially used in brewing industry.



    Operating Principles

    1. Free Maintenance

    2.Portable and compact

    3.Small Torquemoment

    4.Drainble

    5.Gasket complies with FDA 177.2600

    6.Handle can be installed on the side of the valve body, no matter of the flow direction

    7.Valve body can be replaced in any connections, And the length will not change.



    Technical Specification

    1.Max Temperature:121°C ,EPDM

    2.Pressure: 10Bar





    CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve 0

    Tag : Ball valve, Directly ball valve,  Regulating valve
