Cip Soluction Whey Transfer 20m³/H High Purity Pumps

Cip Soluction Whey Transfer 20m³/H High Purity Pumps

    • Cip Soluction Whey Transfer 20m³/H High Purity Pumps
    • Cip Soluction Whey Transfer 20m³/H High Purity Pumps
  • Cip Soluction Whey Transfer 20m³/H High Purity Pumps

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: ZLX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Materials: SS316L/SS304 Flow: 20T/24M,11KW
    Mechanical: Single Sealing Parts Inlet: 3" Thread/Clamp/Ferrule
    Outlet: 2.5" Thread/Clamp/Ferrule Medium: Flow Tranfering And Controlling
    High Light:

    20m³/H High Purity Pumps

    ,

    Whey Transfer High Purity Pumps

    ,

    20m³/H sanitary water pump

    High Purity Pumps with 20m³/h for CIP soluction and Whey transfer with 316L Materials



    Tags : CIP Pump, Centrifugal pump, Circulation pump

    ifications

    Product Name:

    CIP self priming centrifugal pumps ZXL series for wine processing

    Valve Body Material:

    Stainless steel 304 / 316L

    Seal Material:

    EPDM (Standard, FDA approval) FPM(Viton) and NBR

    Max. Flow:

    50 m³/h

    Max. Speed:

    3600 min-1

    Max. Head:

    66H(m)

    CIP selection:

    As per real situation

    Driving mode:

    By impeller installed on the inlet.

    Mechanical seal:

    C/SIC/EPDM

    Sealing type:

    Flushed double mechanical seal/single mechanical seal (standard)

    Motor:

    ABB / domestic is optional

    Motor Frequency:

    50HZ, 60HZ

    Surface treatment:

    Inner polished and Sandblast outside

    Application structure:

    ZXL

    Available connection:

    Tri-Clamp, Thread, Flange

    Available standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Electic

    Low discharge option:

    Low discharge/diaphragm valve/ball valve/butterfly valve

    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc

    Packaging Details:

    Plywood case or customerized. Or as per the request of customers.

    Delivery details:

    Usually within 20 days after receiving T/T down payment.


    Applications
    1. This pump is a sanitary lateral design self priming pump,it's suitable for food processing,
    phamacy and chemical industry.
    2. The pump is designed a side way pipe between inlet and outlet
    3. It is specially designed for pumpling mterials containning air or gas, and it can also be used
    for negative sution with prior priming as well as with filtration equipment
    4. It can be sued for wine, oil,syrups, volatile products such as alcohol, acetone and other
    solvents or with products at temperatures close to boiling point.However, the main use of this
    pump is for cip recover.

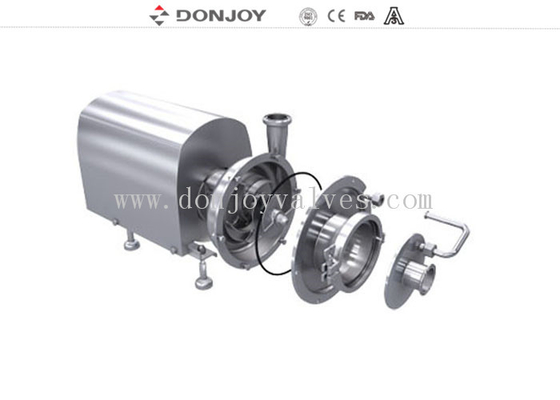

    Mechanical Design

    Cip Soluction Whey Transfer 20m³/H High Purity Pumps 0

    Donjoy DJ-ZLX Series self-priming centrifugal pump eachanical seal is researched and developed together with european swedish famous company. The mechanical seal is designed with pressure balance and super long working life. Can be disassembled and maintained easily without special tools. The sanitary purity is according to EU EHEDG, USA 3-A-02-11,FDA1772600 and so on . And has lots of configuaration.



    ZLX SERIES VARIOUS APPLICATION

    Brewery : Beer, wort, Yeast, Water, CIP Solution

    Dairy products : Milk, Cream, Yogurt, whey, saline, CIP Solution

    Food: Deible Oil, Soup Sauce, Soup stock, Flvouring, Ice cream mixture

    Other Application: Storage tank empty .



    ZLX SERIES PUMP Inlet&outlet connection Standard

    Connection: Thread, clamped, Flange, Aspetic Flange, KF etc

    Standard: DIN, SMS,ISO, IDF, RJT, ASME BPE, 3A, I LINE



    Mechanical seal Materials option :



    1. SIC/CEPDM, SIC/C/FKM, SIC/C/HNBR, SIC/SIC/EPDM, SIC/SIC/FKM, SIC/SIC/HNBR, TC/TCEPDM, TC/TC/FKM, TC/TC/HNBR.



    ZLX Self Priming Centrifugal pump selection table :

    Cip Soluction Whey Transfer 20m³/H High Purity Pumps 1

    For more detail please contact us directly
