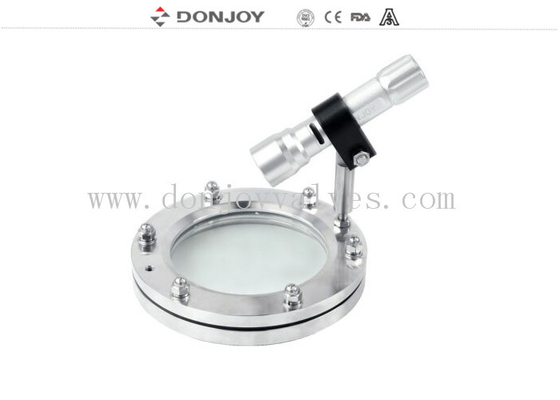

CNC Lathe Ss304 DN200 Flange Sight Glass Welded Clamped

CNC Lathe Ss304 DN200 Flange Sight Glass Welded Clamped

CNC Lathe Ss304 DN200 Flange Sight Glass Welded Clamped

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.VSJ200N1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Carton, Wooden Case
Delivery Time: 10-30 working days
Payment Terms: T/T,L/C, Credit Card
Contact Now
Detailed Product Description
Material: Ss 304 SIZE: 1" Inch - 6 Inch
Stanadard: DIN, 3A, SMS, ISO Connection: Welded, Clamped, Thread, Flange
Polishing: Mirror Polishing, Matt Polishing Surface Treatment: Operated By CNC Lathe
Feature: With Stainless Steel Protective Cover
High Light:

DN200 Flange Sight Glass

,

Ss304 Flange Sight Glass

,

CNC Lathe Flange Sight Glass

DN200 Flange sight glass with ligher DC24V , Stainless steel sight glass



Quick Detail

Flange sight glass

Size:1.5"-12"  ,DN40- DN300

Type:  Manual operation

Gasket: EPDM / PTFE

Max pressure :10bar

LIght : Hight light, White cold light source/ waterproof, explosion-proof design

Cabel power supply  AC110V-220V, DC24V

Wireless power supply, one charging can use 2-3 months(Depending on the frequency )



Specification

Product Name:

DN200 Flange sight glass with ligher DC24V , Stainless steel sight glass

Valve Body Material:

SS304/SS316L/1.4301/1.4404

Seal Material:

EPDM,PTFE,SILICON,etc

Sight glass:

tempered glass

Max.temperature:

-10 to 120 degree

Gasket

NBR, EPDM, FPM in accordance with FDA 177.2600

Available connection:

Clamp, Thread, weld, Flange

Available standard:

DIN, SMS, 3A, ISO

Certification:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Feature:

For full angle observation

Advantage:

Precise observation on flow

Packaging Details:

Plywood case or customerized. Or as per the request of customers

Delivery details:

10-20 days



Application
Flange sight glass is comprised of stainless steel fram and glass, Through it, operator can observe the flowing of the liquid substance clearly and precisely in the field of foods, cosmetic, pharmaceutical and fine chemicals industries.


Features
Full bore Design
360degree viewing angle
Can be used in vertical or horizontal position

Drawing of sight glass

CNC Lathe Ss304 DN200 Flange Sight Glass Welded Clamped 0


Packaging
Plywood case or customerized.
Or as per the request of customer


Delivery
Normally, 10-20 days
