Sanitary 316L Aseptic Sampling Valves With DN10 Pipeline Connector

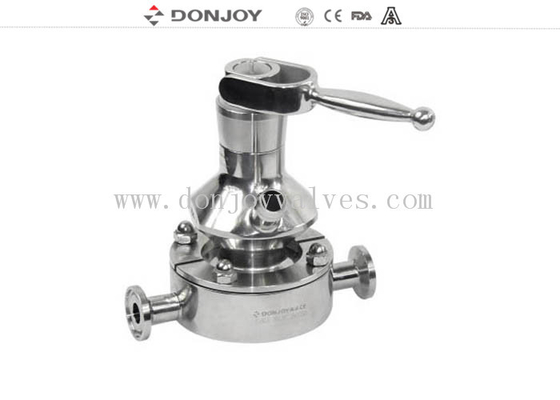

Large Image : Sanitary 316L Aseptic Sampling Valves With DN10 Pipeline Connector

Product Details:

Place of Origin:	CHINA
Brand Name:	DONJOY
Certification:	CE/FDA/ISO/3A
Model Number:	ASEPTIC TYPE

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Packaging Details:	WOODEN CASE, CARTONS
Payment Terms:	T/T,L/C, Credit Card

Contact Now

Detailed Product Description

Brand:	DONJOY	SIZE:	1"-4"
Stanadard:	DIN,3A,SMS,ISO	Connection:	Weled, Flange
Polished:	Mirror, Matt	Pressure:	6 Bar
Highlight:	316L Aseptic Sampling Valves , Sanitary Aseptic Sampling Valves , DN10 Pipeline Aseptic Sampling Valves

sanitary 316L aseptic sampling valves with pipeline connector

Specification

Product Name:	sanitary 316L aseptic sampling valves with pipeline connector
Material:	AISI316L
Size:	1"-4"
Finish:	Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit
Connection:	Welded, Flange
Standard:	DIN,3A,SMS,ISO
Certificate:	CE, ISO9001/2008, 3A
Application scope:	Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc
Packaging Details:	Shrink wrapped - carton - pallet . Or as per the request of customers

Operating Pinciples

The aseptic sampling valve is designed for sterilization before and after each sampling.

Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.

Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.

Standard design: the aseptic sampling valve consists of three parts, a valve body, a handle and a membarnce, the rubber.

Handle:(1) Turning handle (2) removable key

Application: The aseptic sampling valva is applied to beer,milk, beverage, fruit juice, pharmacy industries .

Drawing

Sanitary 316L Aseptic Sampling Valves With DN10 Pipeline Connector 0

Relate products

Valve body with various configuarations

1. Flow regulating valve head

2.Pneumatic valve head

3.Auto reset valve head

4.Lock level valve head

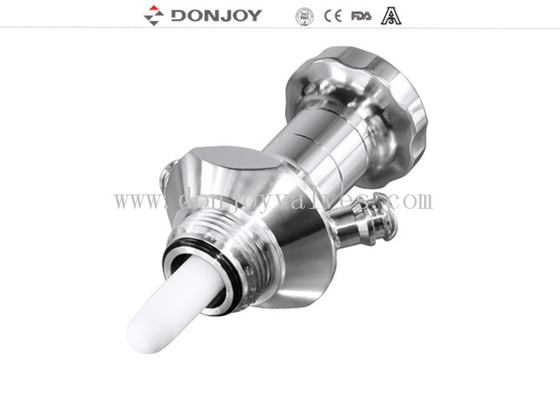

Sanitary 316L Aseptic Sampling Valves With DN10 Pipeline Connector 2
