SS304 / 316 Pneumatic bottom tank valve with Plastic Actuator Welding Ends

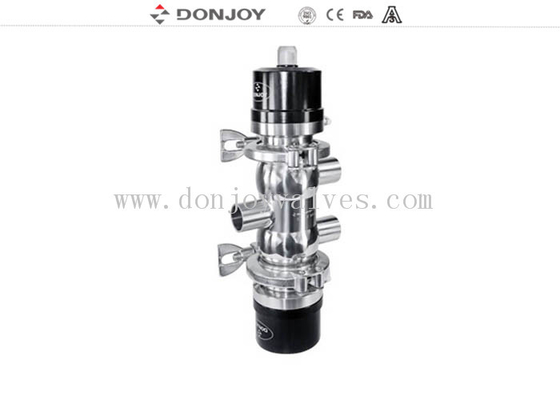

Large Image : SS304 / 316 Pneumatic bottom tank valve with Plastic Actuator Welding Ends

Product Details:

Place of Origin:	China
Brand Name:	Donjoy
Certification:	CE,3A,FDA
Model Number:	NO.

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	carton box
Delivery Time:	10-30 working days
Payment Terms:	T/T, LC, Credit Card
Supply Ability:	20 sets 30 working days

Contact Now

Detailed Product Description

Product Name:	Pneumatic Radial Diaphramg Valve	Outlet Connection:	Clamp Or Welding
Structure:	Multi-port Valve Body	Clamp:	Ss 316L
Standard:	3A/BPE/DIN/ISO/IDF	Delivery:	Usually Within 20 Days After Reciveing T/T Down Payment
Highlight:	sanitary sample valve , 3 way diaphragm valve

SS304 / 316 Pneumatic bottom tank valve with Plastic Actuator Welding Ends

Specification

Product Name:	Pneumatic Tank Bottom Diaphragm Valve for phamacy hygienic process
Valve Body Material:	SS316L
Seal Material:	Single sillcone gasket/ Adhesive PTFE + EPDM / Two pieces PTFE + EPDM
MaxWorking Pressure:	6 Bar
Max.Working Temperature:	120 degree C
Availably size:	3/4''-2.5'', DN20-DN65
Availably connection:	Clamp/weld/thread/special connection
Availably standard:	3A/BPE/DIN/ISO/IDF
Operated:	Pneumatic
Air pressure of actuator:	5 bar - 6 bar
Feature:	Manual or pneumatic operation is interchangable.
Availably structure:	Straight, tee, U-type, tank bottom
Control:	Smart valve positioner / C-TOP control / position sensor
Certificate:	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller (IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging

Application scope
In the industries of Dairy,food, beverage, pharmacy, cosmetic etc.

Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.

Product display

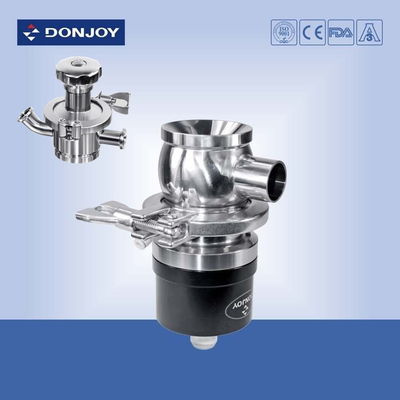

SS304 / 316 Pneumatic bottom tank valve with Plastic Actuator Welding Ends 0
