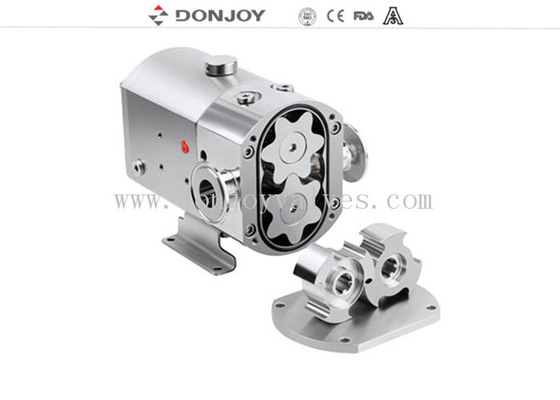

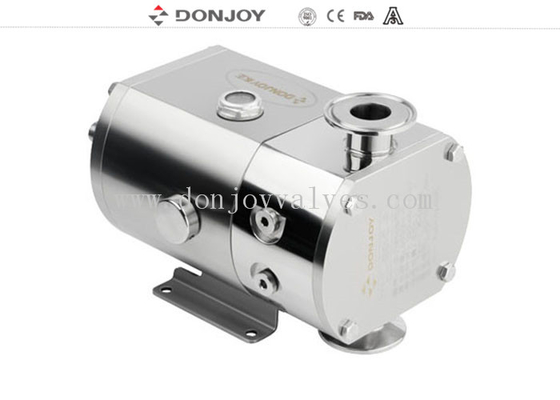

Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H

Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H

    • Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H
    • Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H
    • Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H
  • Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: STUL/STUR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: Wooden box
    Delivery Time: 10-30 working days
    Payment Terms: T/T, LC, Credit Card
    Supply Ability: 20 sets 30 working days
    Contact Now
    Detailed Product Description
    Materials: Stainless Steel 316L Size: MINI STUL-R/L
    Operation: Motor Mechanical: SIC / SIC / EPDM
    Connection: Clamped Media: Honney And Comestic Etc.
    Feature: Regulating Fluid Motor: ABB Or SEW

    High viscosity Purity Pumps ,Mini Rotary Lobe Pump for cheese and whey yogurt transfer



    Specifications

    Product Name:

    Horizontal Positive Displacement Rotary Lobe Pump

    Material:

    Whole SS316L/1.4301/1.4404

    Seal Material:

    EPDM (Standard, FDA approval)

    Max. Flow:

    3000L/H

    Max.pressure:

    12bar/ 174PSI

    Max. working temperature:

    150 C / 302 F

    Max. rev:

    1450 rmp

    Rotor Type:

    3 Leave rotors, 6 Leave Rotor

    Mechanical seal:

    SIC/SiC/EPDM(Standard)

    Motor power:

    0.75kw, 1.5kw,2.2kw,3.0kw

    Sealing option:

    Sanitary single mechanical seal/

    Double mechanical seal with cooling system

    Motor:

    ABB,SEW, 50hz / 60hz

    Surface treatment:

    Inner polished and Sandblast outside

    Available connection:

    Clamp, Thread Butt weld, Flange

    Available standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Electic

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

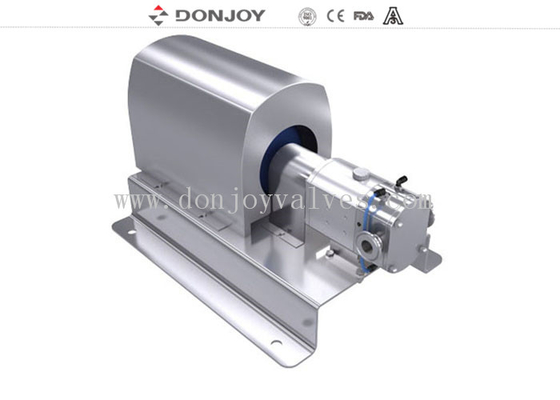

    Structure Assembled on a stainless steel baseplate
    Optional  Voltage (v) 220-240,360-400,420-460,630-690



    Description
    Options
    1. Mechanical seal: SIC / SICE / EPDM, TC / TC, EPDM
    2. Single seal, Double Mechanical Seal
    3. Rotors: 2 leave rotor,
    3 Leave rotors, 6 Leave Rotor
    4. Gasket: FPM(Viton),NBR, EPDM
    5. End-face heat jacket
    6. Complete heat jacket
    7. Vertical TUR Series or Horizontal TUL Series



    Advantage:

    Simple installation and disassembly

    The shaft and rotor adopt spline connection design, simple installation and disassembly

    Two direction reversible, can be achieved just changing direction of motor rotation

    Can be used for all kinds of high and low viscosity medium, without changing configuration

    Outlet/inlet could be horizontal or vertical, realized by changing base only

    3-leaves rotors and 6-leaves rotors could be replace without changing configuration

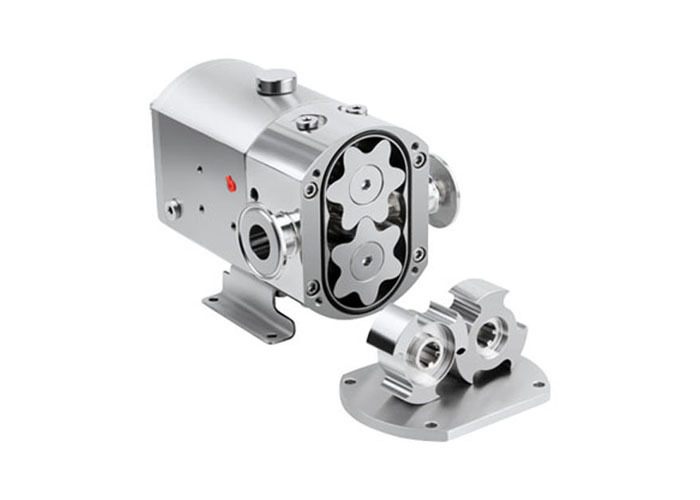

    Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H



    Applications
    This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.


    Principles
    1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
    2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
    3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton



    Flow Direction of Mini lobe pump

    Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H

    Selection Table

    Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H

    Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H



    Drawing

    Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H

    Cheese And Whey Yogurt Transfer High Purity Pumps Rotary Lobe Type 3000L/H


    Maintenance and repair
    maintenance of the lobe pump, without the workshop due to compact design, can be made with ease and in a very short time in the field.
    Separation of the electrical connection on the pump motor is required before the pump maintenance. After this process is done, pump maintenance and repair can be done.
    • Maintenance and changing of Lobes, the coupling between the pump and engine and the pump with line connections can be made with the bolts without removing the front cover removed.
    • In this section, The lobes that are easily removed, cleaning and maintenance can be performed.
    • The front body to change the seal needs to be removed. Body also reveling operation can be performed in a simple way.
    • The threaded portion of the oil reservoir drain oil at periodic intervals is replaced by the plug opening. In this way, the threaded life will be monitored for increase
    • The necessary cleaning is done after they are removed all the parts
    way back again onto the body and the pump assembled is activated. The direction of rotation of the motor when commissioning the pump according to electrical connections must be mad
