Home ProductsHigh Purity Pumps

Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing

Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing

    • Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing
    • Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing
    • Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing
  • Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: DJ-JZ3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Name: High Purity Pumps Type: JZ - 3
    Application: Samsh And Emulsificating , Mixing Inlet: 2" Thread / Clamp / Ferrule
    Outlet: 1.5" Thread / Clamp / Ferrule Motor Type: Could Be Optional

    High purity solution Multi Stage emulsifying Homogeneous Pump For samsh and emulsificating,mixing


    Description

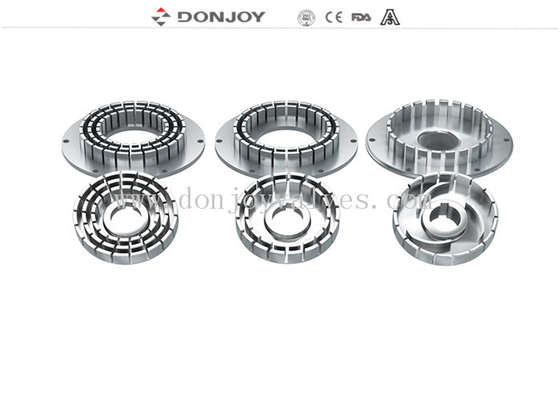

    JZ3 Series is online continuity production emulsification homogeneous pump, and is composed by stators and rotors, processed materials will be stepwise dispersed, sheared, refined, curshed, emulsified, mixed and homogenized through three grades twelve-tier stators and rotors. And then be dispersed, cut, refined, smashed, emulsified, mixed etc. step by step.Compared with traditional manufacturing technique, this pump is more easier, convenient and optimized, which hase improved production efficiency and promoted meida quality.



    Specifications

    Product Name:

    multi-stage homogeneous softening pump for producing processing

    Mechanical seal:

    C/SiC/EPDM(Standard), C/SIC, TC/TC



    Sealing type:

    Flushed double mechanical seal/single mechanical seal(standard)

    Motor power:

    7.5kw,11kw,15kw,18.5kw,22kw...

    Voltage:

    440V, 220V, 380V

    Motor:

    ABB/domestic/SIEMENS

    Motor Frequency:

    50HZ, 60HZ

    Surface treatment:

    Inner polished and Sandblast outside

    Application structure:

    JZ-3

    Available connection:

    Tri - Clamp, Thread, Flange

    Available standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Electic

    Impeller

    Opening impeller

    Transfer

    Driven by rotary impeller



    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc



    Option

    1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM

    2. Gasket: viton/NBR

    3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

    4. Motor: 2900,1450,3600Min/1,50HZ,60HZ



    Application
    1.Food and beverage: jiuce, jam, ice cream, dairy products, food additives, tea drinks,chocolate, soymilk,essence, salad dressing, Chilli sauce, mayonnaise, tomato sauce, mustard, Yogurt, sour cream, flavored milk, pudding and other types of materials

    2.Daliy chemical: Liquid detergent, liquid soap, facial cleanser, emulsified silicone oil, fragrance compound, skin care product, cosmetics, cream, shampoo, shower gel,etc

    3.Bio-pharmaceutical:Injection, antibiotic, drug emulsion,meulsion, medicine cream paste, health care products, microcapsule emulsification, lotion, cell tissue breakage etc.

    4.Additives and thickeners: Aspartame, non-skimmed milk powder, salt, citric acid, sugar, egg powder, whey protein concentrate, calcium carbonate, honey, powder essence and other additives, gels,pectin, synthetic thickeners, starch, gelatin and other thickeners.

    5.Petrochemical Industry: Lubricant, heavy oil emulsification, diesel oil emulsification, modified asphalt, catalyzer, wax emulsion etc. which media need to be emulsified and homogenized.

    6.fine chemical engineering:pigment, dyestuff, plastic additive, textile assistant, adhesive, resin emulsification, hot melt adhesive , sealant, glue, sizing agent, finishing agent, surfactant, dye leveller, carbon black dispersion,anti-sticking agent,textile finished agent, brightener, leather auxiliaries, pigment paste etc.Which media need to be emulsified and homogenized.

    7.Coating and ink : Printing ink, oil paint, emulsion paint, coating, nano-paint, photocureable coating, Coating abhesive, carbon black dispersion, glaze,bentonite, dye compounds etc



    Technical Advantage

    Maintenace disassembly and installation can be completed without professional staff and special tools

    Initial use of installation debugging, the motor will not be damaged even if afer a short reverse rotarion

    The impeller and shaft are connected by the key groove



    Selection Table

    Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing

    Drawing

    Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing

    Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing

    Spare parts component

    Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing



    Product display

    Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing



    Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing

    The gap between the stator and the rotor is 0.5mm

    Solution Multi Stage High Purity Pumps For Samsh And Emulsificating , Mixing

    Competitive Advantage
    “DONJOY is the only company that pass nine series of products by American 3A certification

    organization in Asian sanitary pumps and valves field.”
