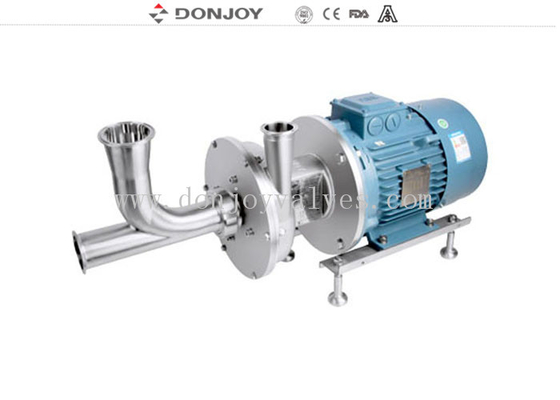

Emulsifying Homogeneous High Purity Pumps For Mixing The Cheese And Food

Emulsifying Homogeneous High Purity Pumps For Mixing The Cheese And Food

    • Emulsifying Homogeneous High Purity Pumps For Mixing The Cheese And Food
    • Emulsifying Homogeneous High Purity Pumps For Mixing The Cheese And Food
    • Emulsifying Homogeneous High Purity Pumps For Mixing The Cheese And Food
  • Emulsifying Homogeneous High Purity Pumps For Mixing The Cheese And Food

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: DJ-JZ3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Application: Mixing The Cheese And Food Model: JZ -3
    Flowrate: 10 - 30T/H Brand: DONJOY
    Connection: Weld, Thread,clamp Could Be Optional Type: Emulsifying Homogeneous

    High purity Single Stage emulsifying Homogeneous pump For mixing the cheese and food



    emulsifying Homogeneous pump Application


    1.Food and beverage: jiuce, jam, ice cream, dairy products, food additives, tea drinks,chocolate, soymilk,essence, salad dressing, Chilli sauce, mayonnaise, tomato sauce, mustard, Yogurt, sour cream, flavored milk, pudding and other types of materials

    2.Daliy chemical: Liquid detergent, liquid soap, facial cleanser, emulsified silicone oil, fragrance compound, skin care product, cosmetics, cream, shampoo, shower gel,etc

    3.Bio-pharmaceutical:Injection, antibiotic, drug emulsion,meulsion, medicine cream paste, health care products, microcapsule emulsification, lotion, cell tissue breakage etc.

    4.Additives and thickeners: Aspartame, non-skimmed milk powder, salt, citric acid, sugar, egg powder, whey protein concentrate, calcium carbonate, honey, powder essence and other additives, gels,pectin, synthetic thickeners, starch, gelatin and other thickeners.

    5.Petrochemical Industry: Lubricant, heavy oil emulsification, diesel oil emulsification, modified asphalt, catalyzer, wax emulsion etc. which media need to be emulsified and homogenized.

    6.fine chemical engineering:pigment, dyestuff, plastic additive, textile assistant, adhesive, resin emulsification, hot melt adhesive , sealant, glue, sizing agent, finishing agent, surfactant, dye leveller, carbon black dispersion,anti-sticking agent,textile finished agent, brightener, leather auxiliaries, pigment paste etc.Which media need to be emulsified and homogenized.



    emulsifying Homogeneous pump Specifications



    Product Name:

    multi-stage homogeneous softening pump for producing processing

    Pump Body Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    EPDM (Standard, FDA approval) FPM(Viton) and NBR

    Max. Flow:

    40 m3/h

    Max. Speed:

    3600 min-1

    Max. Head:

    50H(m)

    Max. Working Pressure:

    5bar

    Max. Working Temperature:

    140 °C

    Mechanical seal:

    C/SiC/EPDM(Standard), C/SIC, TC/TC

    Motor power:

    7.5kw,11kw,15kw,18.5kw,22kw...

    Voltage:

    440V, 220V, 380V

    Motor:

    ABB/domestic/SIEMENS

    Motor Frequency:

    50HZ, 60HZ

    Surface treatment:

    Inner polished and Sandblast outside

    Application structure:

    JZ-3

    Available connection:

    Tri - Clamp, Thread, Flange

    Available standard:

    DIN, SMS, 3A, RJT, ISO/IDF

    Operated:

    Electic

    Impeller

    Opening impeller

    Transfer

    Driven by rotary impeller



    Certificate:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy,food, beverage, pharmacy, cosmetic, etc



    Option

    1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM

    2. Gasket: viton/NBR

    3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)

    4. Motor: 2900,1450,3600Min/1,50HZ,60HZ

    5. stators and rotors



    Gap of Stator and rotor

    Emulsifying Homogeneous High Purity Pumps For Mixing The Cheese And Food



    Technical Advantage

    Maintenace disassembly and installation can be completed without professional staff and special tools

    Initial use of installation debugging, the motor will not be damaged even if afer a short reverse rotarion

    The impeller and shaft are connected by the key groove



    Selection Table

    Emulsifying Homogeneous High Purity Pumps For Mixing The Cheese And Food

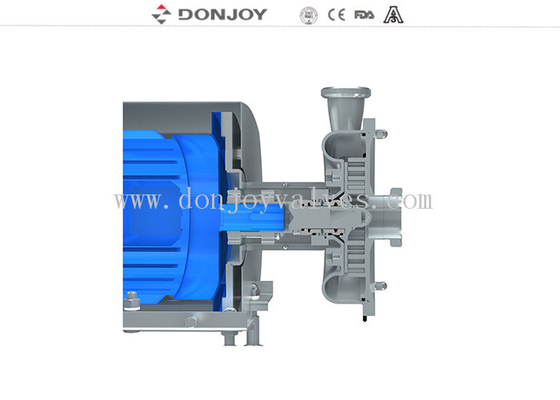

    Drawing



    Emulsifying Homogeneous High Purity Pumps For Mixing The Cheese And Food

    Spare parts component

    Emulsifying Homogeneous High Purity Pumps For Mixing The Cheese And Food



    Competitive Advantage
    “DONJOY is the only company that pass nine series of products by American 3A certification

    organization in Asian sanitary pumps and valves field.”
