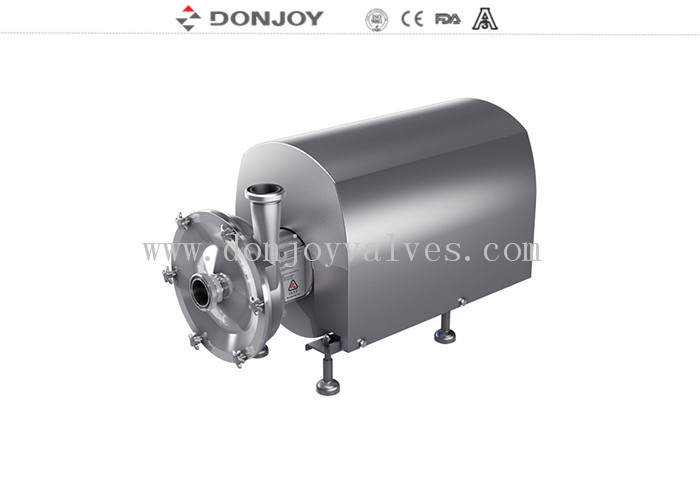

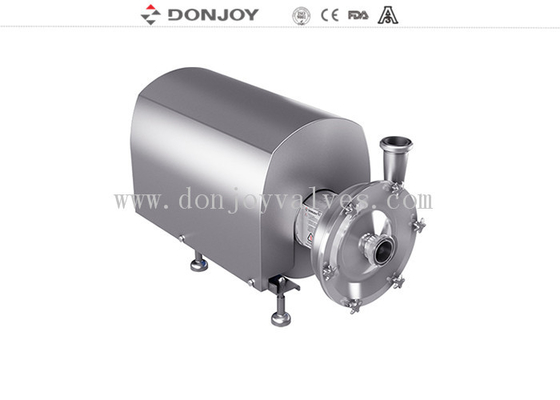

LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material

LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material

    • LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material
    • LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material
  • LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE,3A,FDA
    Model Number: LX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: carton box
    Payment Terms: T/T, LC, Credit Card
    Contact Now
    Detailed Product Description
    Materials: SS304 / SS316L Operation: ABB Motor
    Mechanical: Single / Double Seal Connection Way: Thread, Clamp, Flange, Welding, Union
    Power: 380V/ 50HZ, 440V/60HZ Medium: Beer / Drug / Beverage Etc.
    High Light:

    Open Impeller Beverage Centrifugal Pump

    ,

    SS316L Beverage Centrifugal Pump

    ,

    380V Beverage Centrifugal Pump

    LX-30 Beverage centrifugal pump with open impeller with SS316l material



    Solution for high efficiecy, low noise, clamp pump head, easy to clean, simple and economical maintenance, high purity




    Description

    1. It is applied to various working conditions during low flow demand, such as biopharmaceutical, fine chemical industry, beer beverage, laboratory, etc.

    2. Certification: 3-A-02-11 NO.1759, FDA 177.2600

                                 CE-MD/06-42 NO.705201616101-00



    Specifications

    Product Name: Stainless steel High Purity Pumps centrifugal pump for fluid with ABB motor
    Pump Body Material: SS304 / SS316L / 1.4301 / 1.4404
    Seal Material: EPDM (Standard, FDA approval) FPM (Viton) and NBR
    Max. Flow: 140 m³/h
    Max. Speed: 3600 min-1
    Max. Head: 70 M
    Max. power 30KW

    Min. power

    0.55kw

    Temperature Range: -30°C-130 °C
    Motor: ABB / domestic / SIEMENS
    Motor Frequency: 50HZ, 60HZ
    Surface treatment: Inner polished and Sandblast outside
    Application structure: LX
    Availably connection: Tri-Clamp, Thread, Flange
    Availably standard: DIN, SMS, 3A, RJT, ISO/IDF
    Surface treatment:

    Ra≤0.6μm , EP=Ra 0.4μm

    Low discharge option : Low discharge / diaphragm valve / ball valve / butterfly valve
    Application scope: Dairy,food, beverage, pharmacy, cosmetic, etc
    Level: Sanitary grade


     Feature
    Motor: ABB / domestic / SIEMENS Motor ( optional )
     Availabe connection: tri-clamped, threaded and Flanged.
     Available standard: DIN, SMS, 3A, RJT, ISO / IDF
     Sealing type: machanical seal
     Function: flow control



    Mechanical selection (Single mechanical / Double mechanical )

    Materials :

    1.SIC/C/EPDM

    2.SIC/C/FKM

    3.C/SIC/HNBR

    4.SIC/SIC/EPMD

    5.SIC/SIC/FKM

    6.SIC/SIC/HNBR

    7.TC/TC/EPDM

    8.TC/TC/FKM

    9.TC/TC/HNBR

    LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material 0

    Applications
     1.  This pump is manufactured in stianless steel and with a shrouded motor.
    2.  Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.



    Advantange

    1.Maintenance disassembly and installation can be completed without professional staff and speical tools

    2.Intial use of installation debugging, even if a short reverse rotaion will not be damaged

    3. Impeller and shaft are connected by kewway, impeller and mechanical seal rotating ring are connected by pin. Mechanical seal static ring and pump body are connected by special-shafped flange

    4.Compatible with siingle and double mechanine seal, only need to change machine seal.



    Pump inlet&outlet connection various configuration

    LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material 1



    Selection Table

    LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material 2

    LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material 3



    Drawing

    LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material 4

    LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material 5



    Curve

    LX-30 Beverage Centrifugal Pump With Open Impeller With SS316l Material 6



    Packaging Details

    Plywood case or customerized. Or as per the request of customers.


    Delivery details

    Usually within 20 days after receiving T/T down payment.
