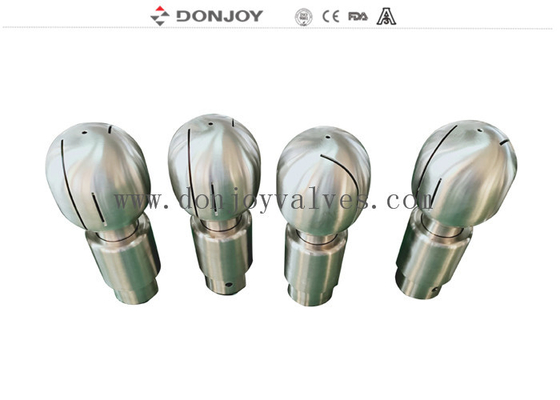

SS316L Elliptial Rotary Tank Spray Balls With Pin Connection

SS316L Elliptial Rotary Tank Spray Balls With Pin Connection

SS316L Elliptial Rotary Tank Spray Balls With Pin Connection

Product Details:

Place of Origin: CHINA
Brand Name: DONJOY
Certification: CE/FDA/ISO/3A
Model Number: NO.EQX225

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Carton, Wooden Case
Payment Terms: T/T,L/C, Credit Card
Supply Ability: 3000 pcs per month
Contact Now
Detailed Product Description
Brand: DONJOY SIZE: 1/2"-2.5"
Stanadard: DIN,3A,SMS,ISO Connection: Welded, Clamped,Thread,pin Connection
Polished: Mirror, Matt Material: Stainless Steel
High Light:

Elliptical Rotary Tank Spray Balls

,

SS316L Rotary Tank Spray Balls

,

FDA Rotary Tank Spray Balls

SS316L Elliptial Rotary Tank Spray Balls with Pin connection



Quick Detail

Cleaning Ball

Tanks rotary ball







Specification



Product Name:

SS316L Elliptial Rotary Tank Spray Balls with Pin connection

Material:

SUS304/316L;PTFE

Flow:

4-45m³/h

Inlet Pressure:

4-10 bar

Suggest Pressure:

6 bar

Availably  size:

1"-2.5"

Connection way:

thread BSP,clamp Pin, Welded

Max temperature:

  95°C

Max environment temperature:

140°C

Application Scope:

Widely used  in food and diary products ,Pharmaceutical, Chemicl treatment,Transport equipment, Beverage

Typical application:

process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding

Advantages:

Self-cleaning; low liquid consumption; heath design

Typical cleaning methods:

fixed installation CIP system

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.
















































Typical Application

1. Fixedinstallaiton CIP System

2. Process Containers and reator

3. Store tank

4. Transport tank equipment

5. Fermentation

6. Yeast Breeding

Type: 360 Degree, 180 Degree, 270 Degree

SS316L Elliptial Rotary Tank Spray Balls With Pin Connection 0



Drawing

SS316L Elliptial Rotary Tank Spray Balls With Pin Connection 1

SS316L Elliptial Rotary Tank Spray Balls With Pin Connection 2



Operating Principle

1.      Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

2.      Rotary injector with unique self cleaning funciton, internal is completely cleaning.



SS316L Elliptial Rotary Tank Spray Balls With Pin Connection 3

SS316L Elliptial Rotary Tank Spray Balls With Pin Connection 4
