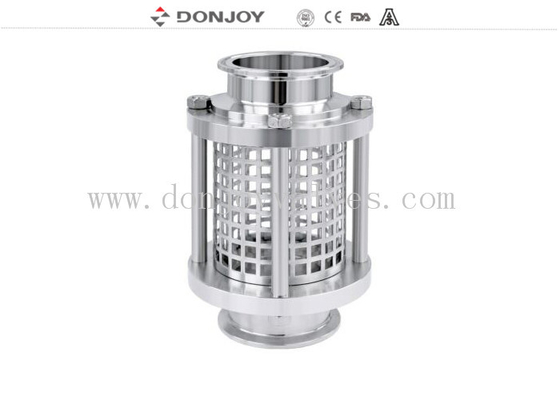

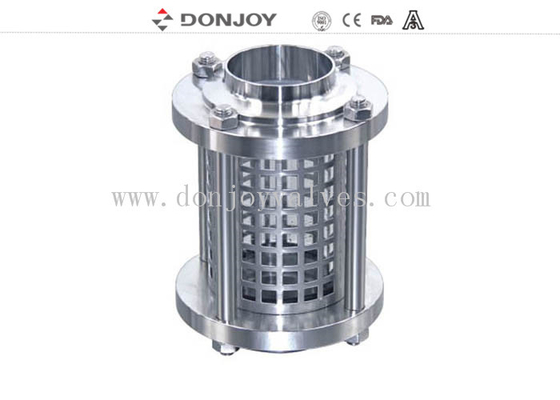

2" Tri Clamp Tubular Stainless Steel Sight Glass With SS304 Protective Sleeve

2" Tri Clamp Tubular Stainless Steel Sight Glass With SS304 Protective Sleeve

    • 2" Tri Clamp Tubular Stainless Steel Sight Glass With SS304 Protective Sleeve
    • 2" Tri Clamp Tubular Stainless Steel Sight Glass With SS304 Protective Sleeve
  • 2" Tri Clamp Tubular Stainless Steel Sight Glass With SS304 Protective Sleeve

    Product Details:

    Place of Origin: CHINA
    Brand Name: DONJOY
    Certification: CE/FDA/ISO/3A
    Model Number: NO.VSJ110N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Carton, Wooden Case
    Delivery Time: 10-30 working days
    Payment Terms: T/T,L/C, Credit Card
    Contact Now
    Detailed Product Description
    Material: SS316L/SS304 SIZE: 1/2" Inch - 6 Inch
    Stanadard: DIN, 3A, SMS, ISO Connection: Welded, Clamped, Thread, Flange
    Polishing: Mirror Polishing, Matt Polishing Surface Treatment: Operated By CNC Lathe
    Feature: With Stainless Steel Protective Cover
    High Light:

    SS304 Sleeve Tubular Sight Glass

    ,

    ISO Tubular Sight Glass

    ,

    CNC Lathe Tubular Sight Glass

    2" Tri clamp Tubular stainless steel sight glass with SS304 protective sleeve



    Quick Detail

    Sight glass, Tube sight glass





    Size:1/2"-6"  ,DN10- DN150

    Type:  Manual operation

    Gasket: EPDM /NBR, FPME according FDA 177.1600

    Max pressure :10bar

    Max Temperature:-10°C to 120°C

    Assemble flange with glass by using hexagon socket boltes

    Glass: Tempered glass

    Protective sleeve: AISI304

    Surface Treatment: CNS Lathe



    Specification

    Product Name:

    2" Tri clamp Tubular stainless steel sight glass with SS304 protective sleeve

    Valve Body Material:

    SS304/SS316L/1.4301/1.4404

    Seal Material:

    EPDM,FPM,SILICON,etc

    Sight glass:

    tempered glass

    Max.temperature:

    -10 to 120 degree

    Gasket

    NBR, EPDM, FPM in accordance with FDA 177.2600

    Available connection:

    Clamp, Thread, weld, Flange

    Available standard:

    DIN, SMS, 3A, ISO

    Certification:

    3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008

    Application scope:

    Dairy, food, beverage, pharmacy, cosmetic, etc

    Feature:

    For full angle observation

    Advantage:

    Precise observation on flow

    Packaging Details:

    Plywood case or customerized. Or as per the request of customers

    Delivery details:

    10-20 days



    Application
    A tubular sight glass is comprised of stianless steel fram and glass, through it, operator can observe the flowing of the liquid substance clearly and precisely in the fields of foods, comestic, pharmaceutical and fine chemicals industries.


    Features
    Full bore Design
    360degree viewing angle
    Can be used in vertical or horizontal position



    Drawing of sight glass

    2" Tri Clamp Tubular Stainless Steel Sight Glass With SS304 Protective Sleeve 0

    2" Tri Clamp Tubular Stainless Steel Sight Glass With SS304 Protective Sleeve 1


    Packaging
    Plywood case or customerized.
    Or as per the request of customer


    Delivery
    Normally, 10-20 days



    Sight glass , Sanitary sight glass, Donjoy sight glass
